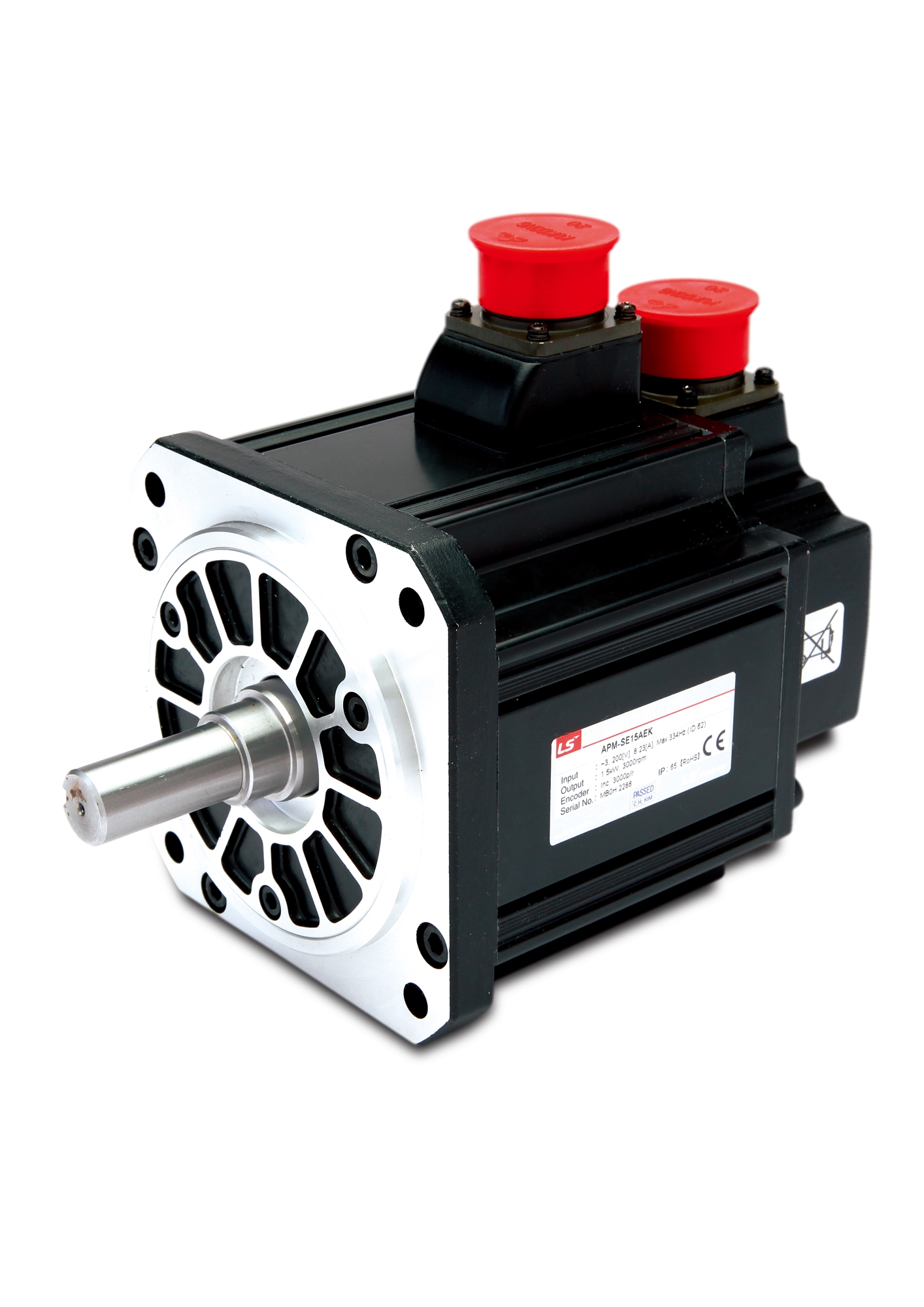

LS Mecapion: 130 Flange, 3ϕ 220VAC/400VDC, F type motor With Optical Absolute Encoder ,Without Brake

Alternate View

Price: (Members Only)

Availability: Usually Ships in 4 to 6 Weeks
Order #: F-TYPE-130FLANGE-WITHOUT-BRAKE

Model No.:

Qty:

Description

Ordering Information

Specifications and Drawings

LS Mecapion: Solid Shaft Servo Motor (F-Type)

Specifications:

F type motor With Biss-C 19 bits single-turn/18bits muti- turn Optical Absolute Encoder(Except 5-150w) 3ϕ 220VAC/400VDC,Without Brake
Flange	Part Number	Old Part Number	Power(w)	Speed(rpm)	Encoder	Price(USD)
□130	APM-FE09AMK	XML-FE09AMKE	900	3000	19BIT(M)	$689.50
□130	APM-FE15AMK	XML-FE15AMKE	1500	3000	19BIT(M)	$776.00
□130	APM-FE22AMK	XML-FE22AMKE	220	3000	19BIT(M)	$838.50
□130	APM-FE30AMK	XML-FE30AMKE	3000	3000	19BIT(M)	$867.50
□130	APM-FE06DMK	XML-FE06DMKE	600	2000	19BIT(M)	$720.00
□130	APM-FE11DMK	XML-FE11DMKE	1100	2000	19BIT(M)	$867.00
□130	APM-FE16DMK	XML-FE16DMKE	1600	2000	19BIT(M)	$916.00
□130	APM-FE22DMK	XML-FE22DMKE	2200	2000	19BIT(M)	$952.50
□130	APM-FE05GMK	XML-FE05GMKE	500	1500	19BIT(M)	$852.00
□130	APM-FE09GMK	XML-FE09GMKE	900	1500	19BIT(M)	$862.00
□130	APM-FE13GMK	XML-FE13GMKE	1300	1500	19BIT(M)	$916.00
□130	APM-FE17GMK	XML-FE17GMKE	1700	1500	19BIT(M)	$951.50
□130	APM-FE03MMK	XML-FE03MMKE	300	1000	19BIT(M)	$821.00
□130	APM-FE06MMK	XML-FE06MMKE	600	1000	19BIT(M)	$875.50
□130	APM-FE09MMK	XML-FE09MMKE	900	1000	19BIT(M)	$927.00
□130	APM-FE12MMK	XML-FE12MMKE	1200	1000	19BIT(M)	$966.50

Support Links
2D/3D Drawing Download
