LS Mecapion: 180 Flange, 3ϕ 220VAC/400VDC, F type motor With Optical Absolute Encoder ,Without Brake

Alternate View

Price: (Members Only)

Availability: Usually Ships in 4 to 6 Weeks
Order #: F-TYPE-180FLANGE-WITHOUT-BRAKE

Model No.:

Qty:

Description

Ordering Information

Specifications and Drawings

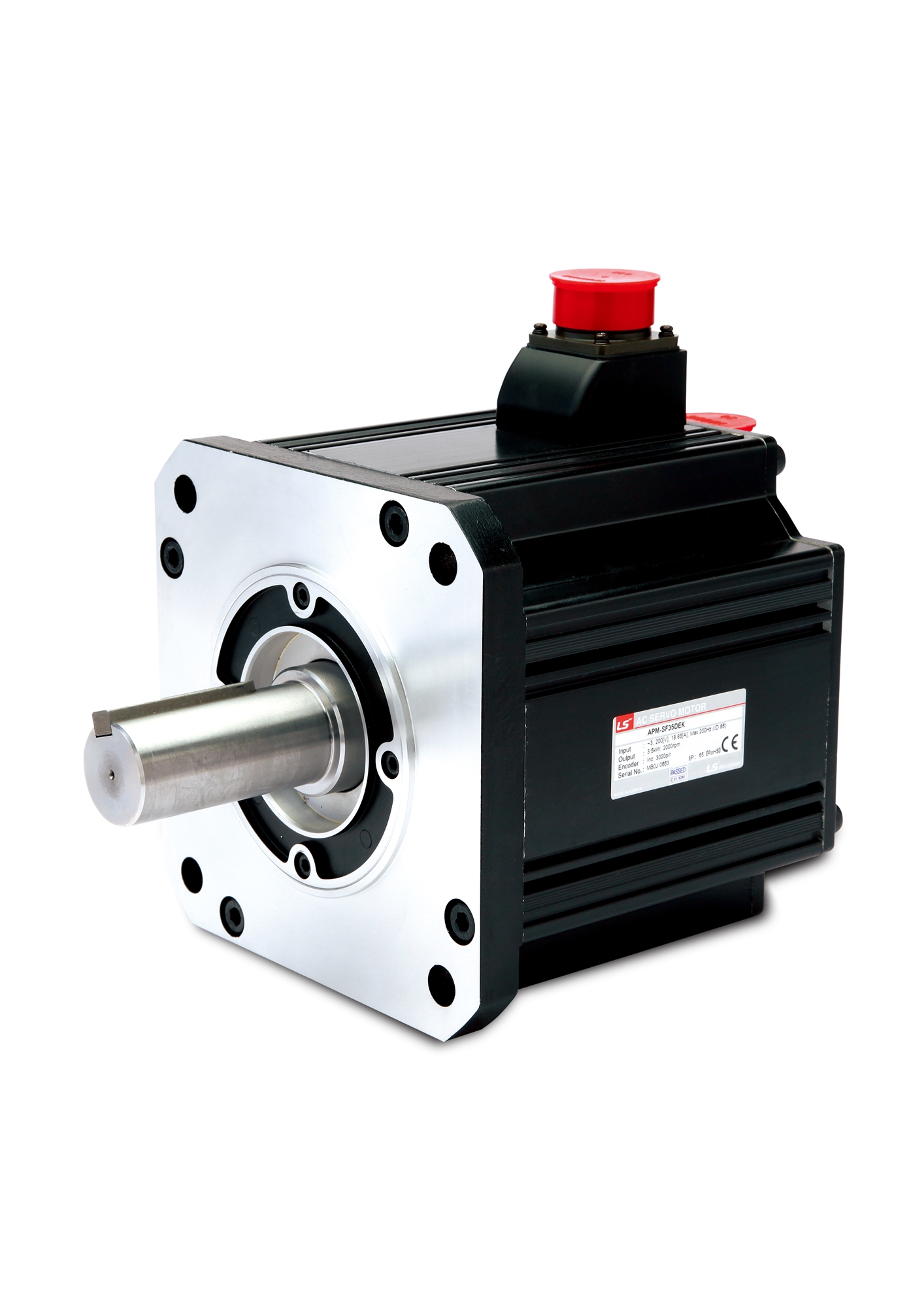

LS Mecapion: Solid Shaft Servo Motor (F-Type)

Specifications:

F type motor With Biss-C 19 bits single-turn/18bits muti- turn Optical Absolute Encoder(Except 5-150w) 3ϕ 220VAC/400VDC,Without Brake
Flange	Part Number	Old Part Number	Power(w)	Speed(rpm)	Encoder	Price(USD)
□180	APM-FF30AMK	XML-FF30AMKE	3000	3000	19BIT(M)	$1200.00
□180	APM-FF50AMK	XML-FF50AMKE	5000	3000	19BIT(M)	$1400.50
□180	APM-FF22DMK	XML-FF22DMKE	2200	2000	19BIT(M)	$1220.50
□180	APM-FF35DMK	XML-FF35DMKE	3500	2000	19BIT(M)	$1600.00
□180	APM-FF55DMK	XML-FF55DMKE	5500	2000	19BIT(M)	$1820.00
□180	APM-FF75DMK	XML-FF75DMKE	7500	2000	19BIT(M)	$1989.50
□180	APM-FF20GMK	XML-FF20GMKE	2000	1500	19BIT(M)	$1220.00
□180	APM-FF30GMK	XML-FF30GMKE	3000	1500	19BIT(M)	$1420.50
□180	APM-FF44GMK	XML-FF44GMKE	4400	1500	19BIT(M)	$1670.00
□180	APM-FF60GMK	XML-FF60GMKE	6000	1500	19BIT(M)	$2398.50
□180	APM-FF75GMK	XML-FF75GMKE	7500	1500	19BIT(M)	$2567.50
□180	APM-FF12MMK	XML-FF12MMKE	1200	1000	19BIT(M)	$1345.00
□180	APM-FF20MMK	XML-FF20MMKE	2000	1000	19BIT(M)	$1453.50
□180	APM-FF30MMK	XML-FF30MMKE	3000	1000	19BIT(M)	$1687.00
□180	APM-FF44MMK	XML-FF44MMKE	4400	1000	19BIT(M)	$2356.00
