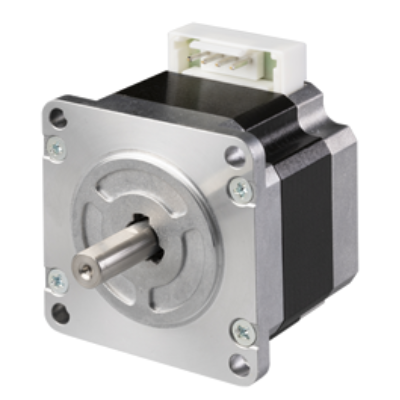

Sanyo Denki: SANMOTION 2-Phase Stepper
Motors 56 mm sq. (SM256 Bipolar Series)
The new NEMA 23
Stepper Motors from Sanyo Denki were developed with high torque, low noise, and
energy saving in mind
Flange size: 56
mm
Motor length
(motor only): 41.8, 53.8, 75.8, 85.8 mm
SANMOTION F2 56 mm
sq. 2-phase stepping motors, expanding the product lineup of the series.
The new models achieve best-in-class torque performance and high efficiency,
therefore improving machine speed and contributing to energy savings.
Features:
1. High Torque
Compared to the
original conventional model, torque performance has improved by approximately
40%.
This contributes to shortening the positioning time and machine cycle time.
2. Low Noise
These motors have
noise levels approximately 3 dB lower than the current model, reducing the
noise level of machines.
3. Energy Saving
Motor efficiency
has been improved by approximately 3% compared to the current model.
This contributes to reducing power consumption of machines and the motor’s heat
dissipation.
(1) Based on
Sanyo’s research as of May 25, 2021, conducted among equally sized industrial
2-phase stepping motors on the market.
(2) A comparison
between our current model 103H7123-5840 and new model SM2562C30B41.
Applications:
- Medical
devices
- industrial
equipment
- semiconductor
manufacturing equipment
- conveying
machines
- index table driving
Model No.:
SM2561C10B41, SM2561C20B41, SM2561C30B41, SM2561C40B41, SM2561C60B41, SM2562C10B41, SM2562C20B41, SM2562C30B41, SM2562C40B41, SM2562C60B41, SM2563C10B41, SM2563C20B41, SM2563C30B41, SM2563C40B41, SM2563C60B41, SM2564C10B41, SM2564C20B41, SM2564C30B41, SM2564C40B41, SM2564C60B41, SM2561C10B11, SM2561C20B11, SM2561C30B11, SM2561C40B11, SM2561C60B11, SM2562C10B11, SM2562C20B11, SM2562C30B11, SM2562C40B11, SM2562C60B11, SM2563C10B11, SM2563C20B11, SM2563C30B11, SM2563C40B11, SM2563C60B11, SM2564C10B11, SM2564C20B11, SM2564C30B11, SM2564C40B11, SM2564C60B11
