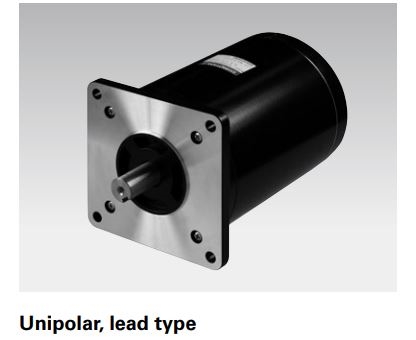

Sanyo Denki SANMOTION: 2-Phase Stepping Motors φ106 (103H892 Series)
Sanyo Denki SANMOTION: 2-Phase Stepping Motors  φ106  (103H892 Series)

Alternate View



Price: (Members Only)

Quantity in Stock:5

Availability: Products with marked prices are in stock, please confirm with us before placing an order
Order #: 103H892


Model No.:


Qty:
Description Specifications and Drawings

Sanyo Denki SANMOTION: 2-Phase Stepping Motors φ106 (103H892 Series)
SANMOTION F2
Basic step angle: 1.8°
Includes a driver and a high torque motor for a DC input set model bipolar specifications with a basic step angle of 1.8°, and covers a wide variety of applications, including industrial sewing machines, financial terminals, copiers and manufacturing equipment for semiconductors.
Features:
  • Low vibration: This driver features approximately 10% less vibration compared with our conventional product (when used with an AC input driver). Also, a low-vibration mode function provides smooth driving, even with one-division (full-step) and two-division (half-step) coarse resolution settings. This allows vibrations to be suppressed without control system restrictions.
  • Settings possible with setup software: Setup software can be used with a personal computer to adjust control parameters, or to analyze alarms and operation status.
  • Micro-step drive: The basic step angle of 1.8° can be set to a resolution of up to 256 divisions (for AC input) or 16 divisions (for DC input). This allows for smooth operations with minimal vibrations.
  • Handles a wide range of voltages: A wide range of input voltages can be handled, from 100 to 240 VAC*. This makes it possible to use the device in many different countries and regions. Also, the input voltage is automatically detected and the optimal motor characteristics are used for control. *The 42 mm sq. (1.65 inch sq.) motor model only supports 100 to 120 VAC.
  • Compact size: This driver features a 24% reduction in volume compared with our conventional product. This makes it easier to use in places where the setup space is limited.
  • Multiple options: A 4000 P/R high-resolution encoder, and a motor with electromagnetic brake are available as options. The switch timing for motors with an electromagnetic brake is controlled automatically. An external power supply for the brake is unnecessary.
  • Analysis function and device startup support (option): Using an optional encoder with the motor makes it possible to monitor information such as the current position and speed. It simplifies determining causes of vibration and step-out.
Applications:
  • Machine tools
  • Semiconductor-related devices
  • Food-related equipment
  • Industrial sewing machines.

Model No.: 103H89222-0911, 103H89222-0941, 103H89222-5211, 103H89222-5241, 103H89223-0911, 103H89223-0941, 103H89223-5211, 103H89223-5241
