220 Flange,absolute encoder,without brake

Home > Brands > LS Mecapion >

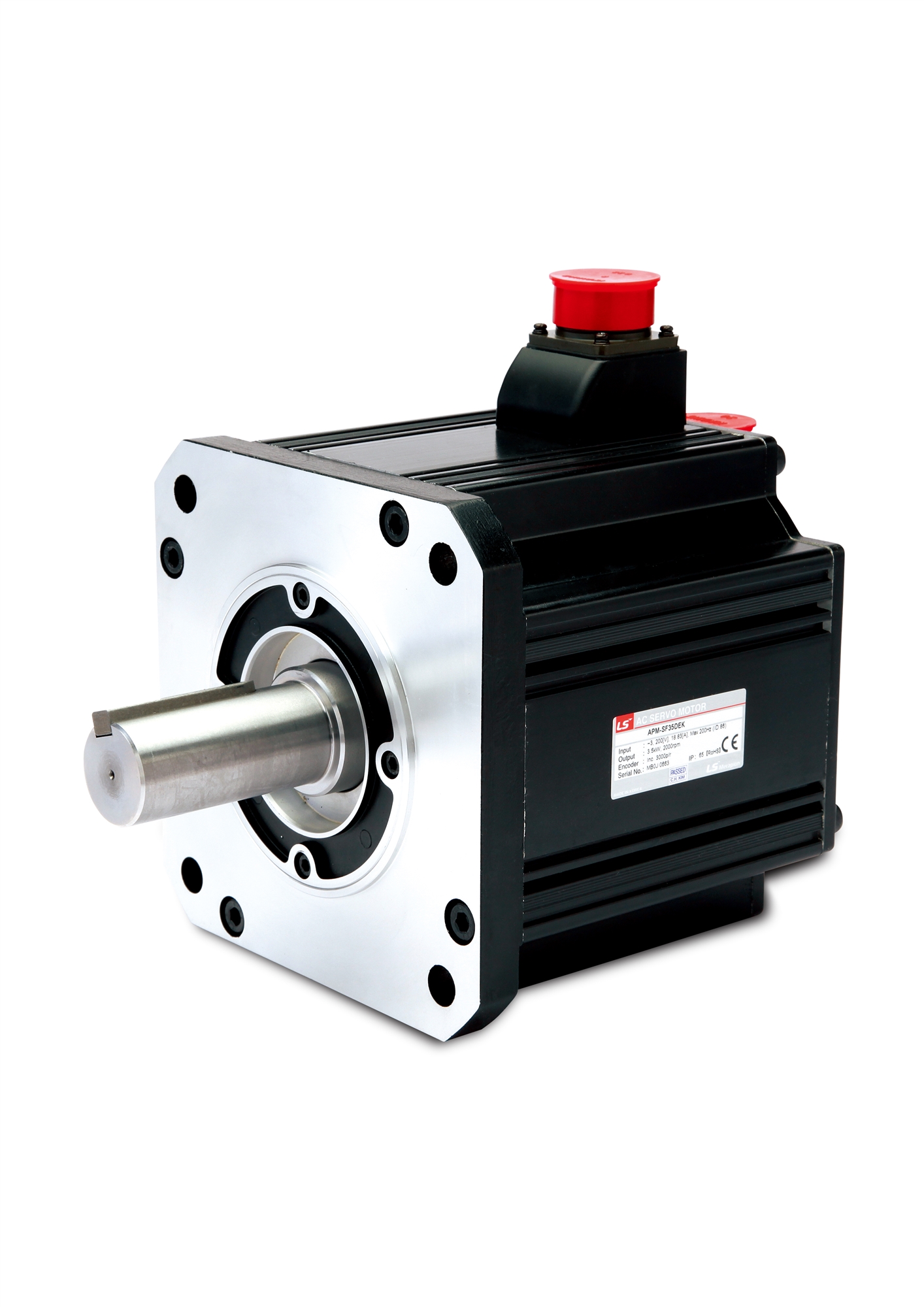

LS Mecapion: 220 Flange, 3ϕ 220VAC/400VDC, F type motor With Optical Absolute Encoder ,Without Brake

Alternate View

Price: (Members Only)

Availability: Usually Ships in 4 to 6 Weeks
Order #: F-TYPE-220FLANGE-WITHOUT-BRAKE

Model No.:

Qty:

Description

Ordering Information

Specifications and Drawings

LS Mecapion: Solid Shaft Servo Motor (F-Type)

Specifications:

F type motor With Biss-C 19 bits single-turn/18bits muti- turn Optical Absolute Encoder(Except 5-150w)

3ϕ 220VAC/400VDC,Without Brake

Flange	Part Number	Old Part NUmber	Power(w)	Speed(rpm)	Encoder	Price(USD)
□220	APM-FG22DMK	XML-FG22DMKE	2200	2000	19BIT(M)	$1802.00
□220	APM-FG35DMK	XML-FG35DMKE	3500	2000	19BIT(M)	$1925.00
□220	APM-FG55DMK	XML-FG55DMKE	5500	2000	19BIT(M)	$2287.00
□220	APM-FG75DMK	XML-FG75DMKE	7500	2000	19BIT(M)	$2720.00
□220	APM-FG110DMK	XML-FG110DMKE	11000	2000	19BIT(M)	$3286.50
□220	APM-FG20GMK	XML-FG20GMKE	2000	1500	19BIT(M)	$1822.00
□220	APM-FG30GMK	XML-FG30GMKE	3000	1500	19BIT(M)	$1956.50
□220	APM-FG44GMK	XML-FG44GMKE	4400	1500	19BIT(M)	$2387.00
□220	APM-FG60GMK	XML-FG60GMKE	6000	1500	19BIT(M)	$2911.00
□220	APM-FG85GMK	XML-FG85GMKE	8500	1500	19BIT(M)	$4234.50
□220	APM-FG110GMK	XML-FG110GMKE	11000	1500	19BIT(M)	$4676.50
□220	APM-FG150GMK	XML-FG150GMKE	15000	1500	19BIT(M)	$5297.00
□220	APM-FG12MMK	XML-FG12MMKE	1200	1000	19BIT(M)	$1878.00
□220	APM-FG20MMK	XML-FG20MMKE	2000	1000	19BIT(M)	$1943.00
□220	APM-FG30MMK	XML-FG30MMKE	3000	1000	19BIT(M)	$2287.00
□220	APM-FG44MMK	XML-FG44MMKE	4400	1000	19BIT(M)	$2413.50
□220	APM-FG60MMK	XML-FG60MMKE	6000	1000	19BIT(M)	$2968.50
