380VAC,130 Flange,absolute encoder,with brake

Home > Brands > LS Mecapion >

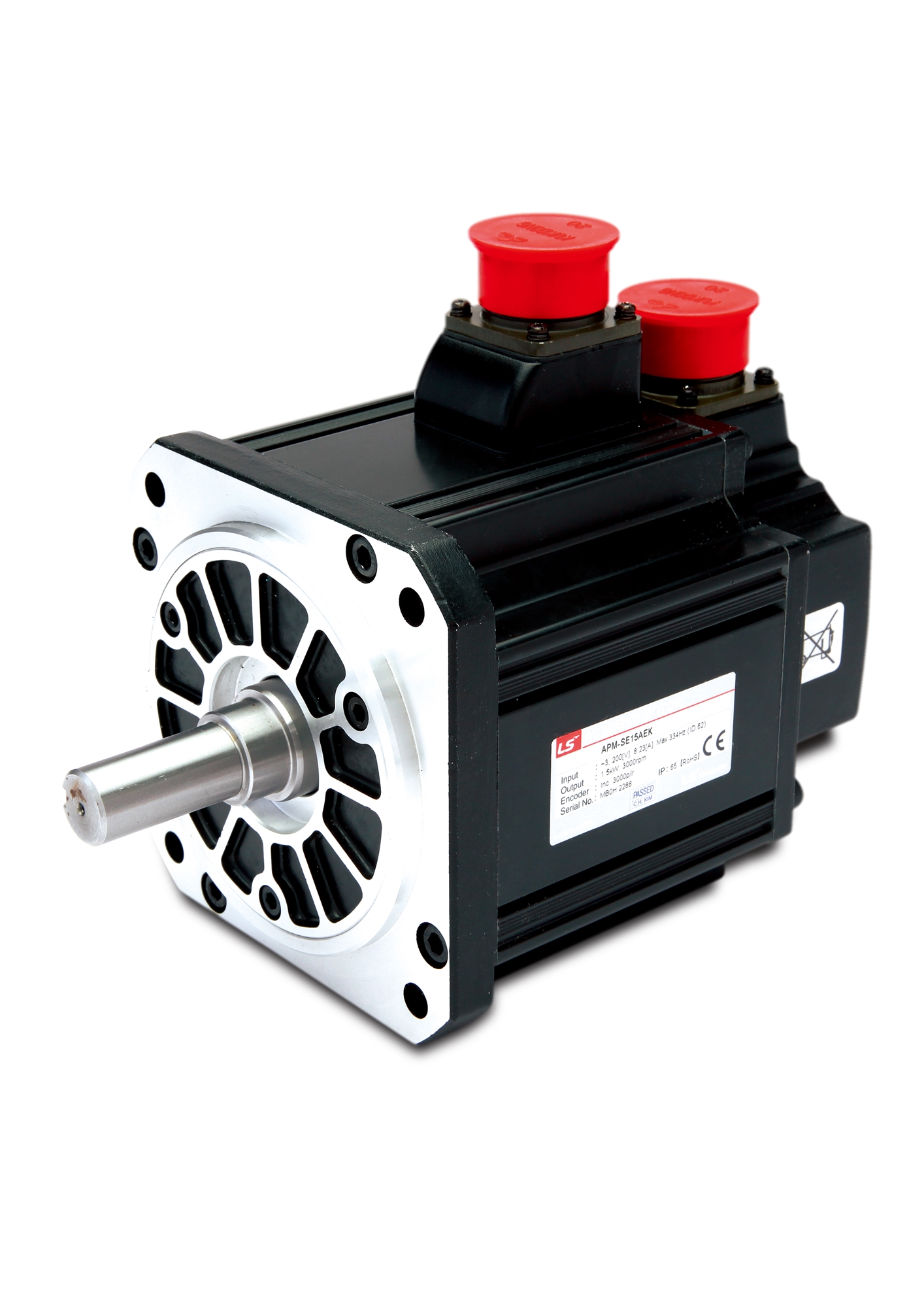

LS Mecapion: 130 Flange, 3ϕ 380VAC/600VDC, F type motor With Optical Absolute Encoder ,With Brake

Alternate View

Price: (Members Only)

Availability: Usually Ships in 4 to 6 Weeks
Order #: 380VAC-130FLANGE-WITH-BRAKE

Model No.:

Qty:

Description

Ordering Information

Specifications and Drawings

LS Mecapion: Solid Shaft Servo Motor (F-Type)

Specifications:

F type motor With Biss-C 19 bits single-turn/18bits muti- turn Optical Absolute Encoder(Except 5-150w)

3ϕ 380VAC/600VDC,With Brake

Flange

Part Number

Old Part Number

Power(w)

Speed(rpm)

Encoder

Price(USD)

□130	APM-FEP09AMK2	XML-FEP09AMK2E	900	3000	19BIT(M)	$1100.50
□130	APM-FEP15AMK2	XML-FEP15AMK2E	1500	3000	19BIT(M)	$1321.00
□130	APM-FEP22AMK2	XML-FEP22AMK2E	2200	3000	19BIT(M)	$1432.00
□130	APM-FEP30AMK2	XML-FEP30AMK2E	3000	3000	19BIT(M)	$1543.00
□130	APM-FEP06DMK2	XML-FEP06DMK2E	600	2000	19BIT(M)	$1321.00
□130	APM-FEP11DMK2	XML-FEP11DMK2E	1100	2000	19BIT(M)	$1392.00
□130	APM-FEP16DMK2	XML-FEP16DMK2E	1600	2000	19BIT(M)	$1434.00
□130	APM-FEP22DMK2	XML-FEP22DMK2E	2200	2000	19BIT(M)	$1489.50
□130	APM-FEP05GMK2	XML-FEP05GMK2E	500	1500	19BIT(M)	$1323.00
□130	APM-FEP09GMK2	XML-FEP09GMK2E	900	1500	19BIT(M)	$1398.00
□130	APM-FEP13GMK2	XML-FEP13GMK2E	1300	1500	19BIT(M)	$1467.00
□130	APM-FEP17GMK2	XML-FEP17GMK2E	1700	1500	19BIT(M)	$1567.50
□130	APM-FEP03MMK2	XML-FEP03MMK2E	300	1000	19BIT(M)	$1298.00
□130	APM-FEP06MMK2	XML-FEP06MMK2E	600	1000	19BIT(M)	$1387.50
□130	APM-FEP09MMK2	XML-FEP09MMK2E	900	1000	19BIT(M)	$1432.50
□130	APM-FEP12MMK2	XML-FEP12MMK2E	1200	1000	19BIT(M)	$1557.00

Support Links
2D/3D Drawing Download
