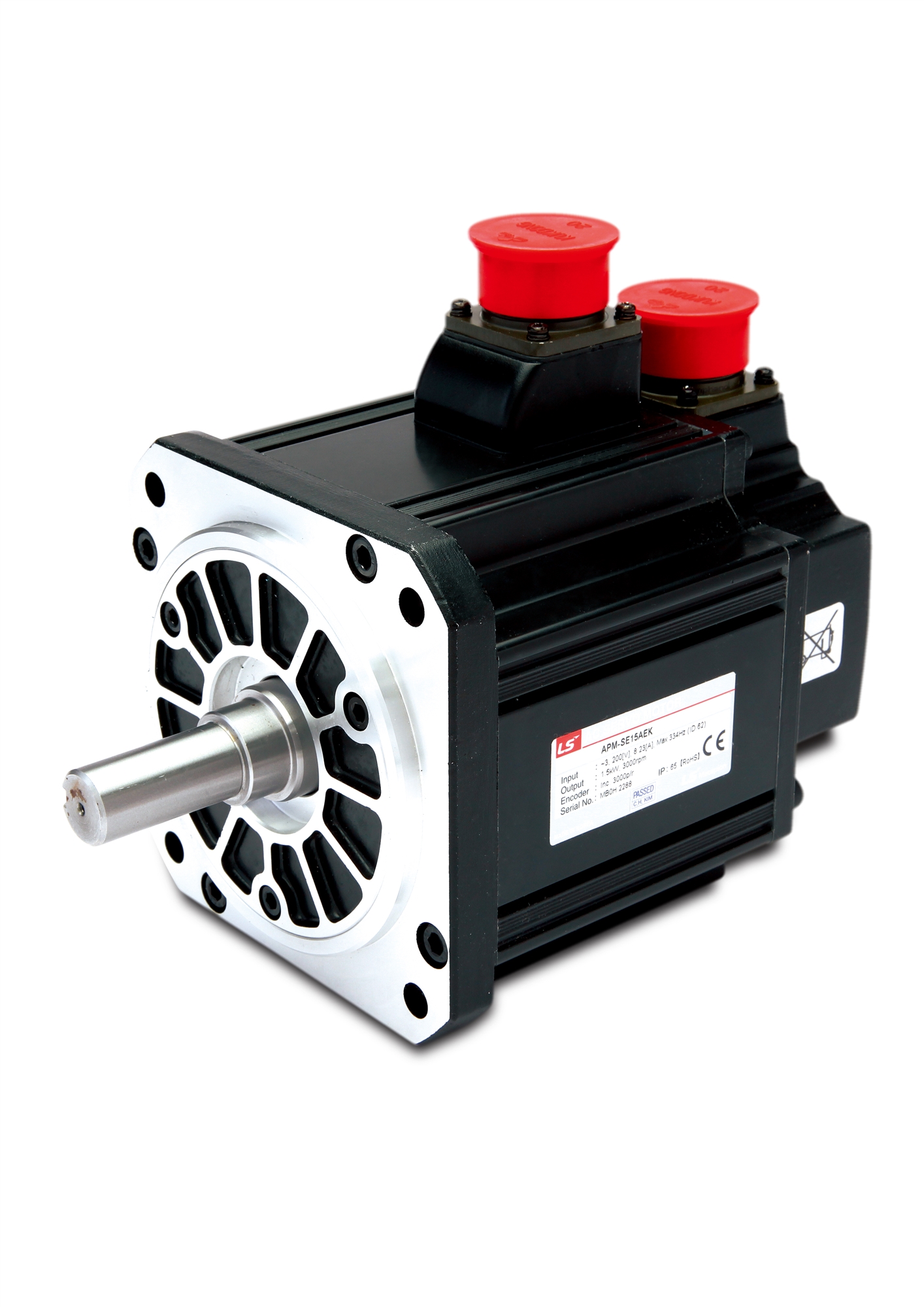

LS Mecapion: 180 Flange, 3ϕ 380VAC/600VDC, F type motor With Optical Absolute Encoder ,With Brake

Alternate View

Price: (Members Only)

Availability: Usually Ships in 4 to 6 Weeks
Order #: 380VAC-180FLANGE-WITH-BRAKE

Model No.:

Qty:

Description

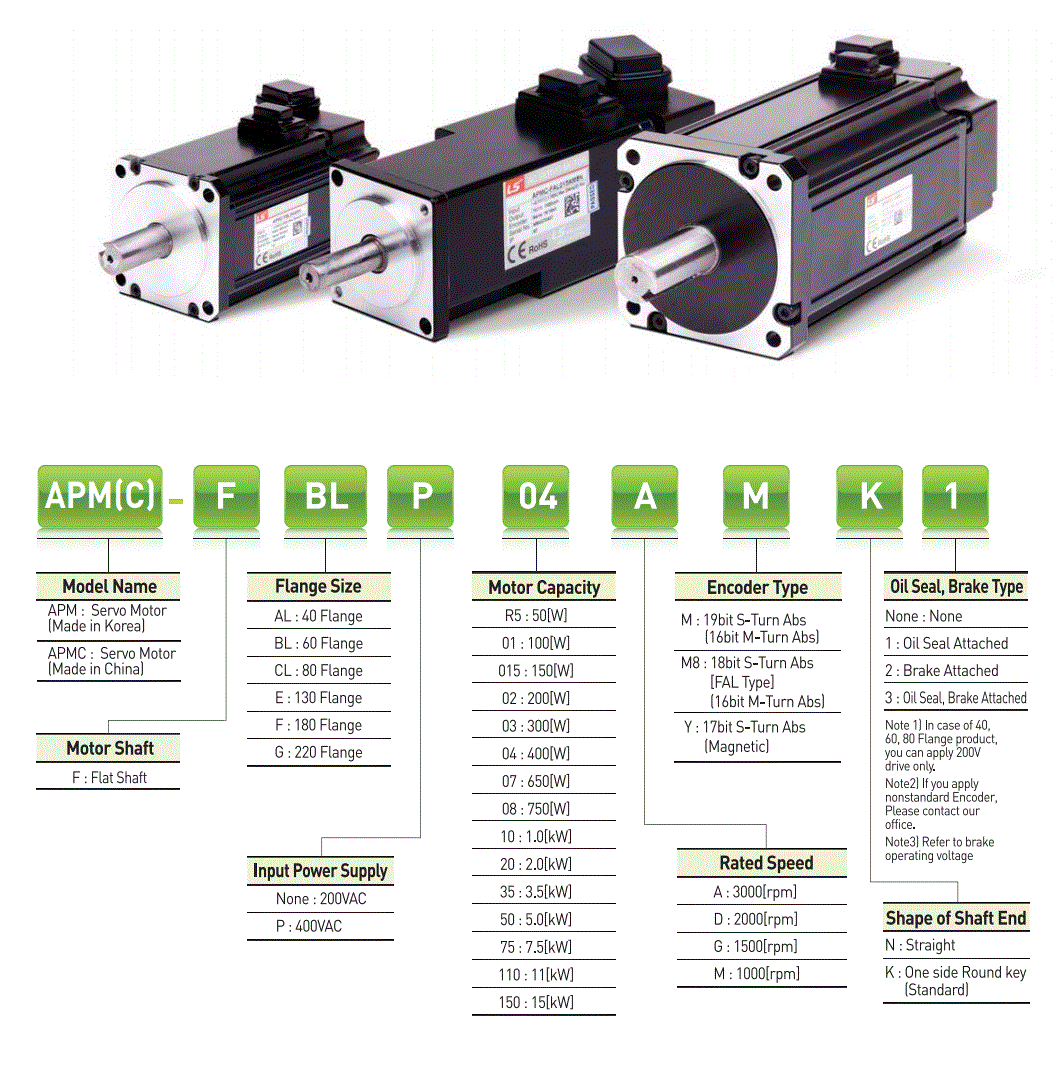

Ordering Information

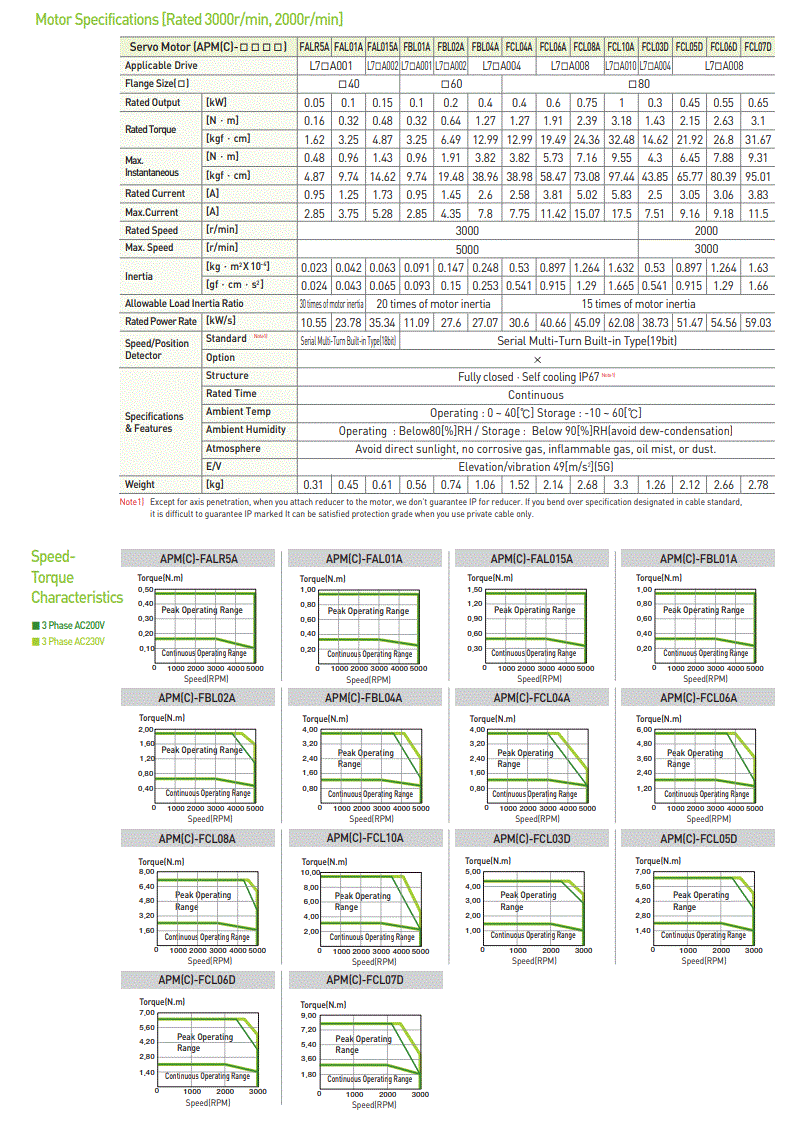

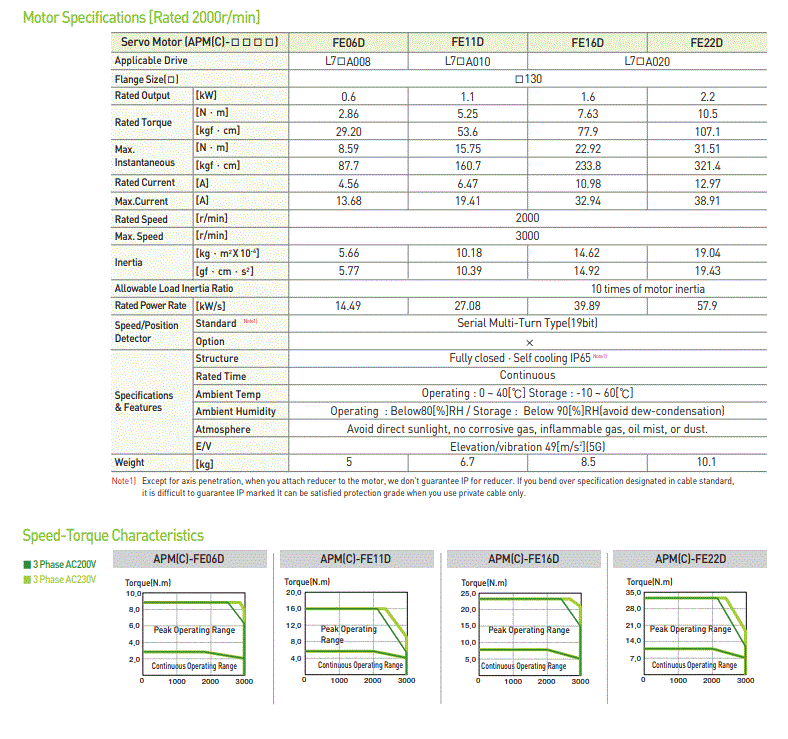

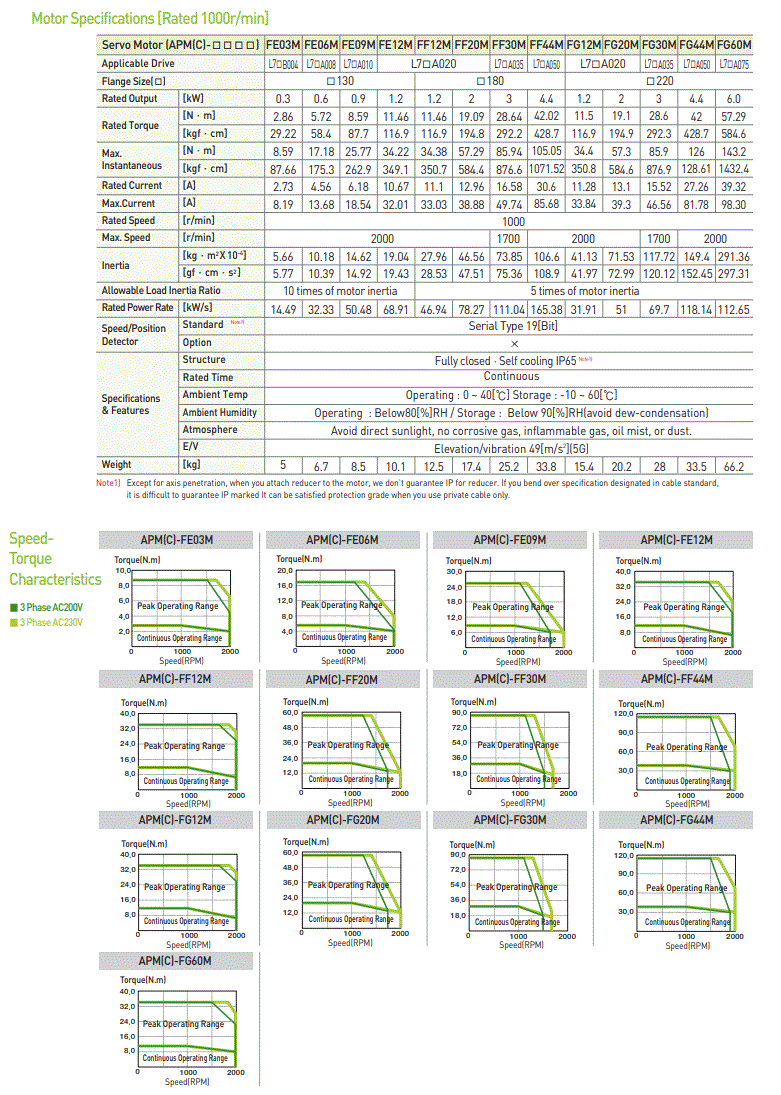

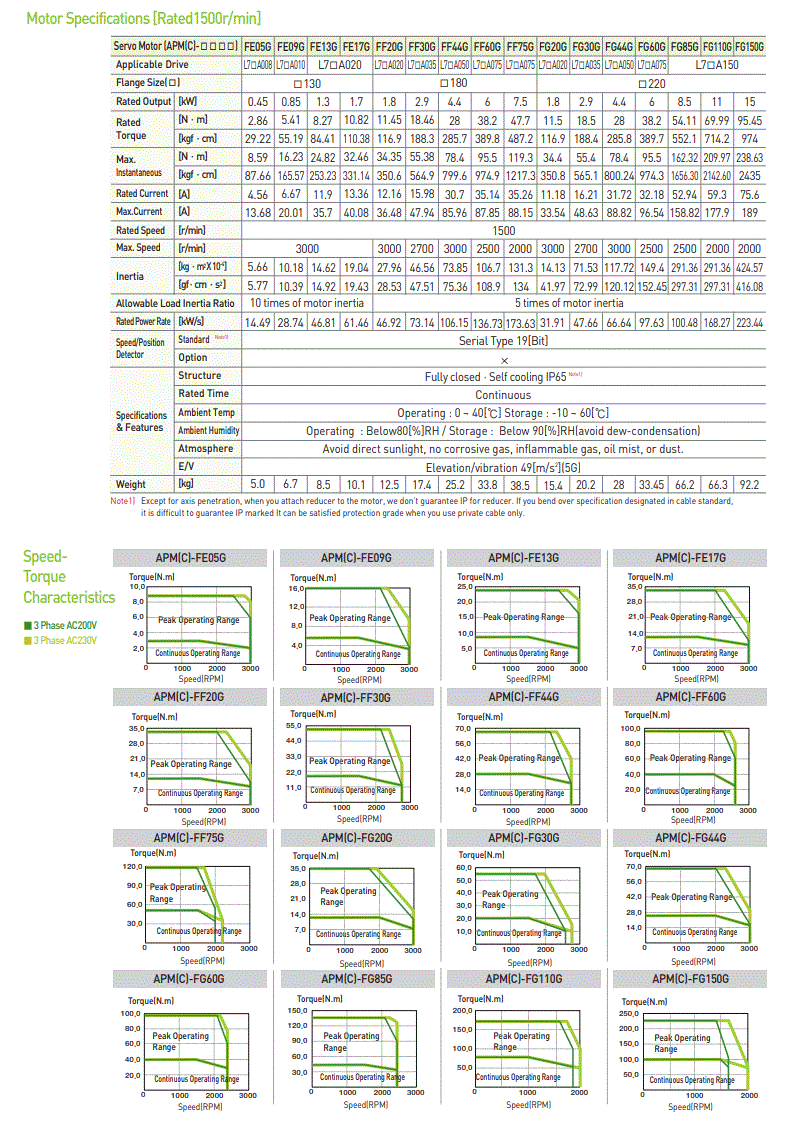

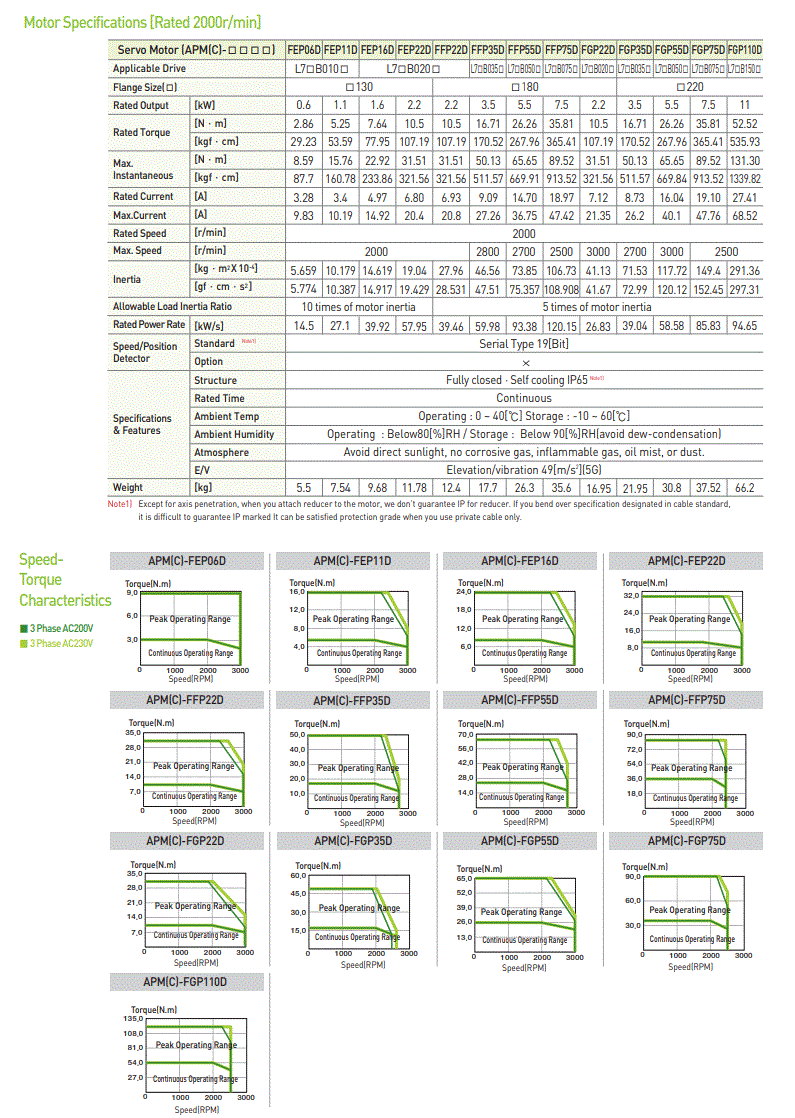

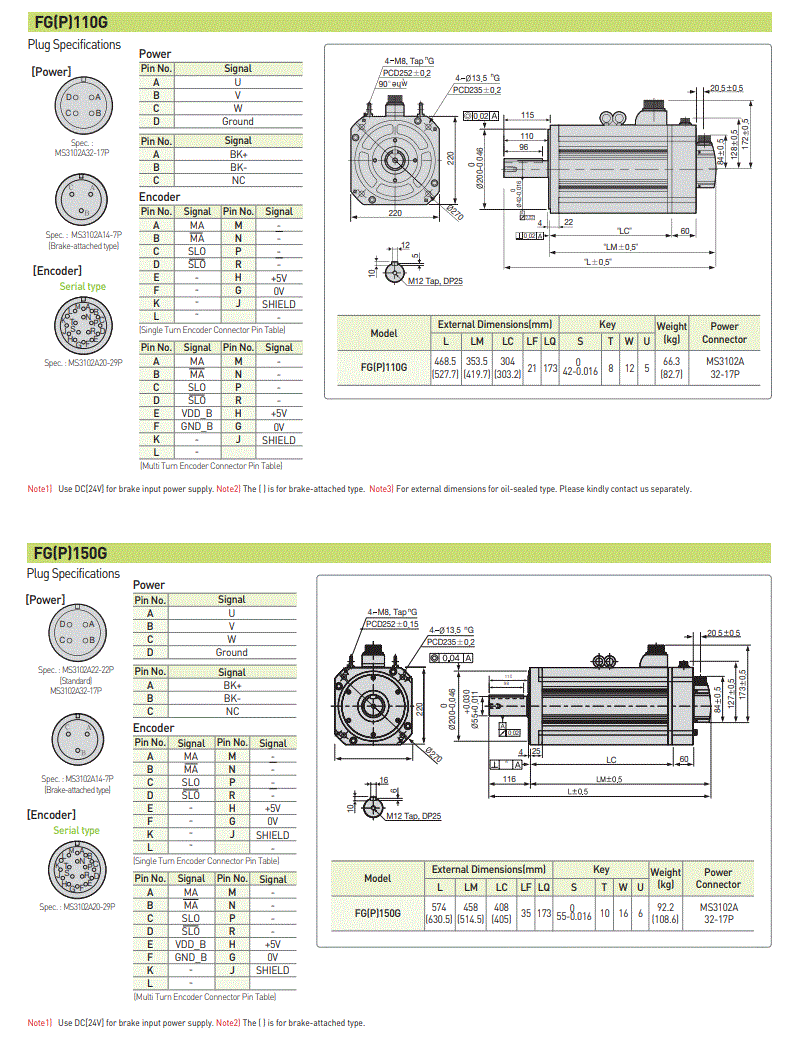

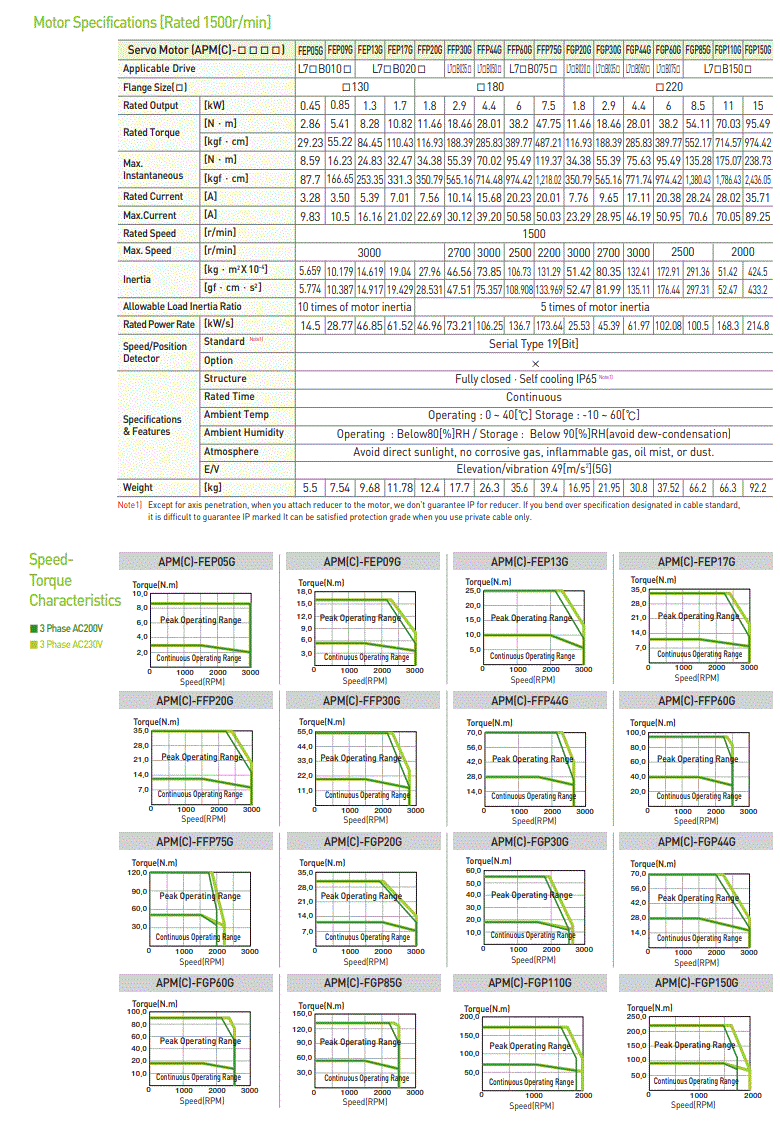

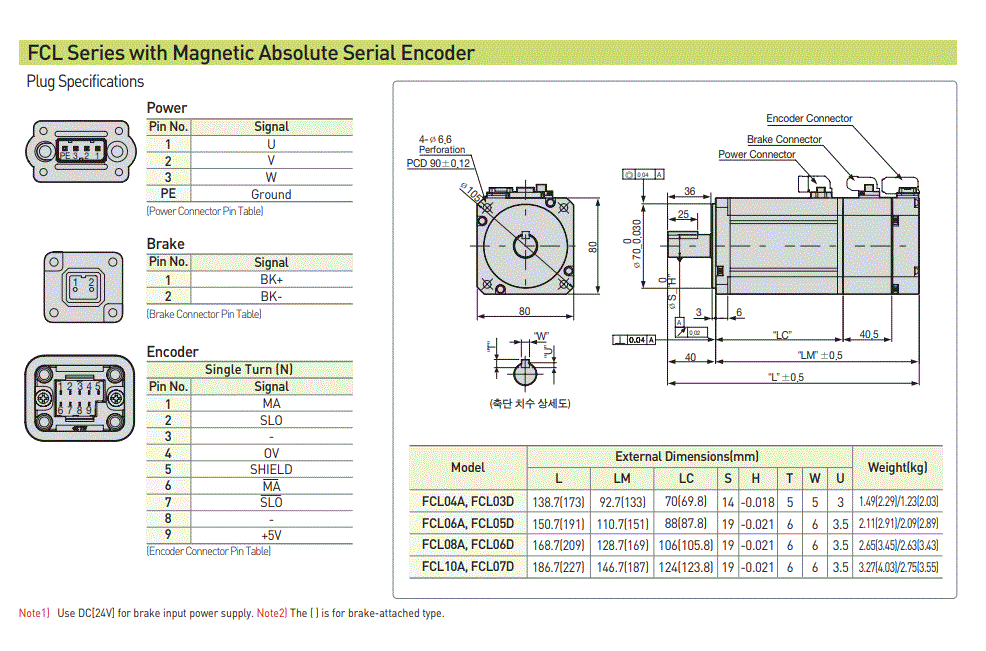

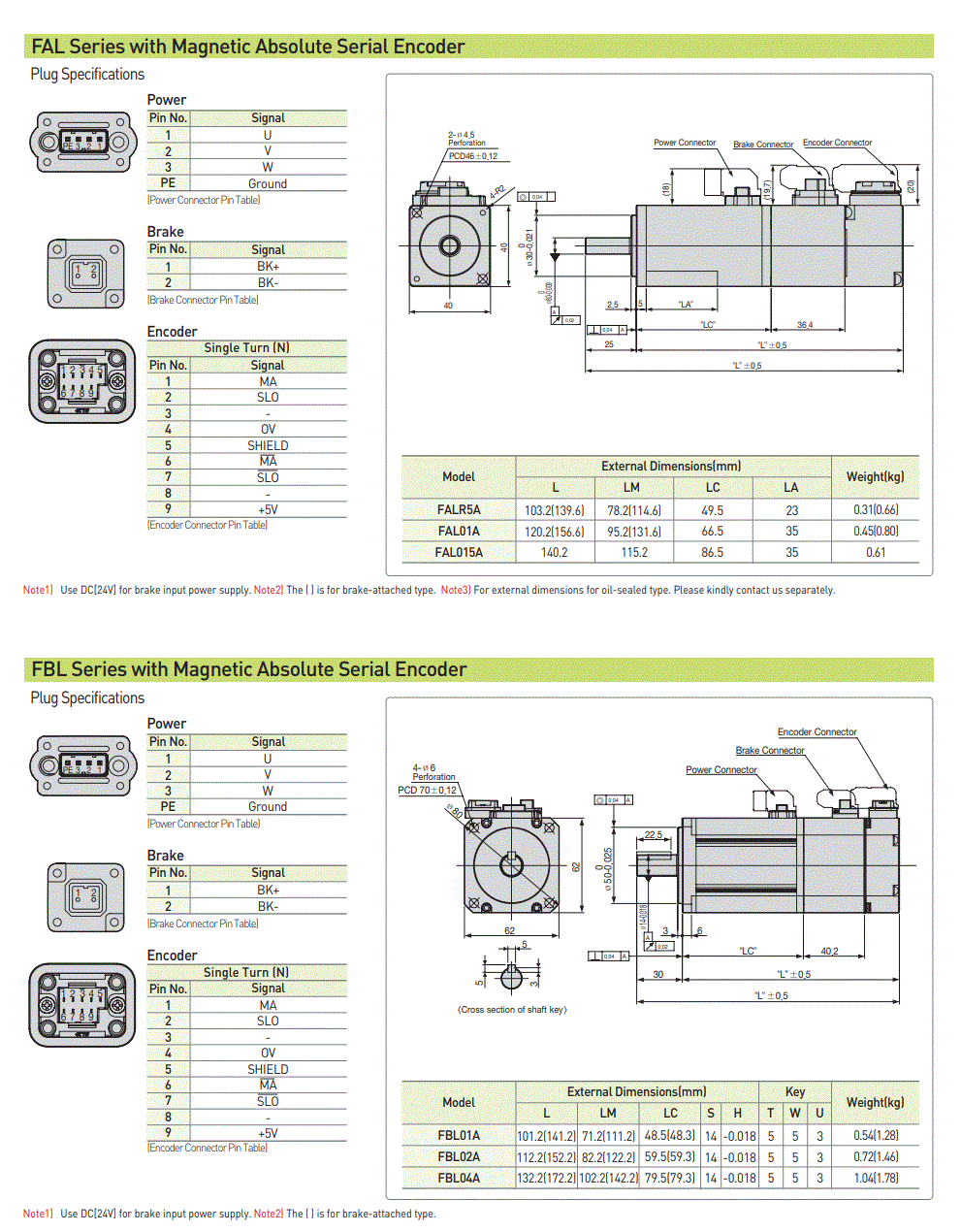

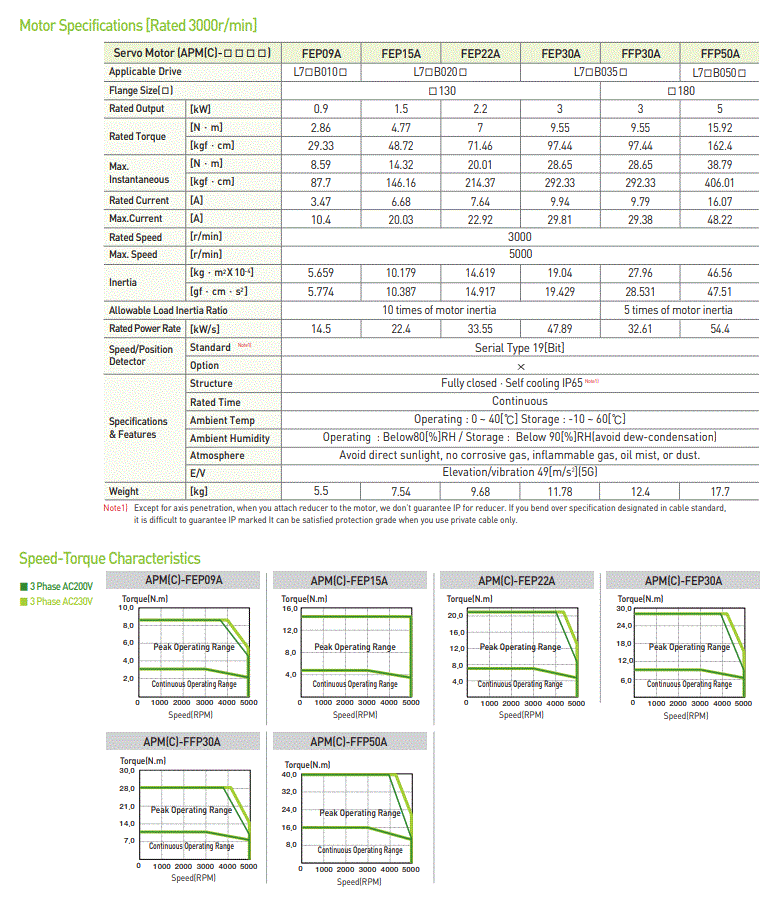

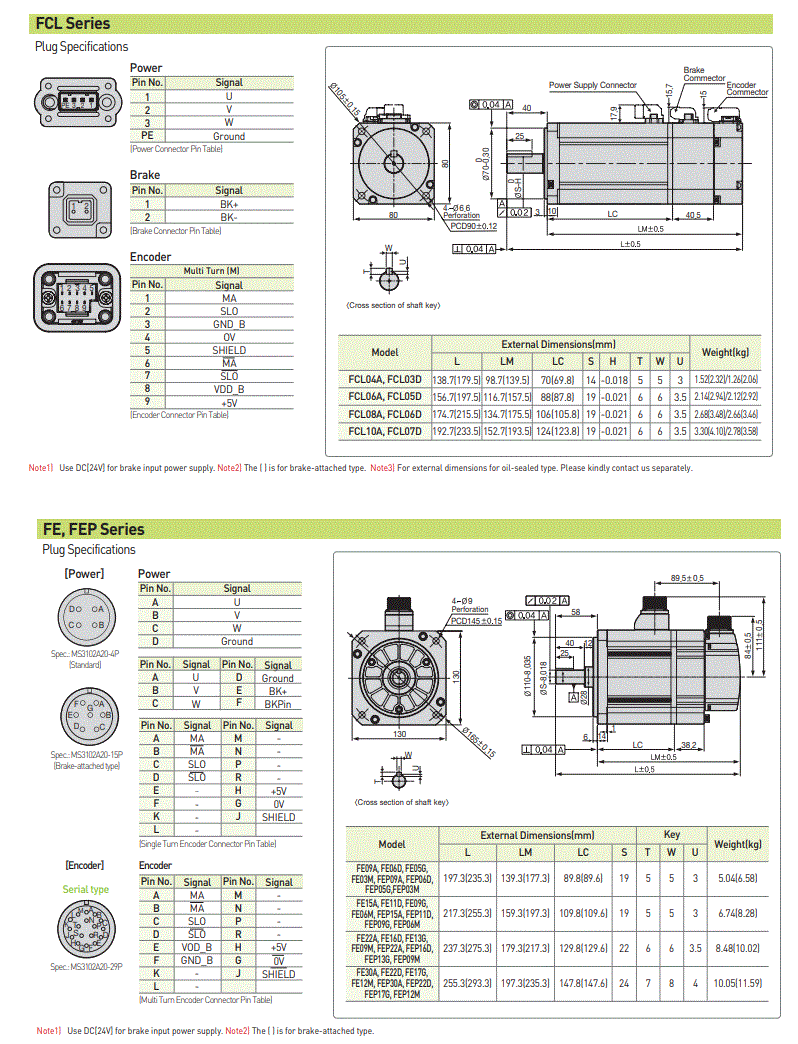

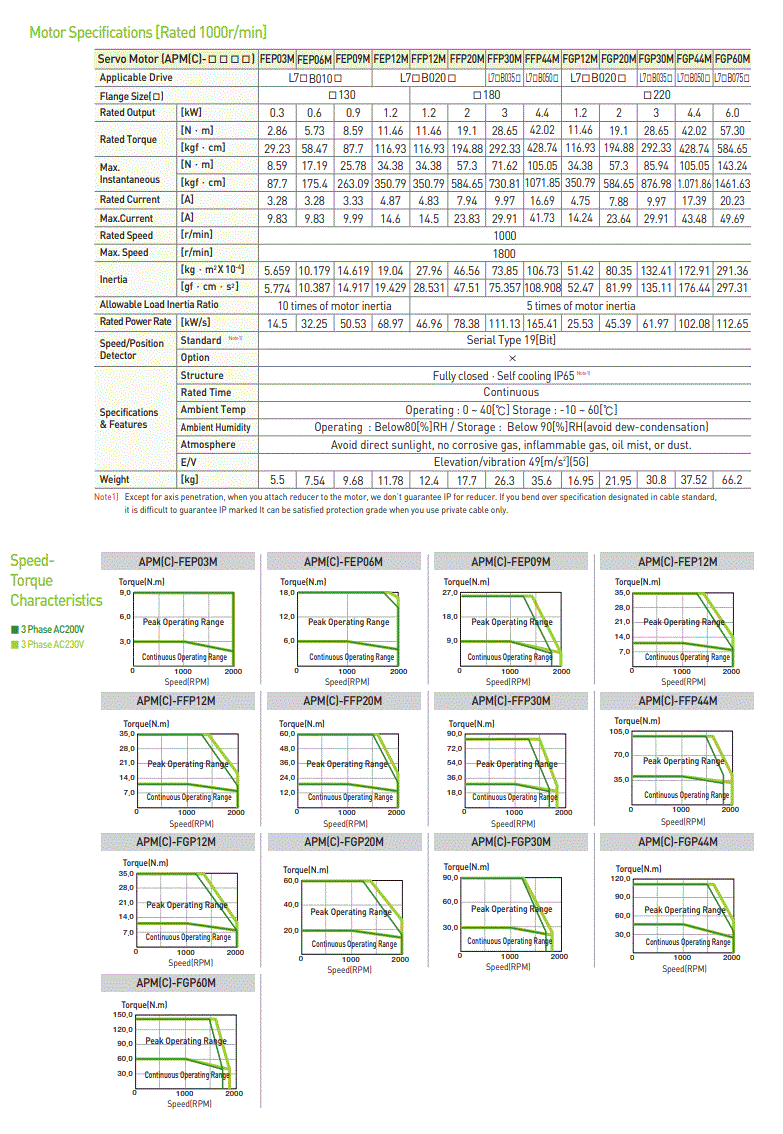

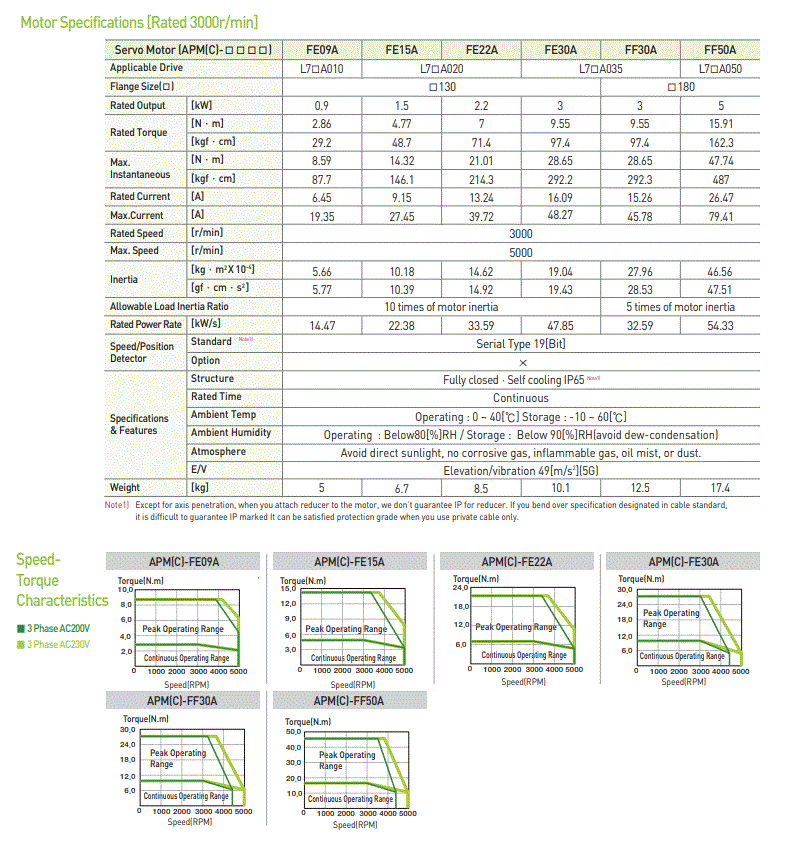

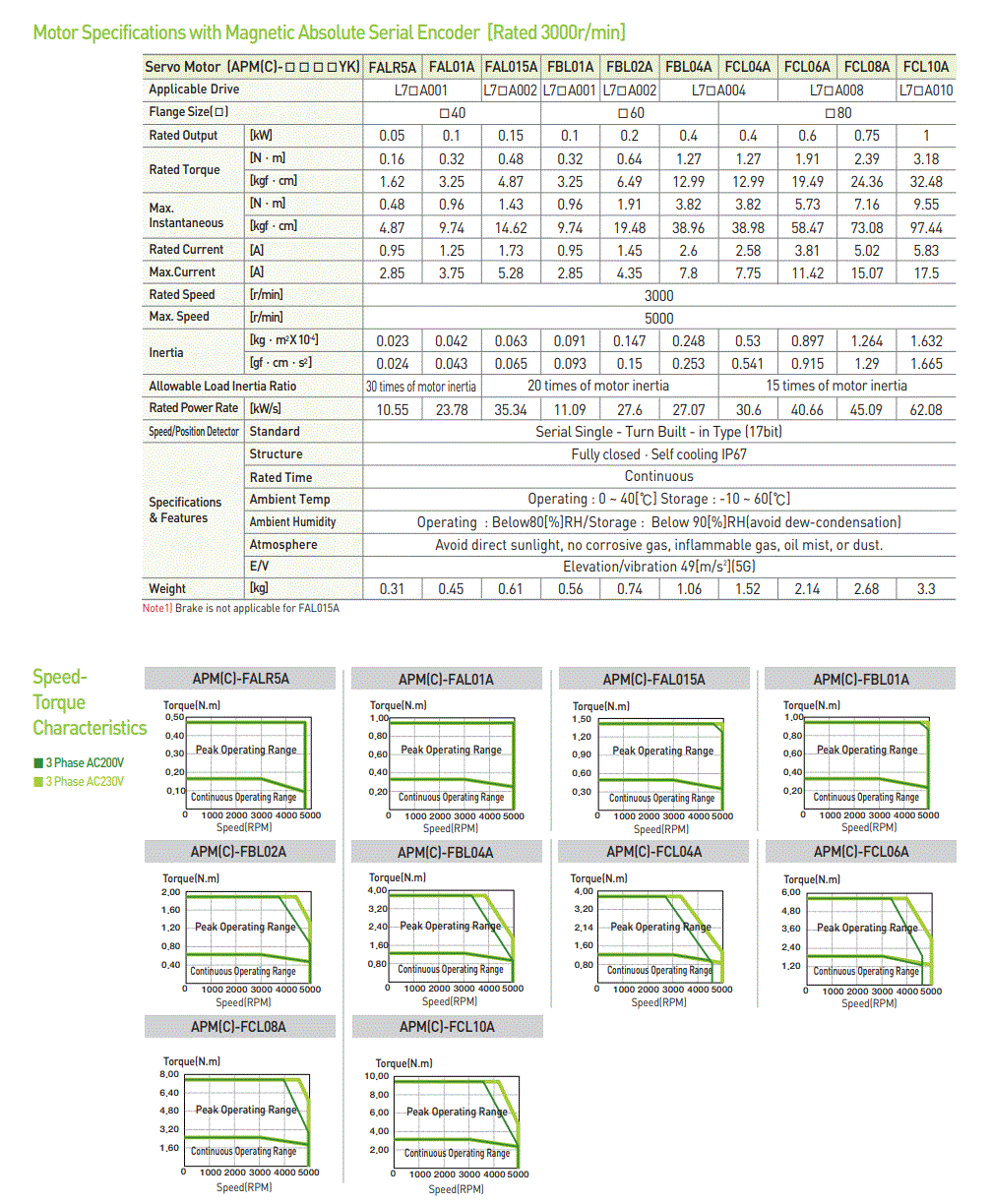

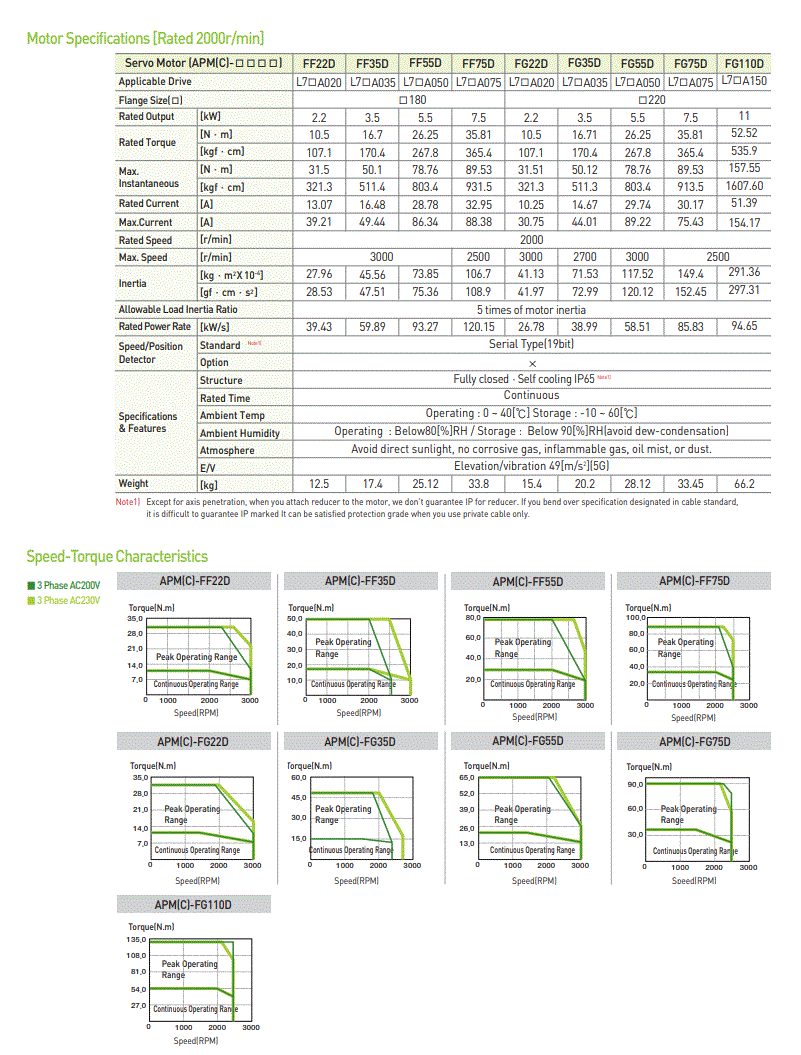

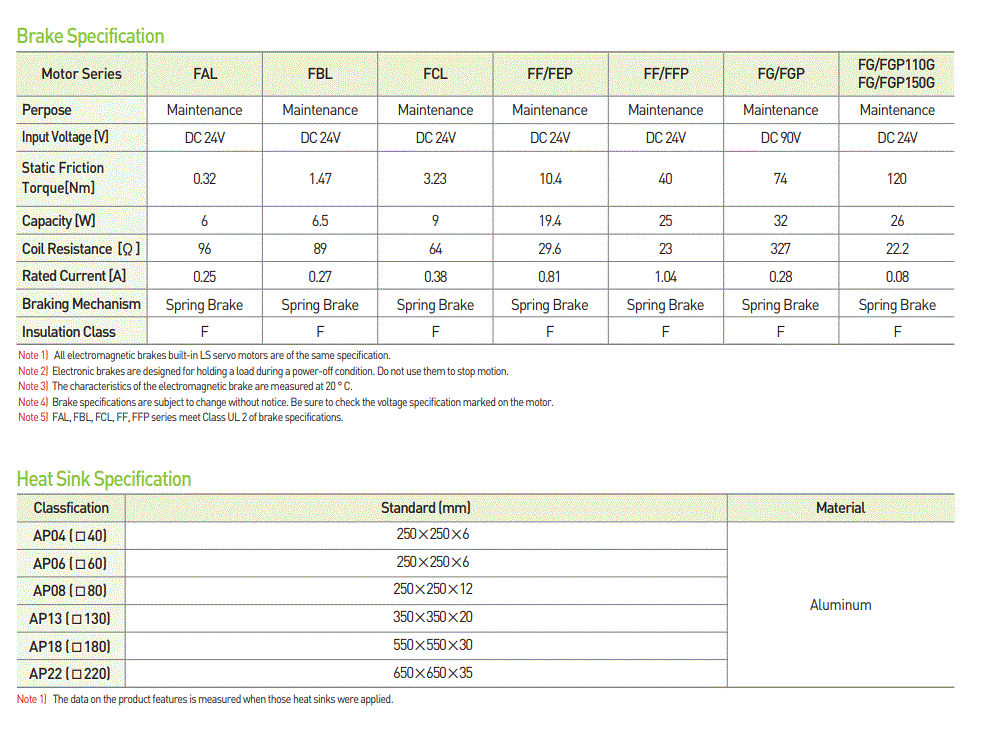

Specifications and Drawings

LS Mecapion: Solid Shaft Servo Motor (F-Type)

Specifications:

F type motor With Biss-C 19 bits single-turn/18bits muti- turn Optical Absolute Encoder(Except 5-150w)

3ϕ 380VAC/600VDC,With Brake

Flange

Part Number

Old Part Number

Power(w)

Speed(rpm)

Encoder

Price(USD)

□180	APM-FFP30AMK2	XML-FFP30AMK2E	3000	3000	19BIT(M)	$1687.50
□180	APM-FFP50AMK2	XML-FFP50AMK2E	5000	3000	19BIT(M)	$1775.00
□180	APM-FFP22DMK2	XML-FFP22DMK2E	2200	2000	19BIT(M)	$1693.00
□180	APM-FFP35DMK2	XML-FFP35DMK2E	3500	2000	19BIT(M)	$1777.00
□180	APM-FFP55DMK2	XML-FFP55DMK2E	5500	2000	19BIT(M)	$1891.50
□180	APM-FFP75DMK2	XML-FFP75DMK2E	7500	2000	19BIT(M)	$2,048.00
□180	APM-FFP20GMK2	XML-FFP20GMK2E	2000	1500	19BIT(M)	$2693.00
□180	APM-FFP30GMK2	XML-FFP30GMK2E	3000	1500	19BIT(M)	$3877.00
□180	APM-FFP44GMK2	XML-FFP44GMK2E	4400	1500	19BIT(M)	$4191.50
□180	APM-FFP60GMK2	XML-FFP60GMK2E	6000	1500	19BIT(M)	$4332.00
□180	APM-FFP12MMK2	XML-FFP12MMK2E	1200	1000	19BIT(M)	$1987.50
□180	APM-FFP20MMK2	XML-FFP20MMK2E	2000	1000	19BIT(M)	$2100.00
□180	APM-FFP30MMK2	XML-FFP30MMK2E	3000	1000	19BIT(M)	$2312.50
□180	APM-FFP44MMK2	XML-FFP44MMK2E	4400	1000	19BIT(M)	$2437.50

Support Links
2D/3D Drawing Download
