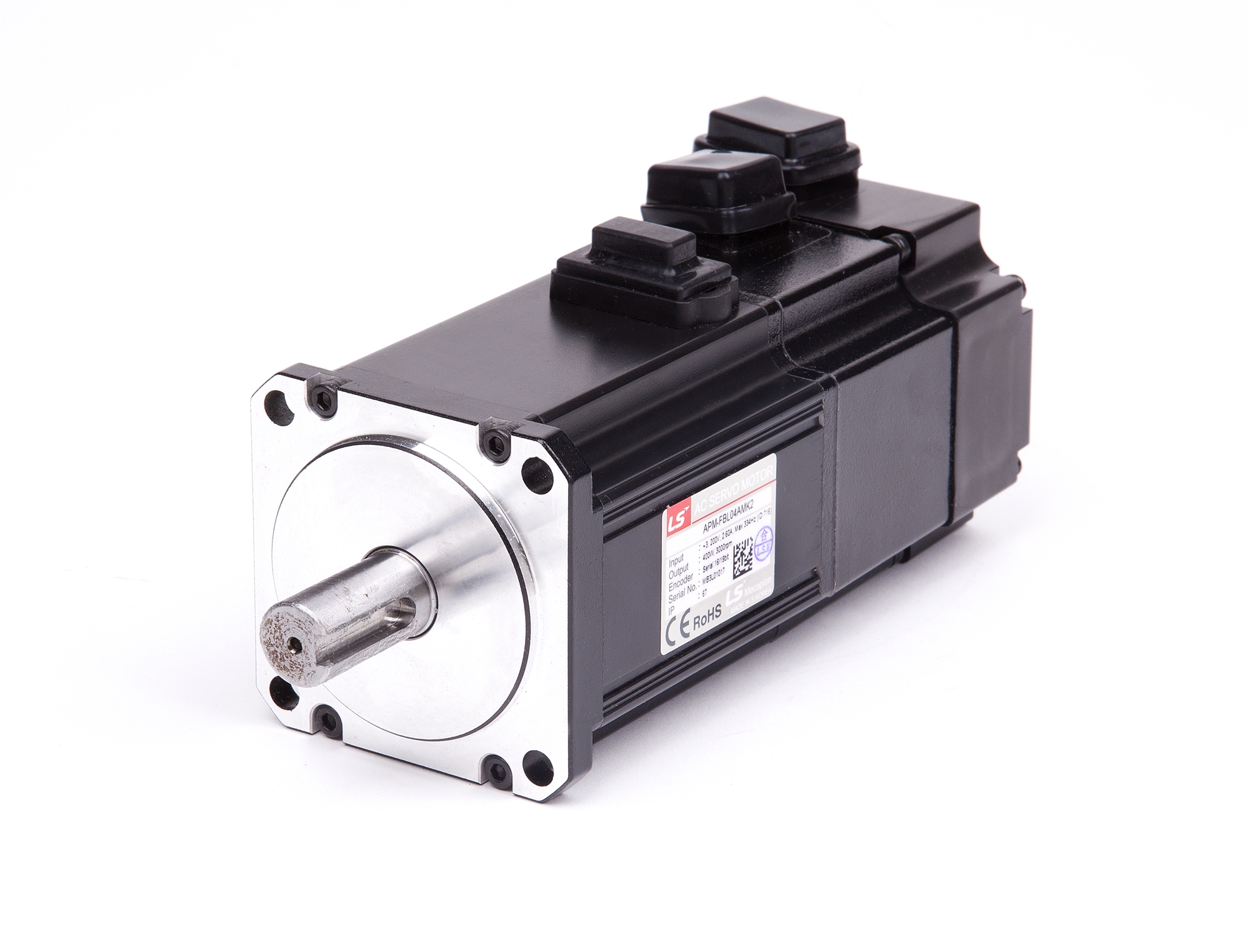

LS Mecapion: 40/60/80 Flange, 3ϕ 220VAC/400VDC, F type motor With Optical Absolute Encoder ,With Brake

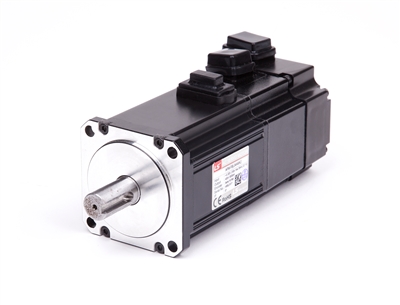

40/60/80 Flange,absolute encoder,with brake

Request discount coupon for over qty5

Price: (Members Only)


Availability: Usually Ships in 4 to 6 Weeks
Order #: F-TYPE-WITH-BRAKE


Model No.:


Qty:
Description Ordering Information Specifications and Drawings


LS Mecapion: Solid Shaft Servo Motor (F-Type)

Specifications:

  • Size: 40 Flange ~ 220 Flange

  • Capacity: 100[W] ~ 15[kW]

  • Rated Torque: 0.32[N·m] ~ 95.49[N·m]

  • Rated Speed: 1000[rpm] ~ 3000[rpm]

  • Encoder: Serial 19bit

  • Feature: Improved insulation in the interior molding


F type motor With Biss-C 19 bits single-turn/18bits muti- turn Optical Absolute Encoder(Except 5-150w
)

3ϕ 220VAC/400VDC,With Brake

Flange Part Number Old Part Number Power(w)Speed(rpm)EncoderPrice(USD)

□40

APMC-FALR5AM8N2

XML-FALR5AM8N2E

50

3000

18BIT(M)

$710.00

□40

APMC-FAL01AM8N2

XML-FAL01AM8N2E

100

3000

18BIT(M)

$701.50

□60

APMC-FBL01AMK2

XML-FBL01AMK2E

100

3000

19BIT(M)

$712.00

□60

APMC-FBL02AMK2

XML-FBL02AMK2E

200

3000

19BIT(M)

$722.50

□60

APMC-FBL04AMK2

XML-FBL04AMK2E

400

3000

19BIT(M)

$742.50

□80

APMC-FCL04AMK2

XML-FCL04AMK2E

400

3000

19BIT(M)

$732.00

□80

APMC-FCL06AMK2

XML-FCL06AMK2E

600

3000

19BIT(M)

$764.50

□80

APMC-FCL08AMK2

XML-FCL08AMK2E

750

3000

19BIT(M)

$814.50

□80

APMC-FCL10AMK2

XML-FCL10AMK2E

1000

3000

19BIT(M)

$876.00

□80

APMC-FCL03DMK2

XML-FCL03DMK2E

300

2000

19BIT(M)

$720.00

□80

APMC-FCL05DMK2

XML-FCL05DMK2E

500

2000

19BIT(M)

$876.00

□80

APMC-FCL06DMK2

XML-FCL06DMK2E

600

2000

19BIT(M)

$887.00

□80

APMC-FCL07DMK2

XML-FCL07DMK2E

650

2000

19BIT(M)

$897.00

□130

APM-FE09AMK2

XML-FE09AMK2E

900

3000

19BIT(M)

$987.00

□130

APM-FE15AMK2

XML-FE15AMK2E

1500

3000

19BIT(M)

$1100.00

□130

APM-FE22AMK2

XML-FE22AMK2E

2200

3000

19BIT(M)

$1187.50

□130

APM-FE30AMK2

XML-FE30AMK2E

3000

3000

19BIT(M)

$1238.00

□130

APM-FE06DMK2

XML-FE06DMK2E

600

2000

19BIT(M)

$1121.50

□130

APM-FE11DMK2

XML-FE11DMK2E

1100

2000

19BIT(M)

$1187.00

□130

APM-FE16DMK2

XML-FE16DMK2E

1600

2000

19BIT(M)

$1211.00

□130

APM-FE22DMK2

XML-FE22DMK2E

2200

2000

19BIT(M)

$1232.50

□130

APM-FE05GMK2

89XML-FE05GMK2E

500

1500

19BIT(M)

$989.50

□130

APM-FE09GMK2

XML-FE09GMK2E

900

1500

19BIT(M)

$1121.00

□130

APM-FE13GMK2

XML-FE13GMK2E

1300

1500

19BIT(M)

$1187.00

□130

APM-FE17GMK2

XML-FE17GMK2E

1700

1500

19BIT(M)

$1256.50

□130

APM-FE03MMK2

XML-FE03MMK2E

300

1000

19BIT(M)

$988.50

□130

APM-FE06MMK2

XML-FE06MMK2E

600

1000

19BIT(M)

$1121.50

□130

APM-FE09MMK2

XML-FE09MMK2E

900

1000

19BIT(M)

$1189.00

□130

APM-FE12MMK2

XML-FE12MMK2E

1200

1000

19BIT(M)

$1216.50

□180

APM-FF30AMK2

XML-FF30AMK2E

3000

3000

19BIT(M)

$1601.50

□180

APM-FF50AMK2

XML-FF50AMK2E

5000

3000

19BIT(M)

$1987.50

□180

APM-FF22DMK2

XML-FF22DMK2E

2200

2000

19BIT(M)

$1670.50

□180

APM-FF35DMK2

XML-FF35DMK2E

3500

2000

19BIT(M)

$1876.00

□180

APM-FF55DMK2

XML-FF55DMK2E

5500

2000

19BIT(M)

$2134.50

□180

APM-FF75DMK2

XML-FF75DMK2E

7500

2000

19BIT(M)

$2321.50

□180

APM-FF20GMK2

XML-FF20GMK2E

2000

1500

19BIT(M)

$1685.00

□180

APM-FF30GMK2

XML-FF30GMK2E

3000

1500

19BIT(M)

$1875.50

□180

APM-FF44GMK2

XML-FF44GMK2E

4400

1500

19BIT(M)

$2160.50

□180

APM-FF60GMK2

XML-FF60GMK2E

6000

1500

19BIT(M)

$2432.50

□180

APM-FF12MMK2

XML-FF12MMK2E

1200

1000

19BIT(M)

$1732.00

□180

APM-FF20MMK2

XML-FF20MMK2E

2000

1000

19BIT(M)

$1876.50

□180

APM-FF30MMK2

XML-FF30MMK2E

3000

1000

19BIT(M)

$2130.00

□180

APM-FF44MMK2

XML-FF44MMK2E

4400

1000

19BIT(M)

$2543.50

□220

APM-FG22DMK2

XML-FG22DMK2E

2200

2000

19BIT(M)

$2345.50

□220

APM-FG35DMK2

XML-FG35DMK2E

3500

2000

19BIT(M)

$2511.50

□220

APM-FG55DMK2

XML-FG55DMK2E

5500

2000

19BIT(M)

$2677.00

□220

APM-FG75DMK2

XML-FG75DMK2E

7500

2000

19BIT(M)

$2897.50

□220

APM-FG110DMK2

XML-FG110DMK2E

11000

2000

19BIT(M)

$3768.50

□220

APM-FG20GMK2

XML-FG20GMK2E

2000

1500

19BIT(M)

$2310.50

□220

APM-FG30GMK2

XML-FG30GMK2E

3000

1500

19BIT(M)

$2543.50

□220

APM-FG44GMK2

XML-FG44GMK2E

4400

1500

19BIT(M)

$2714.00

□220

APM-FG60GMK2

XML-FG60GMK2E

6000

1500

19BIT(M)

$2897.50

□220

APM-FG110GMK2

XML-FG110GMK2E

11000

1500

19BIT(M)

$3987.50

□220

APM-FG150GMK2

XML-FG150GMK2E

15000

1500

19BIT(M)

$5345.00

□220

APM-FG12MMK2

XML-FG12MMK2E

1200

1000

19BIT(M)

$2315.50

□220

APM-FG20MMK2

XML-FG20MMK2E

2000

1000

19BIT(M)

$2543.50

□220

APM-FG30MMK2

XML-FG30MMK2E

3000

1000

19BIT(M)

$2622.00

□220

APM-FG44MMK2

XML-FG44MMK2E

4400

1000

19BIT(M)

$2986.00

□220

APM-FG60MMK2

XML-FG60MMK2E

6000

1000

19BIT(M)

$3765.00
