LS Mecapion: 40/60/80 Flange, 3ϕ 220VAC/400VDC, F type motor With Optical Absolute Encoder, Without Brake
40/60/80 Flange,absolute encoder,without brake

Alternate View


Request discount coupon for over qty5

Price: (Members Only)


Availability: Usually Ships in 4 to 6 Weeks
Order #: F-TYPE


Model No.:


Qty:
Description Ordering Information Specifications and Drawings

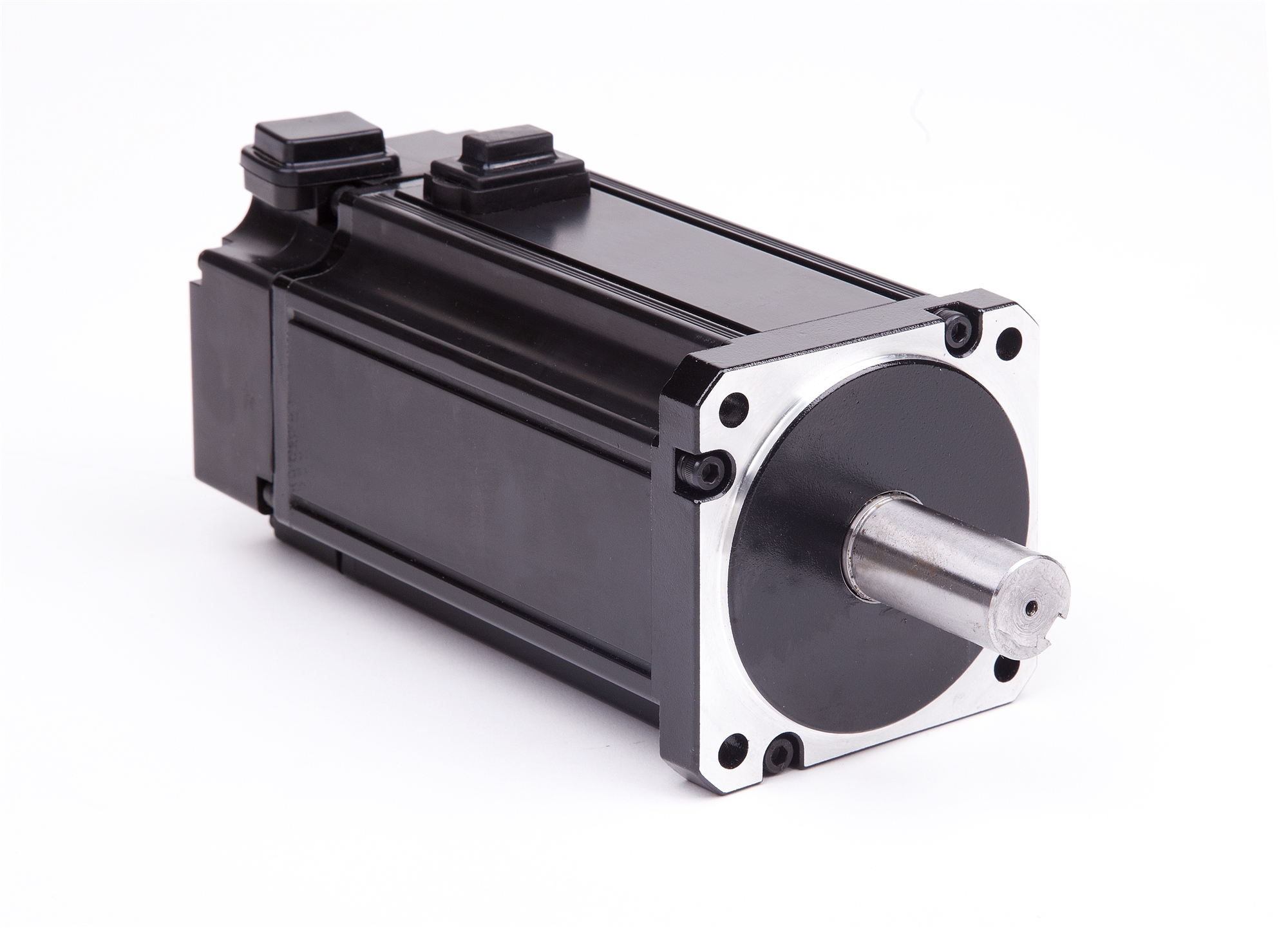

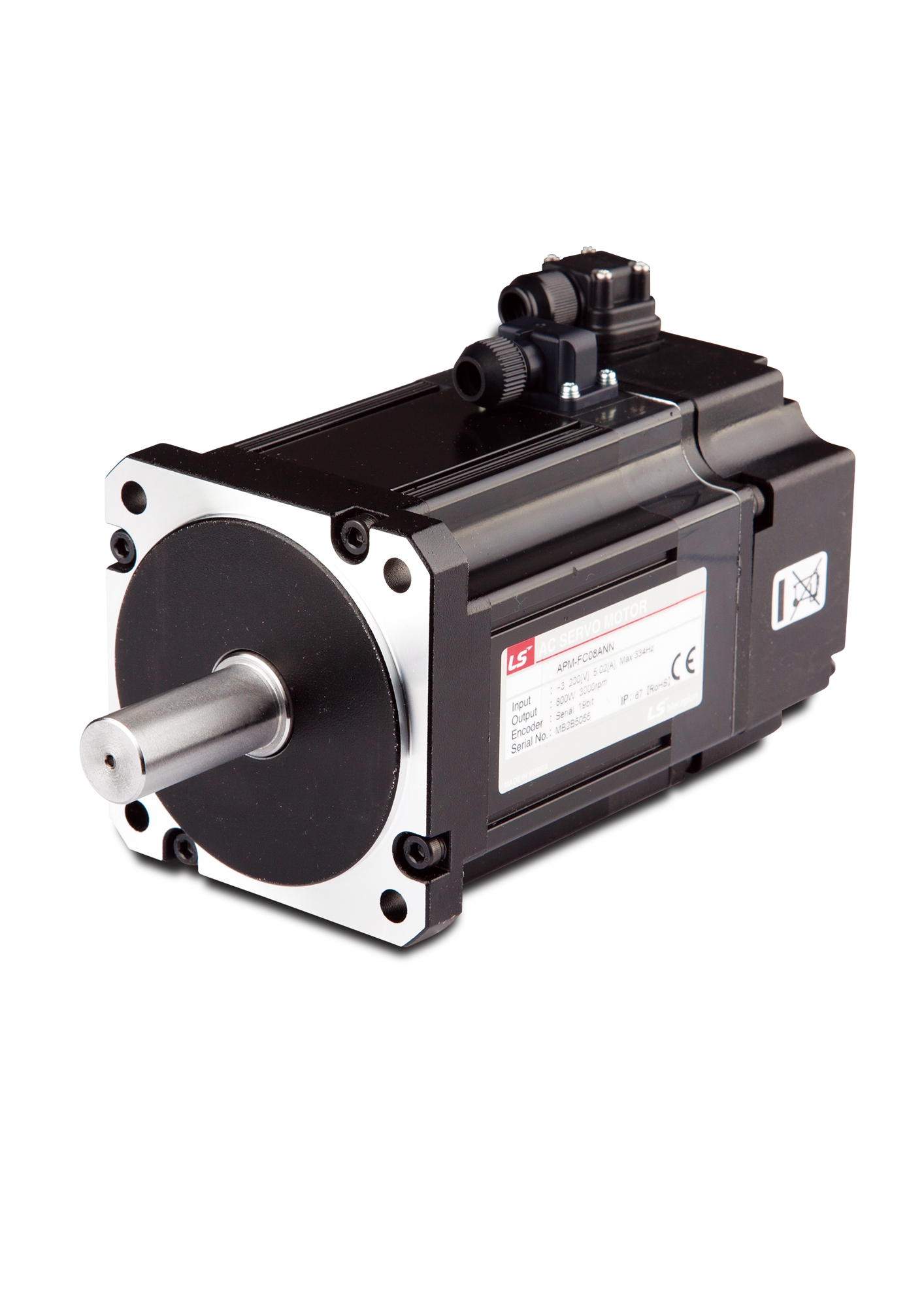

LS Mecapion: Solid Shaft Servo Motor (F-Type)

Specifications:

  • Size: 40 Flange ~ 220 Flange

  • Capacity: 100[W] ~ 15[kW]

  • Rated Torque: 0.32[N·m] ~ 95.49[N·m]

  • Rated Speed: 1000[rpm] ~ 3000[rpm]

  • Encoder: Serial 19bit

  • Feature: Improved insulation in the interior molding


F type motor With Biss-C 19 bits single-turn/18bits muti- turn Optical Absolute Encoder(Except 5-150w)

3ϕ 220VAC/400VDC,Without Brake

Flange Part Number Old Part NumberPower(w) Speed(rpm) Encoder List Price

40

APMC-FALR5AM8N

XML-FALR5AM8NE

50

3000

18BIT(M)

$380.00

40

APMC-FAL01AM8N

XML-FAL01AM8NE

100

3000

18BIT(M)

$390.00

40

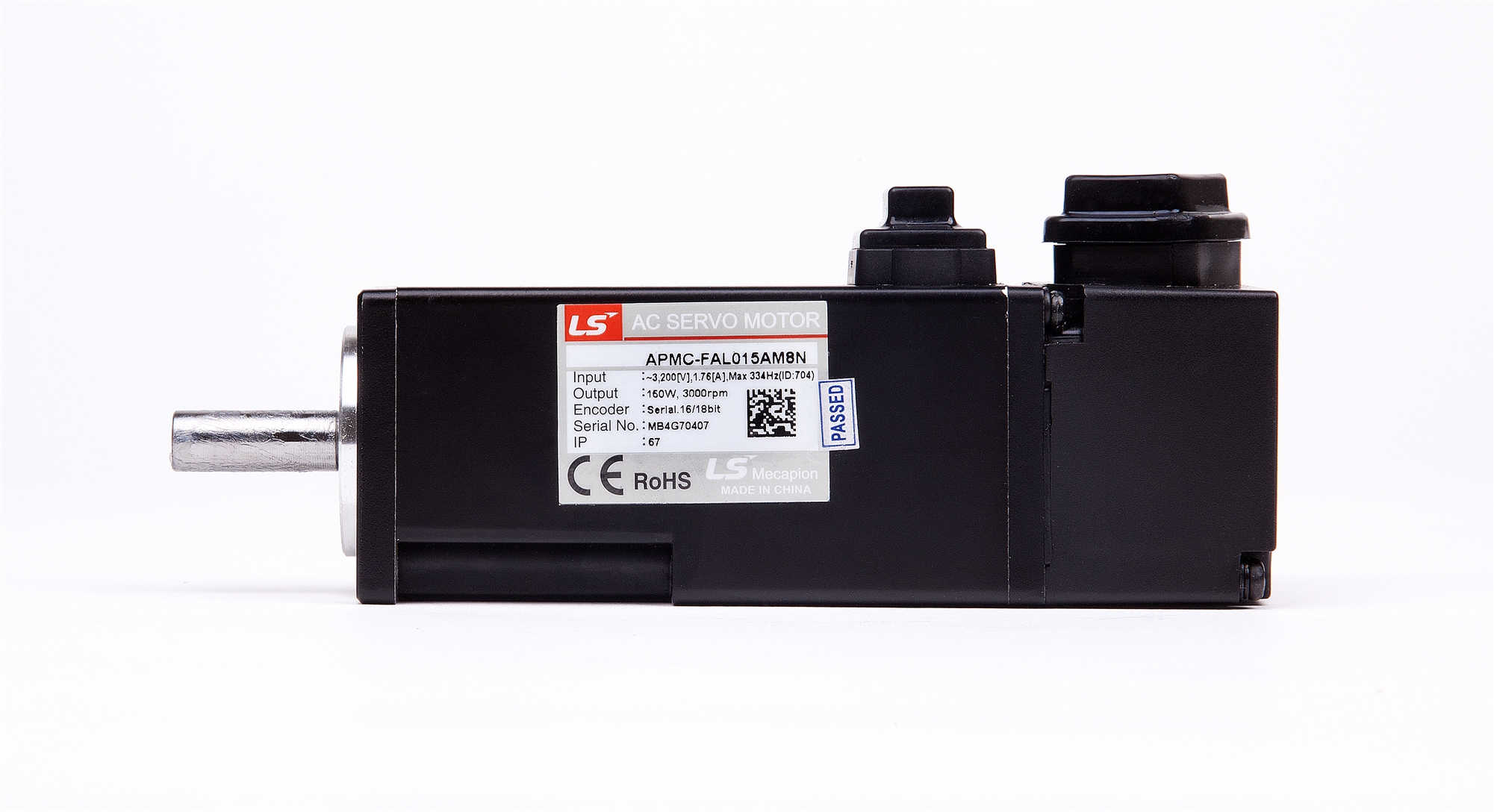

APMC-FAL015AM8N

XML-FAL015AM8NE

150

3000

18BIT(M)

$424.00

□60

APMC-FBL01AMK

XML-FBL01AMKE

100

3000

19BIT(M)

$340.50

□60

APMC-FBL02AMK

XML-FBL02AMKE

200

3000

19BIT(M)

$364.00

□60

APMC-FBL04AMK

XML-FBL04AMKE

400

3000

19BIT(M)

$380.50

□80

APMC-FCL04AMK

XML-FCL04AMKE

400

3000

19BIT(M)

$383.00

□80

APMC-FCL06AMK

XML-FCL06AMKE

600

3000

19BIT(M)

$420.50

□80

APMC-FCL08AMK

XML-FCL08AMKE

750

3000

19BIT(M)

$472.50

□80

APMC-FCL10AMK

XML-FCL10AMKE

1000

3000

19BIT(M)

$522.00

□80

APMC-FCL03DMK

XML-FCL03DMKE

300

2000

19BIT(M)

$389.00

□80

APMC-FCL05DMK

XML-FCL05DMKE

500

2000

19BIT(M)

$430.50

□80

APMC-FCL06DMK

XML-FCL06DMKE

600

2000

19BIT(M)

$497.00

□80

APMC-FCL07DMK

XML-FCL07DMKE

650

2000

19BIT(M)

$530.00

□130

APM-FE09AMK

XML-FE09AMKE

900

3000

19BIT(M)

$689.50

□130

APM-FE15AMK

XML-FE15AMKE

1500

3000

19BIT(M)

$776.00

□130

APM-FE22AMK

XML-FE22AMKE

220

3000

19BIT(M)

$838.50

□130

APM-FE30AMK

XML-FE30AMKE

3000

3000

19BIT(M)

$867.50

□130

APM-FE06DMK

XML-FE06DMKE

600

2000

19BIT(M)

$720.00

□130

APM-FE11DMK

XML-FE11DMKE

1100

2000

19BIT(M)

$867.00

□130

APM-FE16DMK

XML-FE16DMKE

1600

2000

19BIT(M)

$916.00

□130

APM-FE22DMK

XML-FE22DMKE

2200

2000

19BIT(M)

$952.50

□130

APM-FE05GMK

XML-FE05GMKE

500

1500

19BIT(M)

$852.00

□130

APM-FE09GMK

XML-FE09GMKE

900

1500

19BIT(M)

$862.00

□130

APM-FE13GMK

XML-FE13GMKE

1300

1500

19BIT(M)

$916.00

□130

APM-FE17GMK

XML-FE17GMKE

1700

1500

19BIT(M)

$951.50

□130

APM-FE03MMK

XML-FE03MMKE

300

1000

19BIT(M)

$821.00

□130

APM-FE06MMK

XML-FE06MMKE

600

1000

19BIT(M)

$875.50

□130

APM-FE09MMK

XML-FE09MMKE

900

1000

19BIT(M)

$927.00

□130

APM-FE12MMK

XML-FE12MMKE

1200

1000

19BIT(M)

$966.50

□180

APM-FF30AMK

XML-FF30AMKE

3000

3000

19BIT(M)

$1200.00

□180

APM-FF50AMK

XML-FF50AMKE

5000

3000

19BIT(M)

$1400.50

□180

APM-FF22DMK

XML-FF22DMKE

2200

2000

19BIT(M)

$1220.50

□180

APM-FF35DMK

XML-FF35DMKE

3500

2000

19BIT(M)

$1600.00

□180

APM-FF55DMK

XML-FF55DMKE

5500

2000

19BIT(M)

$1820.00

□180

APM-FF75DMK

XML-FF75DMKE

7500

2000

19BIT(M)

$1989.50

□180

APM-FF20GMK

XML-FF20GMKE

2000

1500

19BIT(M)

$1220.00

□180

APM-FF30GMK

XML-FF30GMKE

3000

1500

19BIT(M)

$1420.50

□180

APM-FF44GMK

XML-FF44GMKE

4400

1500

19BIT(M)

$1670.00

□180

APM-FF60GMK

XML-FF60GMKE

6000

1500

19BIT(M)

$2398.50

□180

APM-FF75GMK

XML-FF75GMKE

7500

1500

19BIT(M)

$2567.50

□180

APM-FF12MMK

XML-FF12MMKE

1200

1000

19BIT(M)

$1345.00

□180

APM-FF20MMK

XML-FF20MMKE

2000

1000

19BIT(M)

$1453.50

□180

APM-FF30MMK

XML-FF30MMKE

3000

1000

19BIT(M)

$1687.00

□180

APM-FF44MMK

XML-FF44MMKE

4400

1000

19BIT(M)

$2356.00

□220

APM-FG22DMK

XML-FG22DMKE

2200

2000

19BIT(M)

$1802.00

□220

APM-FG35DMK

XML-FG35DMKE

3500

2000

19BIT(M)

$19250

□220

APM-FG55DMK

XML-FG55DMKE

5500

2000

19BIT(M)

$2287.00

□220

APM-FG75DMK

XML-FG75DMKE

7500

2000

19BIT(M)

$2720.00

□220

APM-FG110DMK

XML-FG110DMKE

11000

2000

19BIT(M)

$3286.50

□220

APM-FG20GMK

XML-FG20GMKE

2000

1500

19BIT(M)

$1822.00

□220

APM-FG30GMK

XML-FG30GMKE

3000

1500

19BIT(M)

$1956.50

□220

APM-FG44GMK

XML-FG44GMKE

4400

1500

19BIT(M)

$2387.00

□220

APM-FG60GMK

XML-FG60GMKE

6000

1500

19BIT(M)

$2911.00

□220

APM-FG85GMK

XML-FG85GMKE

8500

1500

19BIT(M)

$4234.50

□220

APM-FG110GMK

XML-FG110GMKE

11000

1500

19BIT(M)

$4676.50

□220

APM-FG150GMK

XML-FG150GMKE

15000

1500

19BIT(M)

$5297.00

□220

APM-FG12MMK

XML-FG12MMKE

1200

1000

19BIT(M)

$1878.00

□220

APM-FG20MMK

XML-FG20MMKE

2000

1000

19BIT(M)

$1943.00

□220

APM-FG30MMK

XML-FG30MMKE

3000

1000

19BIT(M)

$2287.00

□220

APM-FG44MMK

XML-FG44MMKE

4400

1000

19BIT(M)

$2413.50

□220

APM-FG60MMK

XML-FG60MMKE

6000

1000

19BIT(M)

$2968.50
