Thomson: UltraTRUE™ Planetary Gearheads (UT014 Series)

Thomson Micron® planetary gearheads are used on high precision motion control applications which require a high torque to volume ratio, high torsional stiffness, and low backlash. All of our gearheads are self-lubricating and have high radial load capacity for any given size. The ability to match inertias with our large variety of ratios, provide to keep our customers stable and controlled servo systems.

UltraTRUE™ Planetary Gearheads

Description

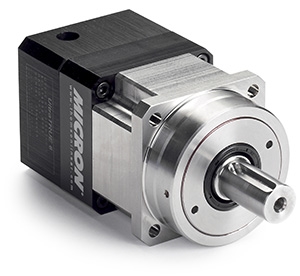

The UltraTRUE True Planetary® gearhead combines the positive attributes of Helical Crowned gearing with True Planetary orientation to create a smoothest and quietest gearheads on the market today. The internal gear is cut directly into the stainless steel housing to increase torque capacity and avoid slippage. The Helical cut of the gears provides higher torque capacity, precision and stiffness when compared to straight cut gears. Thomson Micron carries the UltraTRUE in many ratios stocked and available for immediate delivery though the Thomson Micron Gearhead Express program.

UltraTRUE™ Highlights

· Tapered roller bearings provide high axial and radial load carrying capacity

· Helical crowned HRC 55-60 steel gears provide higher torque capacity and smoother operation

· Sealed deep groove ball bearing provides high radial load carrying capability

· RediMount™ system provides error-free motor installation

· Single piece output integrated output housing and internal gear

· Anodized aluminum housing reduces weight and prevents corrosion

Product Features

· Precision: 4 arc-minutes

· Frame Sizes: 140mm

· Torque Capacity: up to 1412 Nm

· Ratio Availability: 4:1 thru 100:1

Model No.: UT014-004, UT014-005, UT014-007, UT014-010, UT014-016, UT014-020, UT014-025, UT014-028, UT014-035, UT014-040, UT014-050, UT014-070, UT014-100
