MOONS': Stepper Motors AM11HS5008-01
AM11HS5008-01


Price: (Members Only)


Availability: Usually Ships in 1 to 2 Weeks

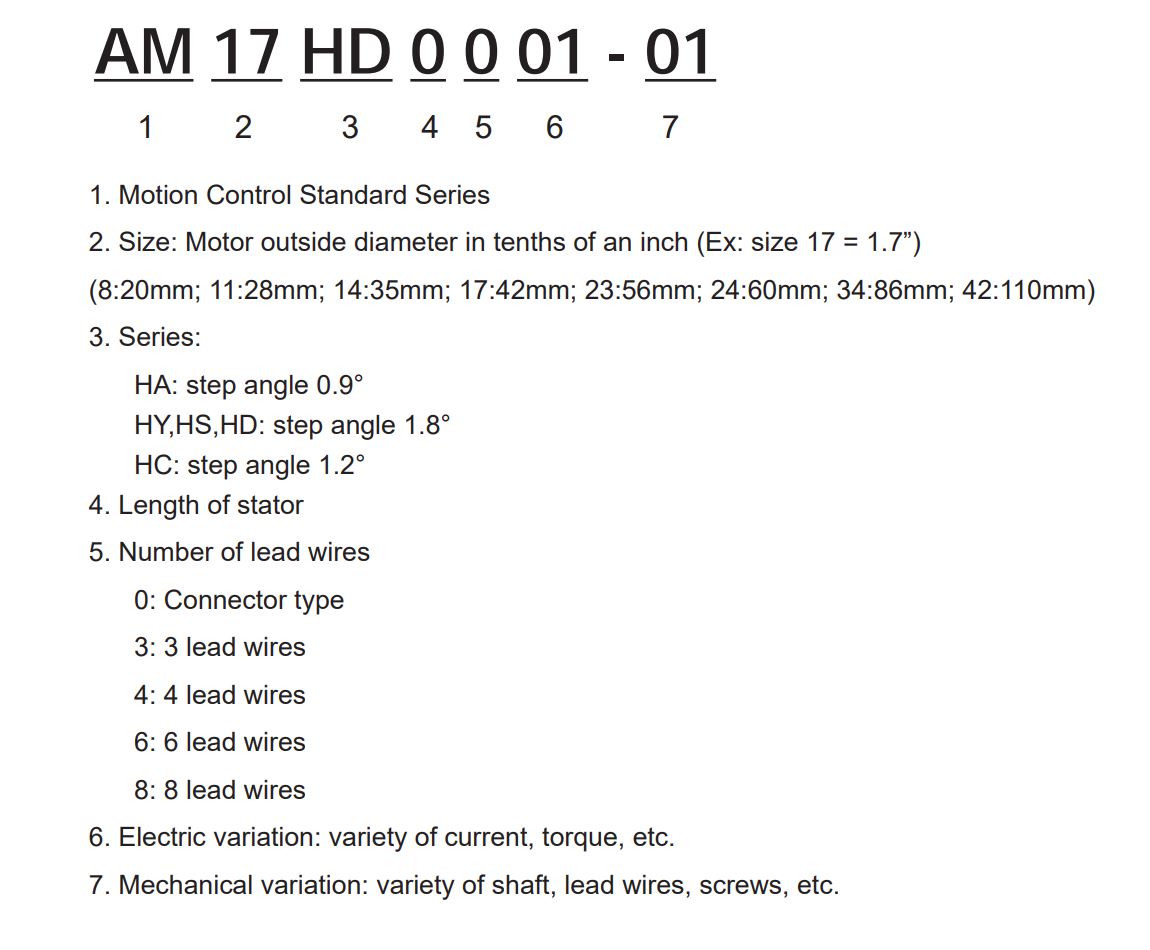

Order #: AM11HS5008-01
Qty:

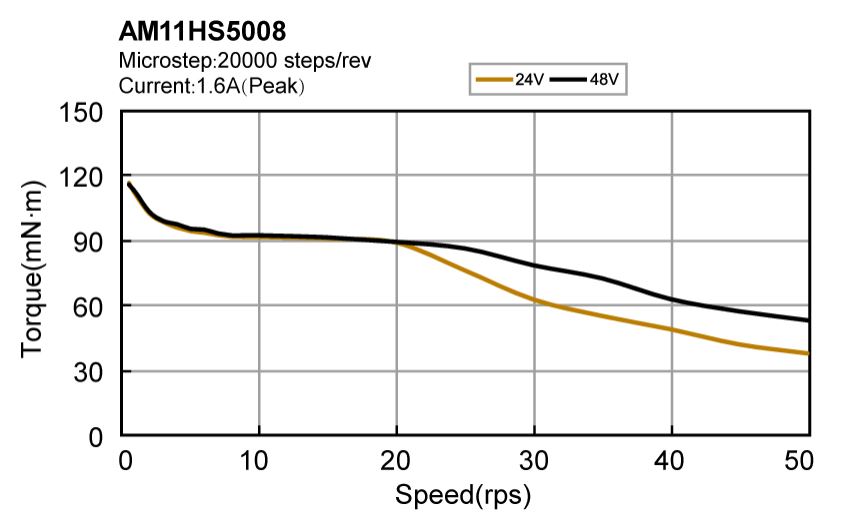

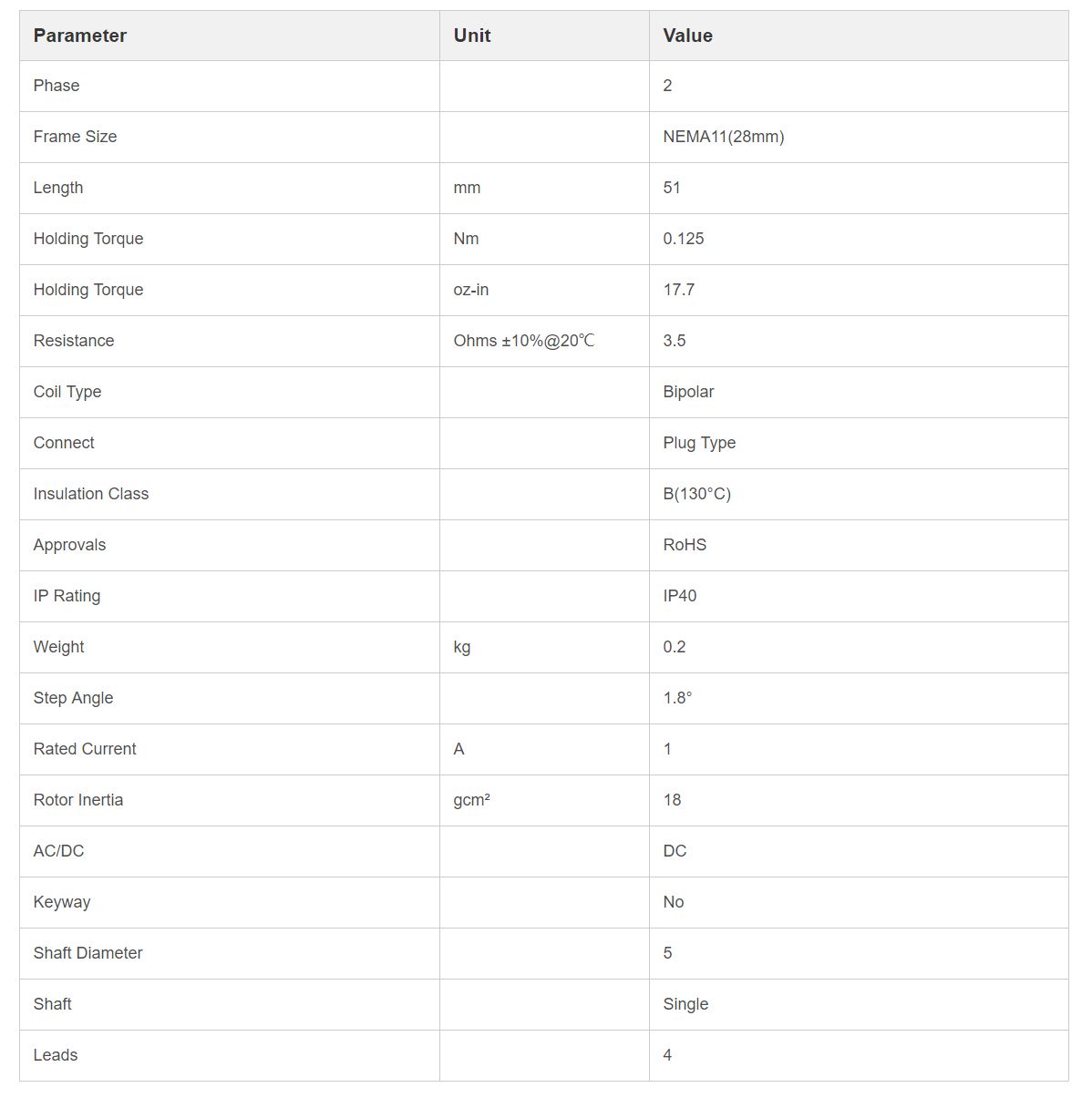

Description Ordering Information Specifications and Drawings


AM11HS5008-01

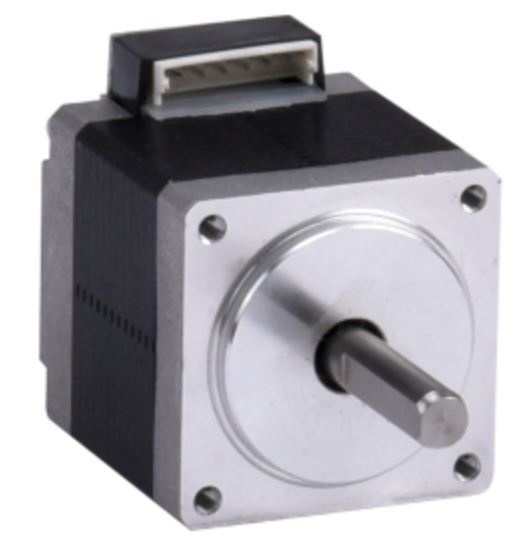

NEMA11(28mm) 1.8°2 Phase Hybrid Stepper Motors, Single Shaft, Body Length 51.0mm, Holding Torque 0.125N.m, Rated Current 1.0A, Rotor Inertia 18.0gcm2
● Step Accuracy ±5%
● Axial load 15N(3.4 Lbs.)Push
● Axial load 25N(5.6 Lbs.)Pull
● Radial load 30N(6.5 Lbs.)at the flat center
● IP Rating 40
● Excellent performance with SR/STF stepper drivers
Support Links

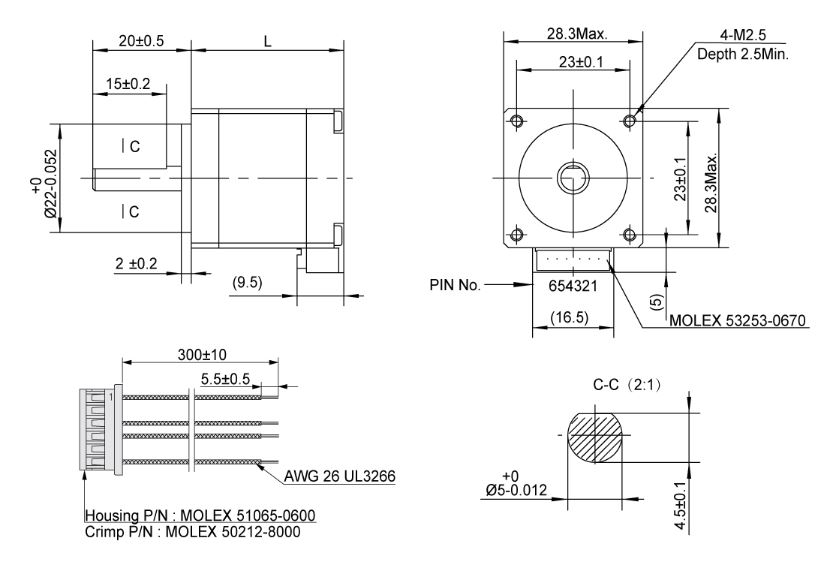

2D Drawings
TitleTypeSize（KB）Download
AM11HS5008-01.pdfPDF332
3D Model
TitleTypeSize（KB）Download
AM11HS5008-01.STEPSTEP171
Catalog
TitleTypeSize（KB）Download
Motor Catalog_EN20190620 A6.pdfPDF11089
