FAULHABER: Stepper Motors AM2224-R3-AV-4.8-30
AM2224-R3-AV-4.8-30

Faulhaber
833-9MOTION [email protected].

Price: (Members Only)


Availability: Lead Time is 3 Business Days.
Order #: AM2224-R3-AV-4.8-30
Qty:

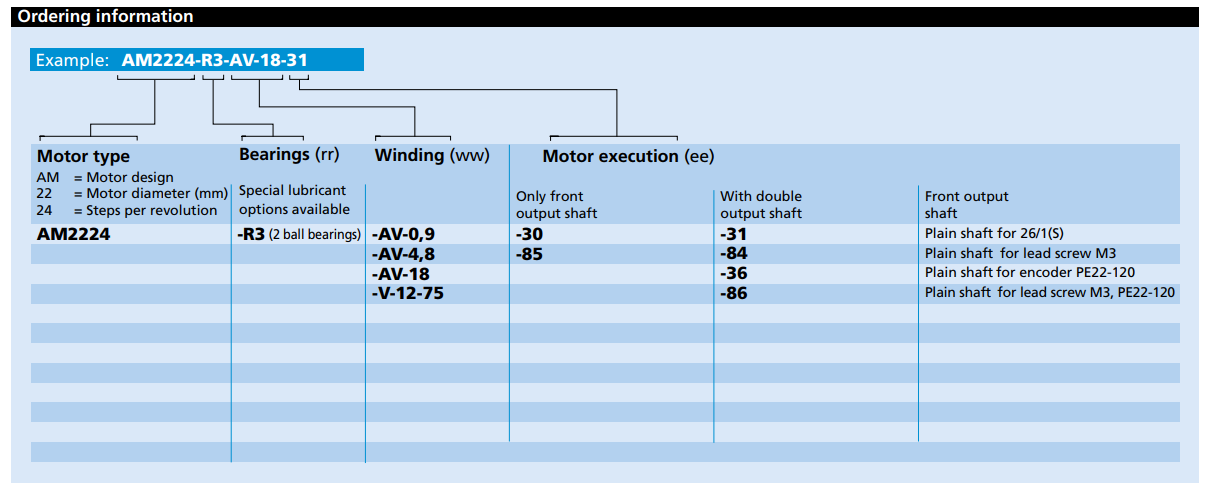

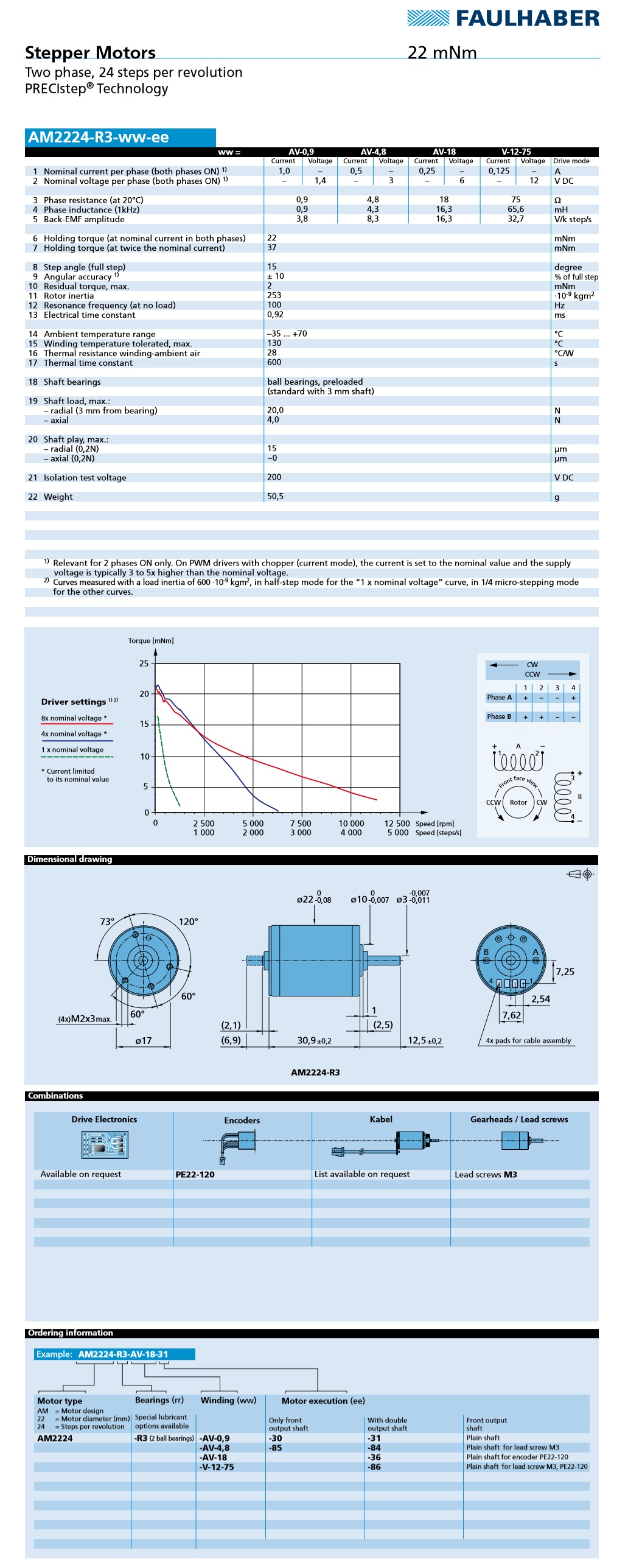

Description Ordering Information Specifications and Drawings


Please call 833-9MOTION for the price of order over quantity of 50.

FAULHABER:

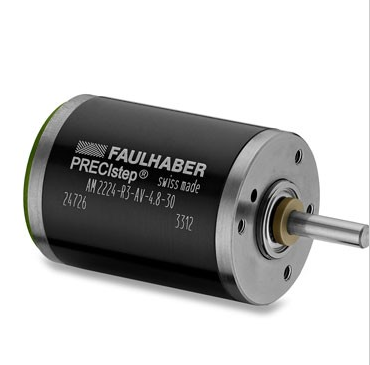

Stepper Motors AM2224-R3-AV-4.8-30

Robust assembly, high speed range, and exceptional performance in even the harshest environments make PRECIstep® drive systems the perfect solution for demanding positioning applications.

They are available with a wide variety of modular servo components like encoders, zero backlash gearheads, integrated lead screws and much more.

Specifications

  • Diameter (mm): 22

  • Length (mm): 30.9

  • Holding Torque - MH2 Phase (mNm): 37

  • Torque – Me max. (mNm): 22

  • Step Angle (Full Step): 15


FAULHABER PRECIstep Technology series AM2224-R3, 22 mm dia. 2 phase DC stepper motor, 12V coil with 3mm shaft. and 3.0 mm plain shaft.
