Analog AxCent™Panel Mount Servo Drive AB20A200

The AB20A200 PWM servo drive is designed to drive brushless and brushed DC motors at a high switching frequency. A single red/green LED indicates operating status. The drive is fully protected against overvoltage, under-voltage, over-current, over-heating and short-circuits across motor, ground and power leads. Furthermore, the drive can interface with digital controllers or be used stand-alone, and requires only a single unregulated DC power supply. Loop gain, current limit, input gain and offset can be adjusted using 14-turn potentiometers. The offset adjusting potentiometer can also be used as an on-board input signal for testing purposes. This drive can use quadrature encoder inputs for velocity control.

The AB20A200 AxCent™ panel mount servo drive is targeted for centralized control and offers high bandwidth and quick response times.

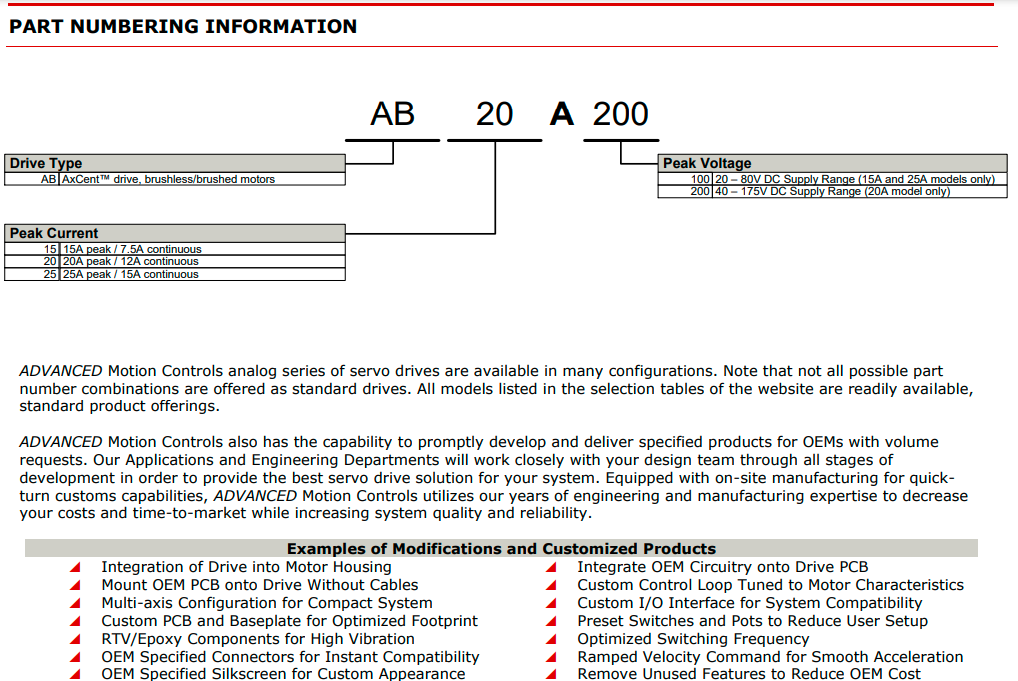

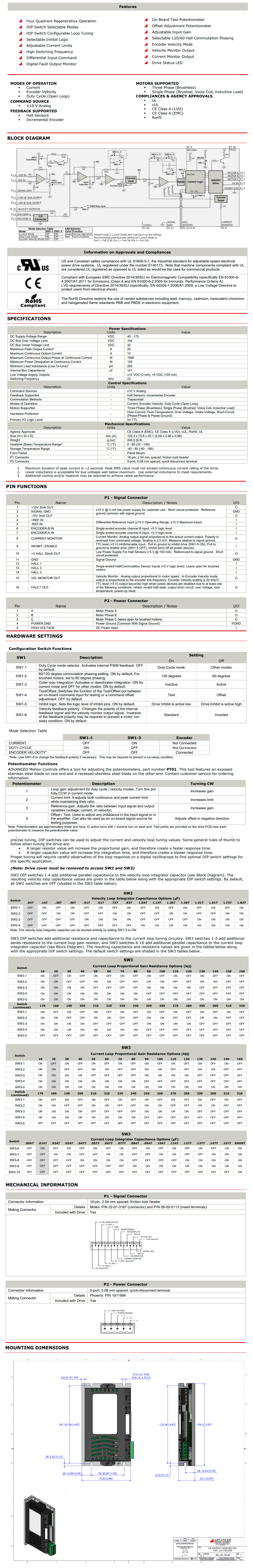

Specifications:

Downloads:
Datasheet_AB20A200.pdf
HWManual_AxCent_Panel.pdf
Axcent-Retrofit-Small.pdf

Instructional Videos:
Manual commutation
Axcent Current Loop tuning
Tips for Proper Wiring and Reducing EMI (Noise)
