AMC: Analog AxCent™ PWM Panel Mount Servo Drive AB50A200
AMC: Analog AxCentâ„¢ Panel Mount Servo Drive AB50A200
AB50A200

Analog AxCent™ Panel Mount Servo Drive AB50A200 (25A rated current, 50A peak current, 40-175 VDC)

Price: (Members Only)


Availability: Lead time 10 - 12 weeks
Order #: AB50A200
Qty:

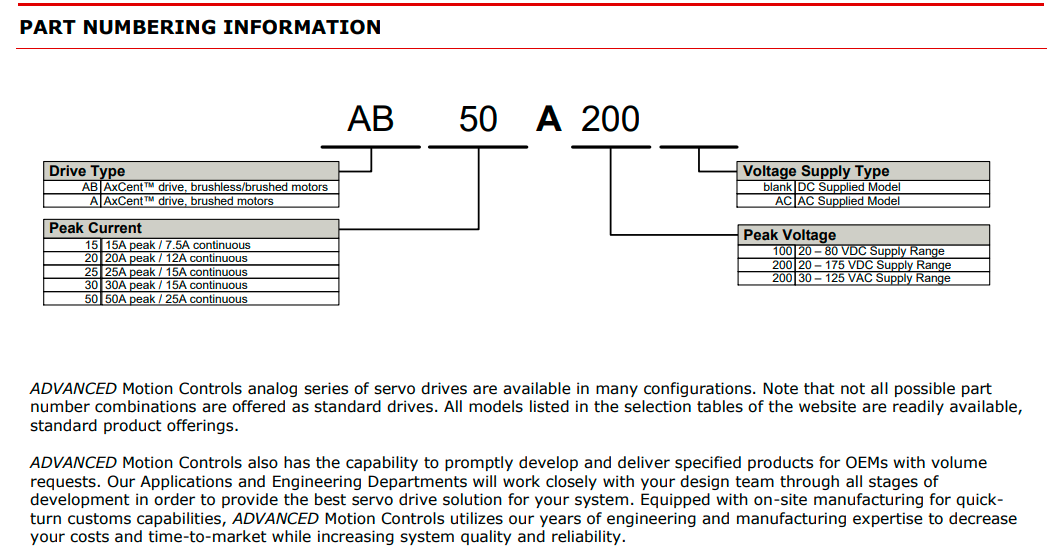

Description Ordering Information Specifications and Drawings

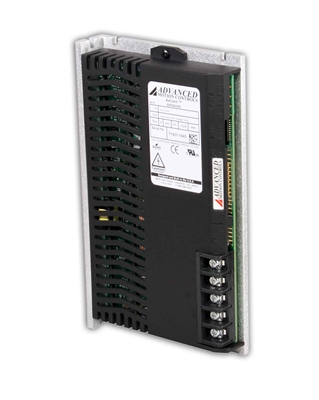

Analog AxCent™ PWM Panel Mount Servo Drive AB50A200

The AB50A200 PWM servo drive is designed to drive brushless and brushed type DC motors at a high switching frequency. A single red/green LED indicates operating status. The drive is fully protected against over-voltage, under-voltage, over-current, overheating and short-circuits across motor, ground and power leads. Furthermore, the drive can interface with digital controllers or be used stand-alone, and requires only a single unregulated DC power supply. Loop gain, current limit, input gain and offset can be adjusted using 14-turn potentiometers. The offset adjusting potentiometer can also be used as an on-board input signal for testing purposes. This drive can use quadrature encoder inputs, Hall Sensors, or a tachometer for velocity control.

The AB50A200 AxCent™ panel mount servo drive is targeted for centralized control and offers high bandwidth and quick response times.

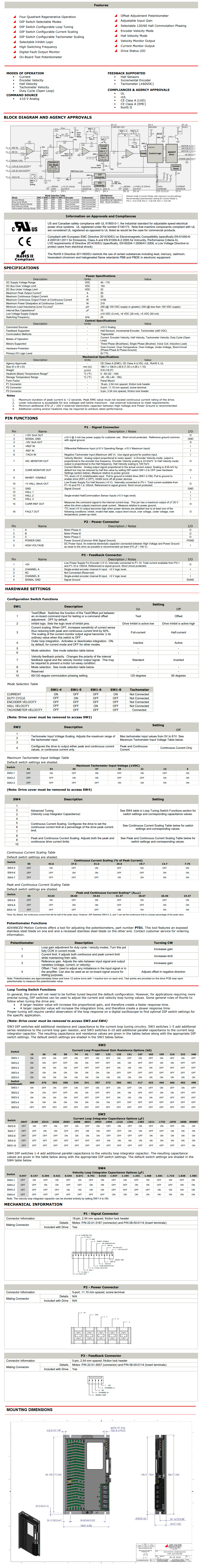

Specifications:

Current Continuous (A)25
Current Peak (A)50
DC Supply Voltage (VDC)40 - 175
Network CommunicationNone
Size (mm)186.7 x 108.8 x 26.9
Weight (g)518

Downloads:

AxCent Retrofit - Large Size
Datasheet_AB50A200.pdf
HWManual_AxCent_Panel.pdf
Product-Identification.pdf

Instructional Videos:
Manual commutation
Axcent Current Loop tuning
Tips for Proper Wiring and Reducing EMI (Noise)


Share your knowledge of this product. Be the first to write a review »
