Analog AxCent™ PWM Panel Mount Servo Drive AB50A200I

The AB50A200I PWM servo drive is designed to drive brushless and brushed type DC motors at a high switching frequency. A single red/green LED indicates operating status. The drive is fully protected against over-voltage, under-voltage, over-current, overheating and short-circuits across motor, ground and power leads. Furthermore, the drive can interface with digital controllers or be used stand-alone, and requires only a single unregulated DC power supply. Loop gain, current limit, input gain and offset can be adjusted using 14-turn potentiometers. The offset adjusting potentiometer can also be used as an on-board input signal for testing purposes. This drive can use quadrature encoder inputs, Hall Sensors, or a tachometer for velocity control.

The AB50A200I AxCent™ panel mount servo drive is targeted for centralized control and offers high bandwidth and quick response times. The AB50A200I features built-in isolation between high and low power signals.

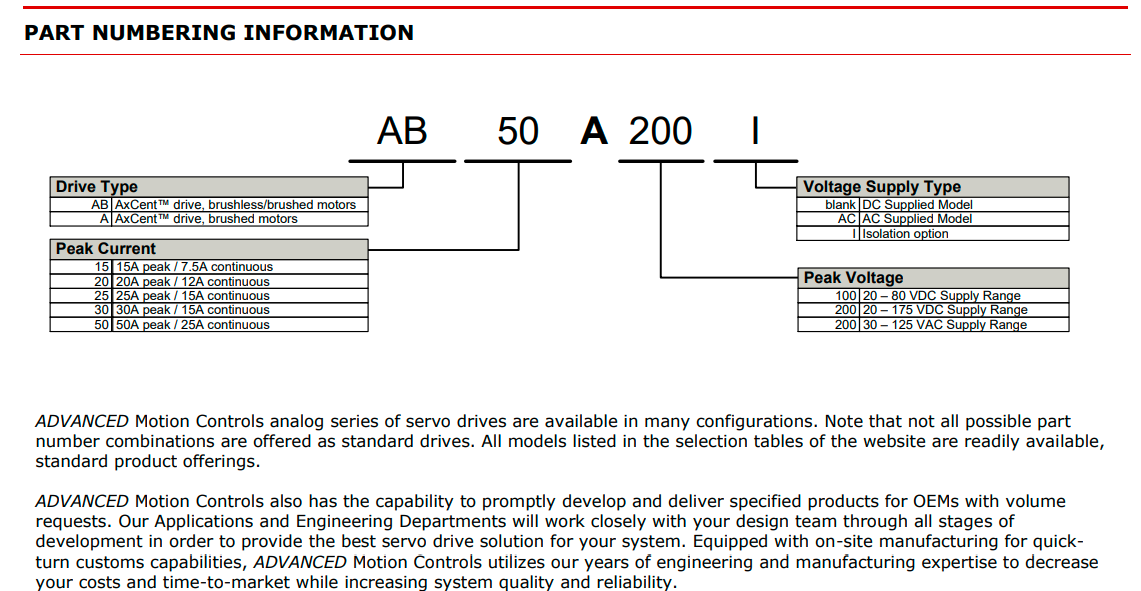

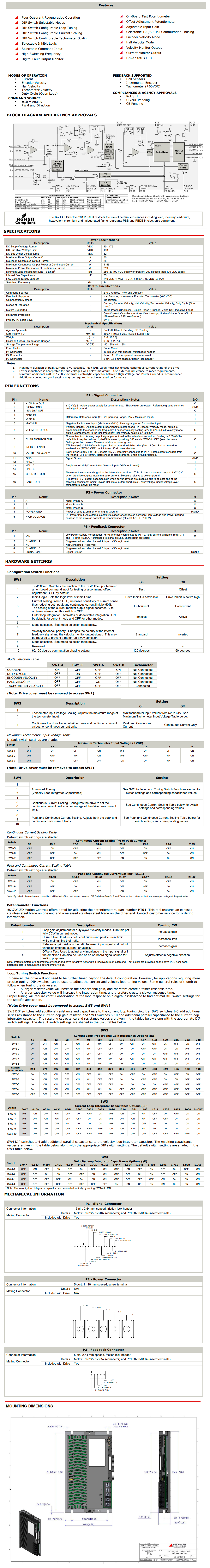

Specifications:

Downloads:

Datasheet_AB50A200I.pdf
HWManual_AxCent_Panel.pdf
Product-Identification.pdf
AxCent Retrofit - Large Size

Instructional Videos:
Manual commutation
Axcent Current Loop tuning
Tips for Proper Wiring and Reducing EMI (Noise)
