AMC: Analog AxCent™ PWM DC Brushless Servo Drive B100A400AC
AMC: Analog AxCentâ„¢ Panel Mount Servo Drive B100A400AC
B100A400AC

Analog AxCent™ Panel Mount Servo Drive B100A400AC (50A rated current, 100A peak current, 200 - 240 VAC)

Price: (Members Only)


Availability: Leadtime 26-28 weeks
Order #: B100A400AC
Qty:

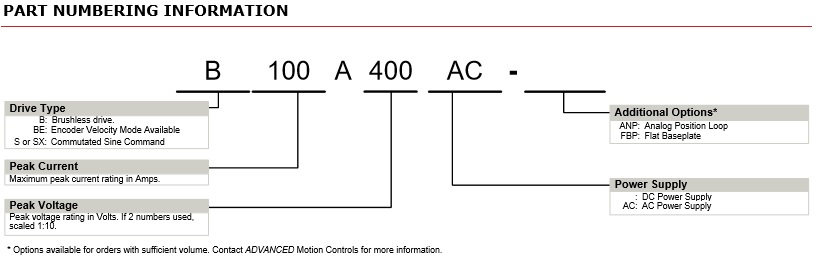

Description Ordering Information Specifications and Drawings


Analog PWM DC Brushless Servo Drive B100A400AC

The B100A400AC PWM servo drive is designed to drive brushless DC motors at a high switching frequency. A single red/green LED and a single digital output indicate operating status. The drive is fully protected against over-voltage, under voltage, over-current, over-heating and short-circuits across motor, ground and power leads. Furthermore, the drive can interface with digital controllers or be used stand-alone, and requires a single unregulated AC or DC power supply and a nominal 24 VDC logic supply. Loop gain, current limit, input gain, offset, and ramp can be adjusted using 14-turn potentiometers. The offset adjusting potentiometer can also be used as an on-board input signal for testing purposes. The drive accepts quadrature encoder inputs or Hall sensor inputs for velocity control.
The B100A400AC AxCent™ panel mount servo drive is targeted for centralized control and offers high bandwidth and quick response times.

Specifications:

Rated current (A)
50
Peak current (A)
100
DC supply voltage (VDC)
255 - 373
AC supply voltage (VAC)

200 - 240

Telecommunication
none
Dimensions (mm)
256.5 x 182.6 x 135.3
Weight (g)
3538
Downloads:
Datasheet_B100A400AC.pdf
HWManual_AxCent_Panel.pdf
Axcent-Retrofit-Small.pdf
AxCent Retrofit - Large Size
Product-Identification.pdf
Instructional Videos:
Manual commutation
Axcent Current Loop tuning
Tips for Proper Wiring and Reducing EMI (Noise)
