AMC: Analog M/V™ Series Vehicle Mount Servo Drive AB125A200
AMC: Analog M/Vâ„¢ Series Vehicle Mount Servo Drive AB125A200
AB125A200

Analog M/V™ Series AxCent™ Vehicle Mount Servo Drive AB125A200 (80A rated current, 125A peak current, 40 -175 VDC)

Price: (Members Only)


Availability: Lead time 10 - 12 weeks
Order #: AB125A200
Qty:

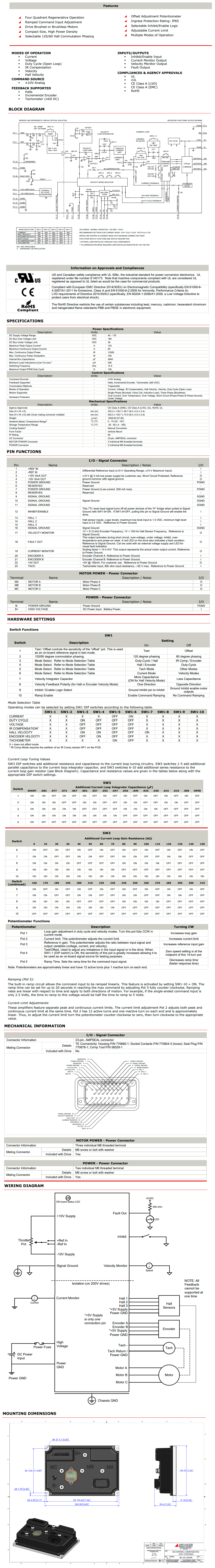

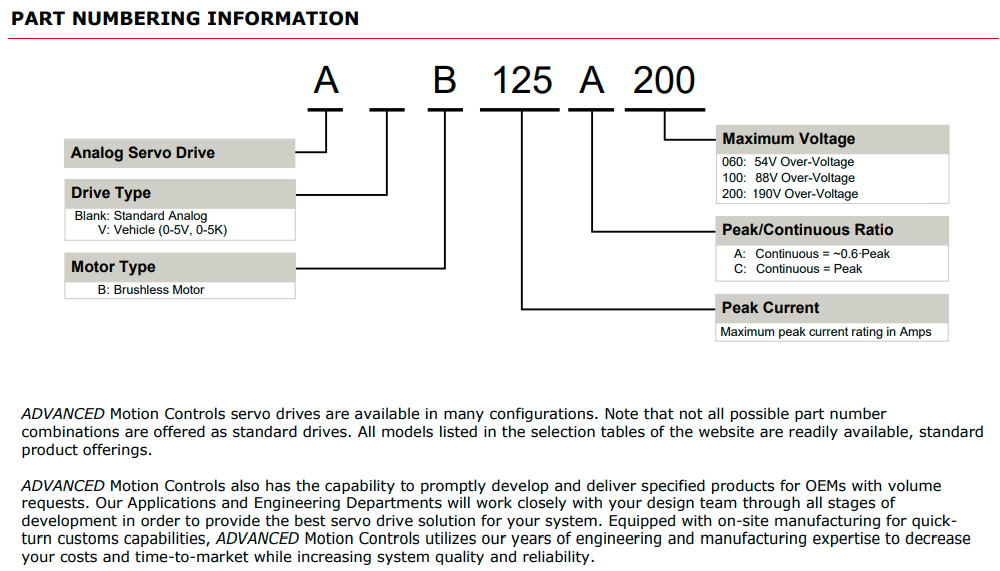

Description Ordering Information Specifications and Drawings

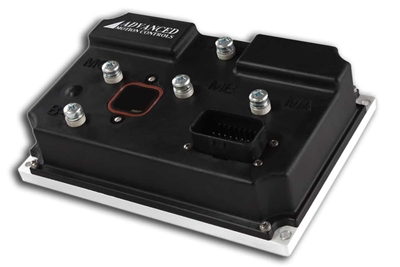

Analog M/V™ Series Vehicle Mount Servo Drive AB125A200

AB125A200 servo amplifiers are designed to drive brushless and brushed DC motors at a high switching frequency. It is fully protected against over-voltage, over-current, over-heating, under-voltage and short-circuits. This model interfaces with digital controllers or can be used as a stand-alone drive and requires only a single unregulated DC power supply or battery. A single red/green LED and a single digital output indicate operating status. Loop gain, current limit, input gain, and offset can be adjusted using 14-turn potentiometers. The offset adjusting potentiometer can also be used as an on-board input signal for testing purposes. It will accept tachometer input, quadrature encoder inputs, or Hall sensor inputs for velocity control.

The AB125A200 AxCent™ vehicle mount servo drive is a motor controller that is targeted for electric vehicular platforms and mobile applications and offers high bandwidth and quick response times.

Specifications:

Current Continuous (A)080
Current Peak (A)125
DC Supply Voltage (VDC)40 - 175
Weight (g)1638
Size (mm)203.2 x 139.7 x 59.7

Downloads:

Datasheet_AB125A200.pdf
HWManual_AnalogDrives.pdf
Product-Identification.pdf
Instructional Videos:
Tips for Proper Wiring and Reducing EMI (Noise)
Axcent Current Loop tuning
Manual commutation
