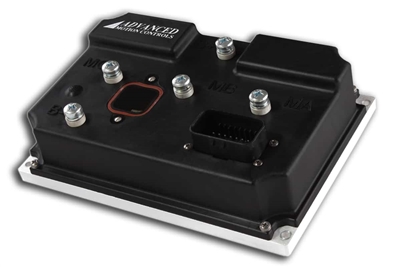

Analog M/V™ Series Vehicle Mount Servo Drive AB200A100
AB200A100 servo amplifiers are designed to drive brushless and brushed DC motors at a high switching frequency. It is fully protected against over-voltage, over-current, over-heating, under-voltage and short-circuits. This model interfaces with digital controllers or can be used as a stand-alone drive and requires only a single unregulated DC power supply or battery. A single red/green LED and a single digital output indicate operating status. Loop gain, current limit, input gain, and offset can be adjusted using 14-turn potentiometers. The offset adjusting potentiometer can also be used as an on-board input signal for testing purposes. It will accept tachometer input, quadrature encoder inputs, or Hall sensor inputs for velocity control.
The AB200A100 AxCent™ vehicle mount servo drive is a motor controller that is targeted for electric vehicular platforms and mobile applications and offers high bandwidth and quick response times.

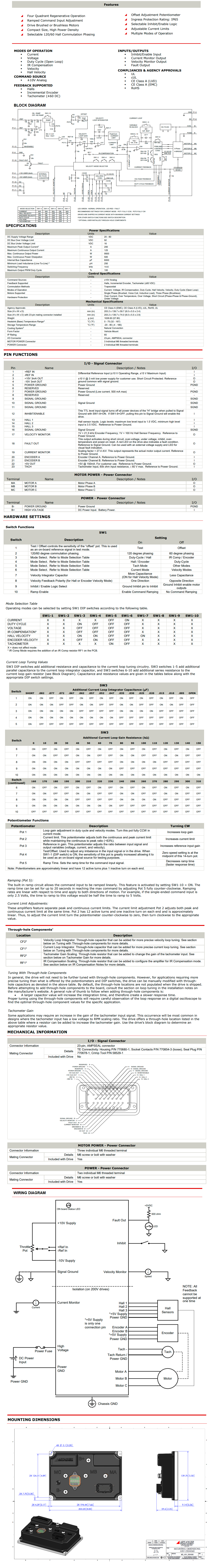

Specifications:
Downloads:Datasheet_AB200A100.pdfHWManual_AxCent_Vehicle.pdfProduct-Identification.pdf
Instructional Videos:Tips for Proper Wiring and Reducing EMI (Noise)Axcent Current Loop tuningManual commutation
