AMC: Analog PWM AxCent™ Servo Drive AZB10A4
AMC: Analog PWM DC Brush/Brushless Servo Drive AZB10A4
AZB10A4

Analog AxCent™ PCB Mount Servo Drive Servo Drive AZB10A4 (05A rated current, 10A peak current,10 - 36 VDC)

Price: (Members Only)

Quantity in Stock:15

Availability: Usually Ships in 1 to 2 Weeks
Order #: AZB10A4
Qty:

Description Ordering Information Specifications and Drawings

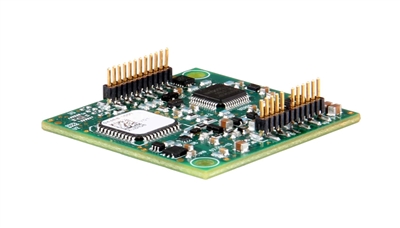

Analog PWM AxCent™ Servo Drive AZB10A4

The AZB10A4 PWM servo drive is designed to drive brushless and brushed DC motors at a high switching frequency. To increase system reliability and to reduce cabling costs, the drive is designed for direct integration into your PCB. The AZB10A4 is fully protected against over-voltage, under-voltage, overcurrent, over-heating, and short-circuits. A single digital output indicates operating status. The drive interfaces with digital controllers that have analog ±10V output. This servo drive requires only a single unregulated isolated DC power supply, and is fully RoHS II (Reduction of Hazardous Substances) compliant.

The AZB10A4 AxCent™ pcb mount servo motor drive is targeted for centralized control and offers high bandwidth and quick response times.

Specifications:

Current Continuous (A)5
Current Peak (A)10
DC Supply Voltage (VDC)10 - 36
Network CommunicationNone
Size (mm)38.1 x 38.1 x 7.34
Weight (g)8.5

Downloads:

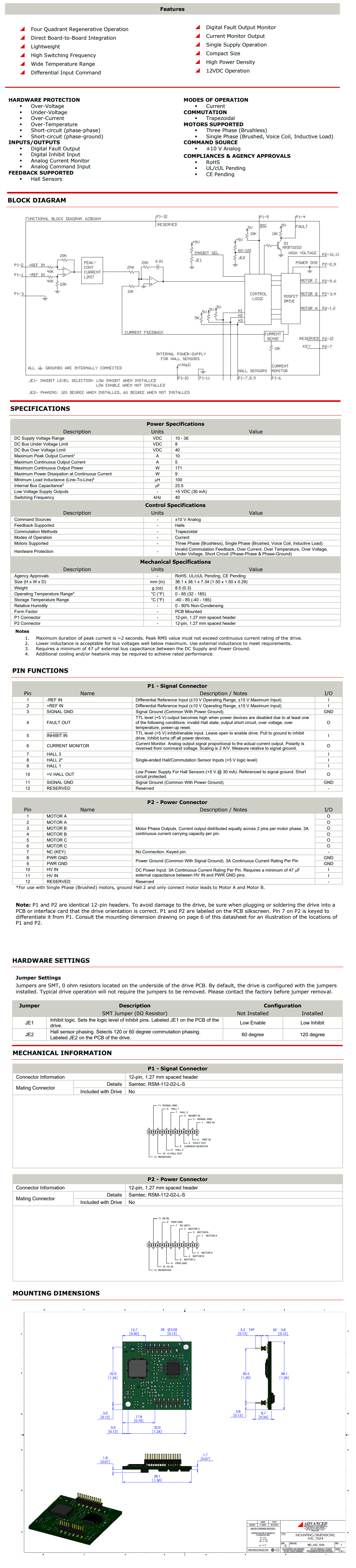

Datasheet_AZB10A4.pdf

HWManual_AxCent_PCB.pdf

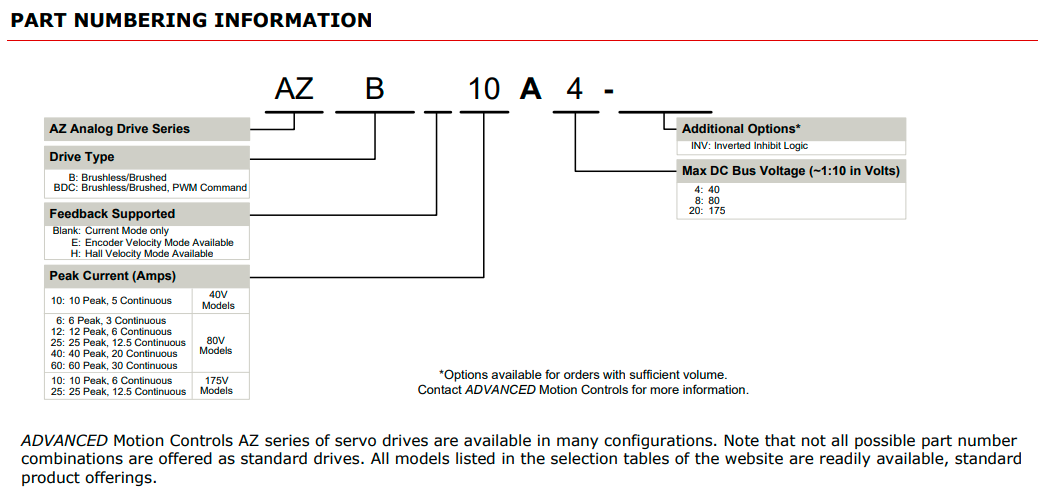

Product-Identification.pdf
Instructional Videos:
Manual commutation
Axcent Current Loop tuning
Tips for Proper Wiring and Reducing EMI (Noise)


Share your knowledge of this product. Be the first to write a review »
