Analog AxCent™ PWM Servo Drive AZB25A20

The AZBDC25A20 PWM servo drive is designed to drive brushless and brushed DC motors at a high switching frequency. To increase system reliability and to reduce cabling costs, the drive is designed for direct integration into your PCB. The AZBDC25A20 is fully protected against over-voltage, under-voltage, overcurrent, over-heating and short-circuits. A single digital output indicates operating status. The drive interfaces with digital controllers that have digital PWM output. The PWM IN duty cycle determines the output current and DIR input determines the direction of rotation. This servo drive requires only a single unregulated isolated DC power supply, and is fully RoHS II (Reduction of Hazardous Substances) compliant.

The AZBDC25A20 AxCent™ pcb mount servo motor drive is targeted for centralized control and offers high bandwidth and quick response times.

Specifications:

Downloads:

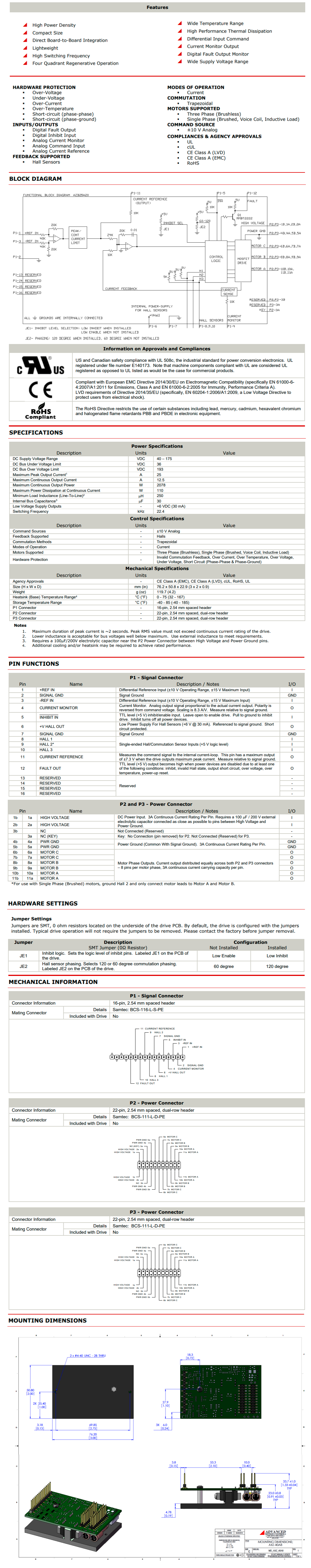

Datasheet_AZB25A20.pdf
HWManual_AxCent_PCB.pdf

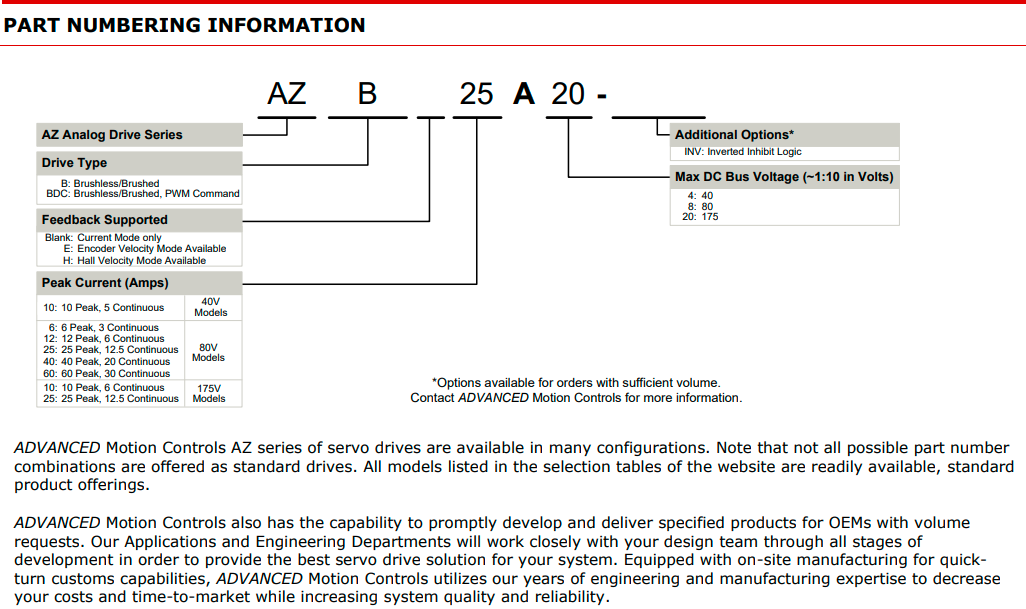

Product-Identification.pdf

Software Downloads:
SW_QuickReference_ACE.pdf
SW_Manual_ACE.pdf
Instructional Videos:
Manual commutation
Axcent Current Loop tuning
Tips for Proper Wiring and Reducing EMI (Noise)
