Analog PWM AxCent™ Servo Drive AZBDC10A4

The AZBDC10A4 PWM servo drive is designed to drive brushless and brushed DC motors at a high switching frequency. To increase system reliability and to reduce cabling costs, the drive is designed for direct integration into your PCB. The AZBDC10A4 is fully protected against over-voltage, under-voltage, overcurrent, over-heating, and short-circuits. A single digital output indicates operating status. The drive interfaces with digital controllers that have digital PWM output. The PWM IN duty cycle determines the output current and DIR input determines the direction of rotation. This servo drive requires only a single unregulated isolated DC power supply, and is fully RoHS II (Reduction of Hazardous Substances) compliant.

The AZBDC10A4 AxCent™ pcb mount servo motor drive is targeted for centralized control and offers high bandwidth and quick response times.

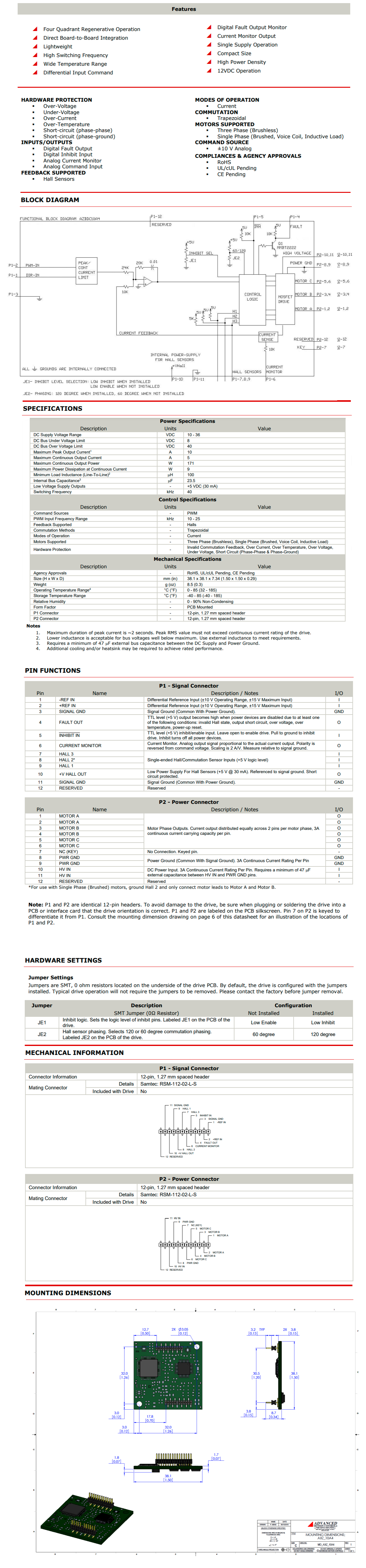

Specifications:

Downloads:
Datasheet_AZBDC10A4.pdf
HWManual_AxCent_PCB.pdf

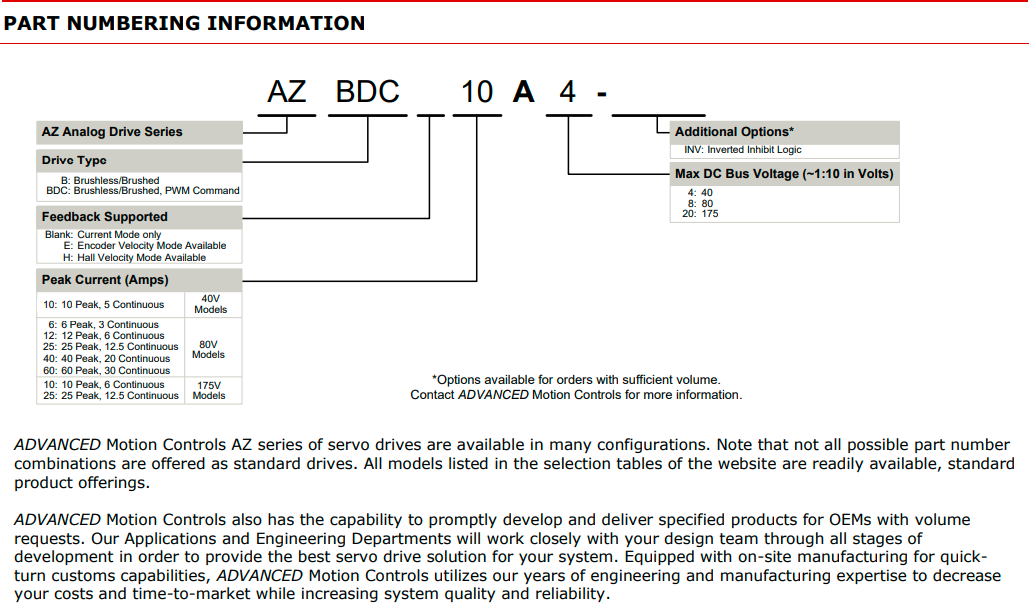

Product-Identification.pdf
