Analog AxCent™ PWM Servo Drive AZBDC25A20

The AZB25A20 PWM servo drive is designed to drive brushless and brushed DC motors at a high switching frequency. To increase system reliability and to reduce cabling costs, the drive is designed for direct integration into your PCB. The AZB25A20 is fully protected against over-voltage, under-voltage, overcurrent, over-heating and short-circuits. A single digital output indicates operating status. The drive interfaces with digital controllers that have analog ±10V output. This servo drive requires only a single unregulated isolated DC power supply, and is fully RoHS II (Reduction of Hazardous Substances) compliant.

The AZB25A20 AxCent™ pcb mount servo motor drive is targeted for centralized control and offers high bandwidth and quick response times.

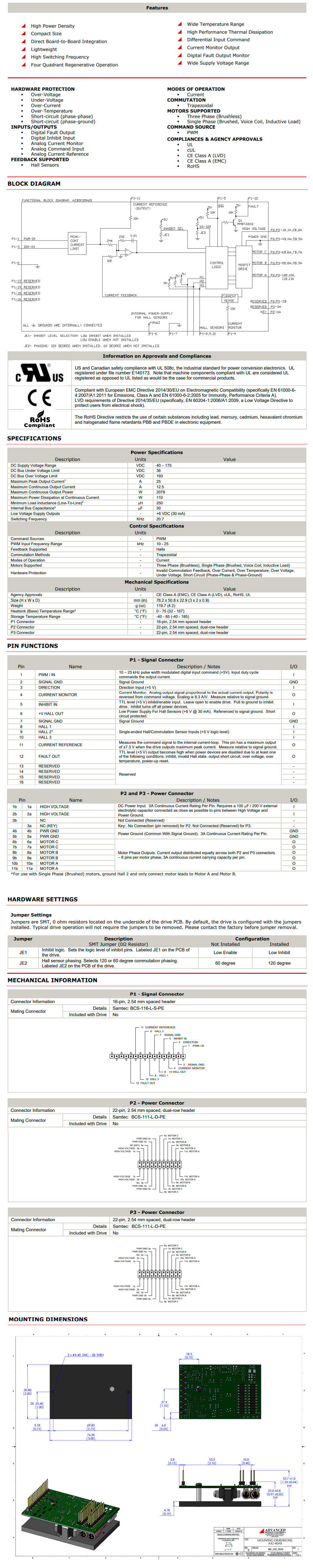

Specifications:

Downloads:
Datasheet_AZBDC25A20.pdf
HWManual_AxCent_PCB.pdf

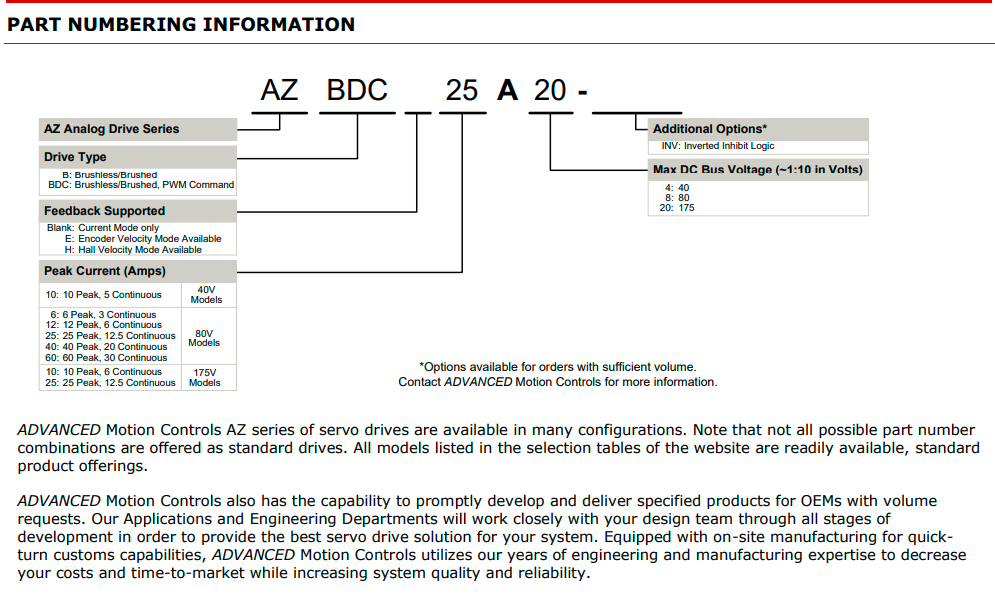

Product-Identification.pdf

Software Downloads:
SW_QuickReference_ACE.pdf
SW_Manual_ACE.pdf
Instructional Videos:
Manual commutation
Axcent Current Loop tuning
Tips for Proper Wiring and Reducing EMI (Noise)
