AMC: Analog AxCent™ PWM Servo Drive AZBDC60A8
AMC: Analog PWM DC Brush/Brushless Servo Drive AZBDC60A8
AZBDC60A8

Analog AxCent™ PCB Mount Servo Drive AZBDC60A8 (30A rated current,60A peak current,10 - 80 VDC)

Price: (Members Only)


Availability: Lead time 10 - 12 weeks
Order #: AZBDC60A8
Qty:

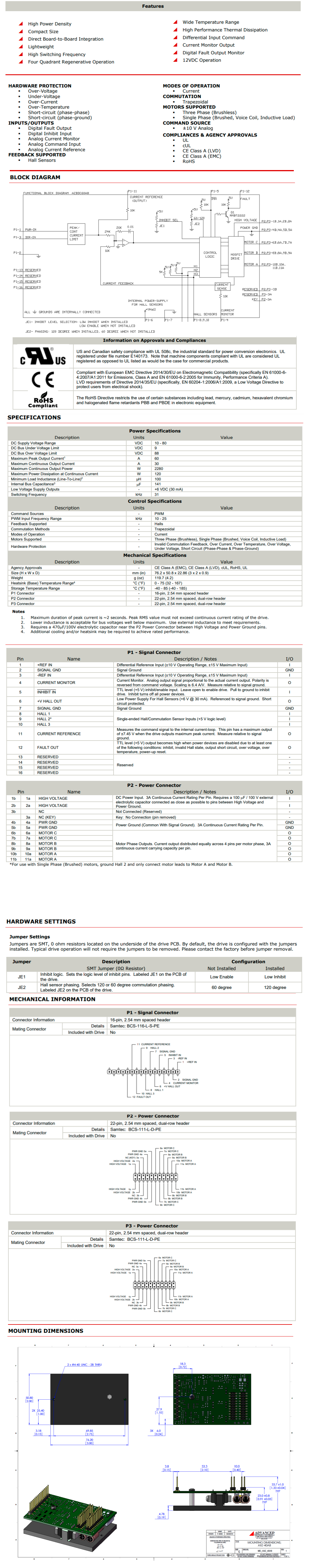

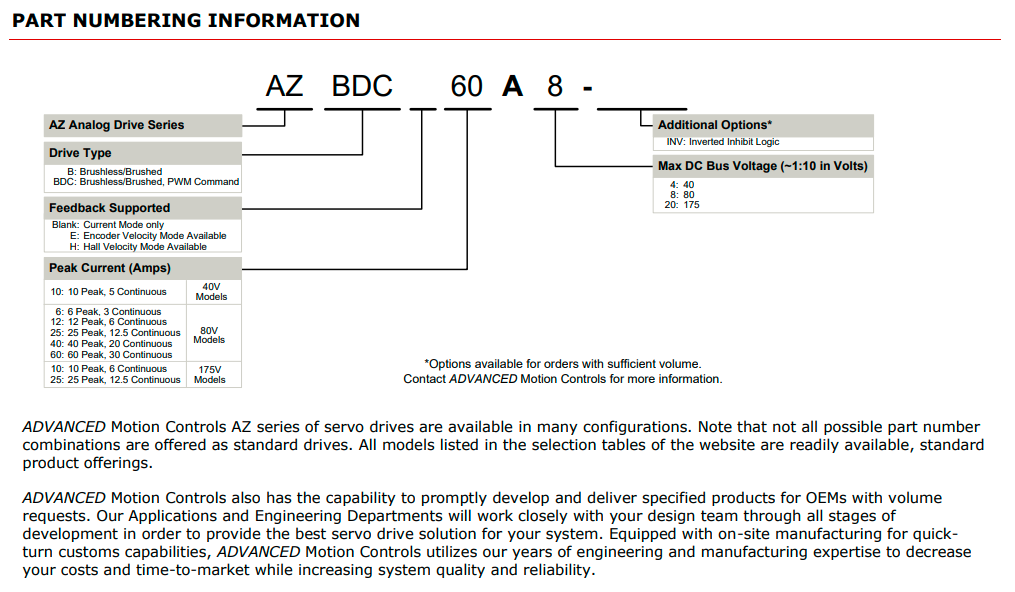

Description Ordering Information Specifications and Drawings


Analog AxCent™ PWM Servo Drive AZBDC60A8

The AZBDC60A8 PWM servo drive is designed to drive brushless and brushed DC motors at a high switching frequency. To increase system reliability and to reduce cabling costs, the drive is designed for direct integration into your PCB. The AZBDC60A8 is fully protected against over-voltage, over-current, overheating, and short-circuits. A single digital output indicates operating status. The drive interfaces with digital controllers that have analog +/-10V output. This servo drive requires only a single unregulated isolated DC power supply, and is fully RoHS II (Reduction of Hazardous Substances) compliant.

The AZBDC60A8 AxCent™ pcb mount servo motor drive is targeted for centralized control and offers high bandwidth and quick response times.

Specifications:

Current Continuous (A)30
Current Peak (A)60
DC Supply Voltage (VDC)10 - 80
Network CommunicationNone
Size (mm)76.2 x 50.8 x 22.9
Weight (g)119

Downloads:
Datasheet_AZBDC60A8.pdf
HWManual_AxCent_PCB.pdf

Product-Identification.pdf
Instructional Videos:
Manual commutation
Axcent Current Loop tuning
Tips for Proper Wiring and Reducing EMI (Noise)
