The AZBE60A8 PWM servo drive is designed to drive brushless and brushed DC motors at a high switching frequency. To increase system reliability and to reduce cabling costs, the drive is designed for direct integration into your PCB. The AZBE60A8 is fully protected against over-voltage, over-current, overheating, and short-circuits. A single digital output indicates operating status. The drive interfaces with digital controllers that have analog +/-10V output. This servo drive requires only a single unregulated isolated DC power supply, and is fully RoHS II (Reduction of Hazardous Substances) compliant.

The AZBE60A8 AxCent™ pcb mount servo motor drive is targeted for centralized control and offers high bandwidth and quick response times.

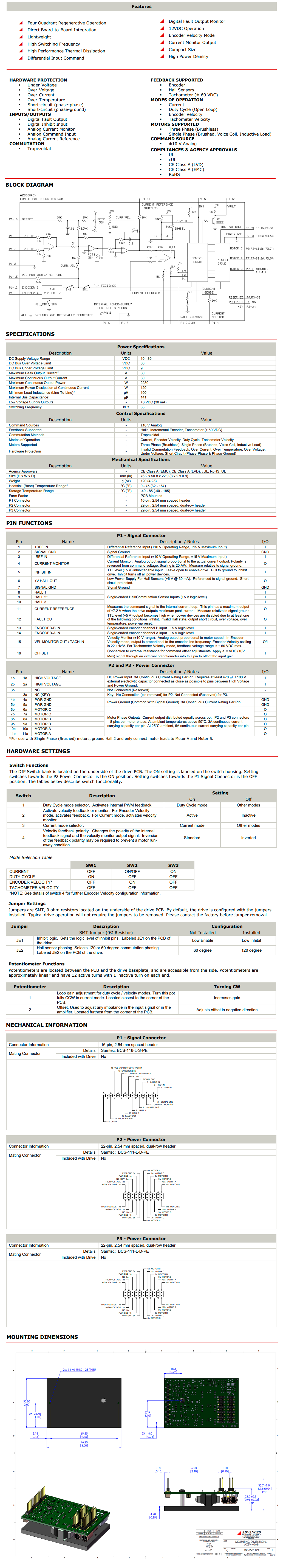

Specifications:

Downloads:
Datasheet_AZBE60A8.pdf
HWManual_AxCent_PCB.pdf
Product-Identification.pdf
Instructional Videos:
Manual commutation
Axcent Current Loop tuning
Tips for Proper Wiring and Reducing EMI (Noise)
