AMC: Analog AxCent™ PWM Servo Drive AZBH20A8
AMC: Analog PWM DC Brush/Brushless Servo Drive AZBH20A8
AZBH20A8

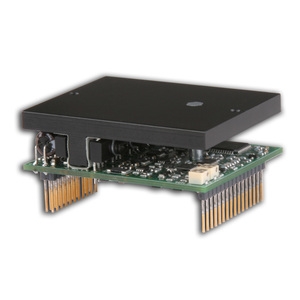

Analog AxCent™ PCB Mount Servo Drive AZBH20A8 (12A rated current, 20A peak current,10 - 80 VDC)

Price: (Members Only)


Availability: Lead time 10 - 12 weeks
Order #: AZBH20A8
Qty:

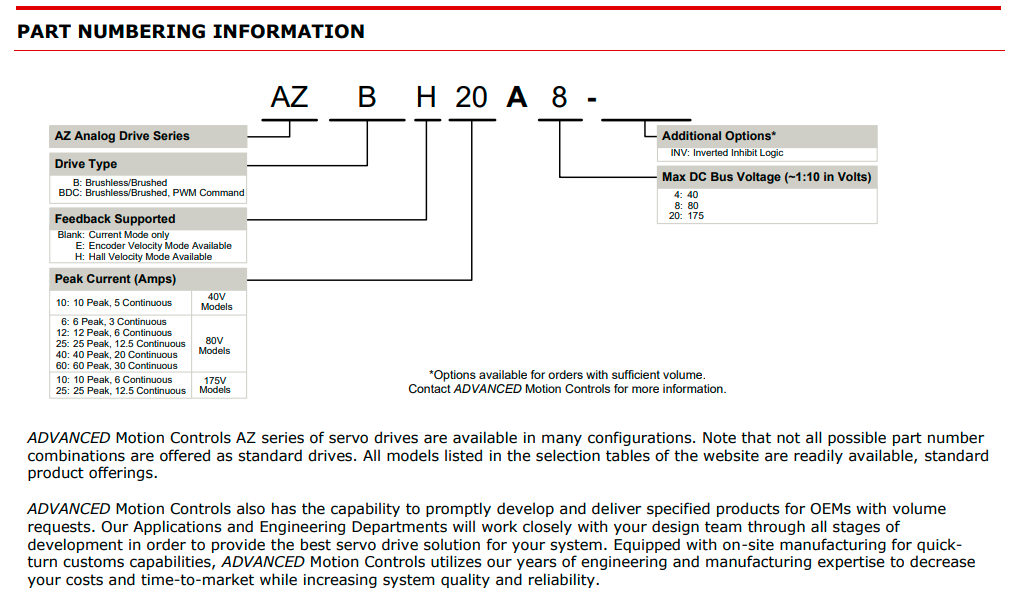

Description Ordering Information Specifications and Drawings


Analog Embedded AxCent™ Servo Drive AZBH20A8
The AZBH20A8 servo drive is designed to drive brushless and brushed DC motors at a high switching frequency. To increase system reliability and to reduce cabling costs, the drive is designed for direct integration into your PCB. The AZBH20A8 is fully protected against overvoltage, under-voltage, over-current, over-heating, invalid commutation, and short circuits. A single digital output indicates operating status. The drive interfaces with digital controllers that have analog +/-10V output. The AZBH20A8 can utilize either Hall Sensor or Tachometer feedback for velocity control. This servo drive requires only a single unregulated isolated DC power supply, and is fully RoHS II (Reduction of Hazardous Substances) compliant.

The AZBH20A8 AxCent™ pcb mount servo motor drive is targeted for centralized control and offers high bandwidth and quick response times.

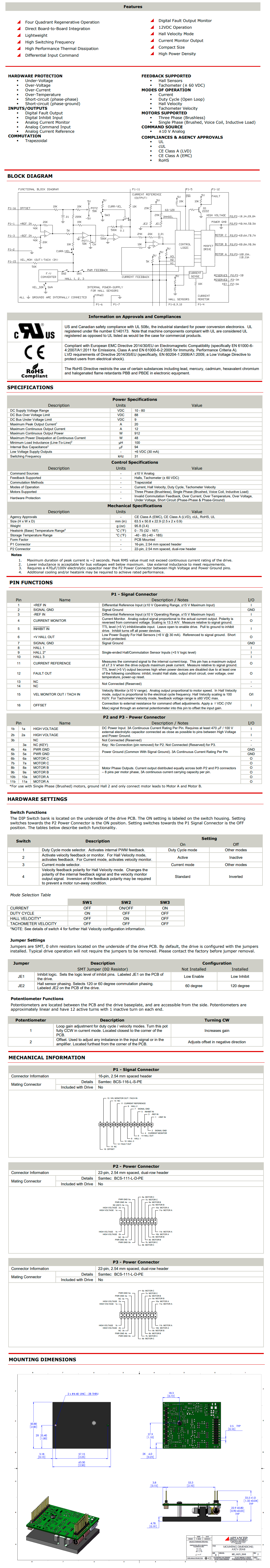

Specifications:

Current Continuous (A)12
Current Peak (A)20
DC Supply Voltage (VDC)10 - 80
Network CommunicationNone
Size (mm)63.5 x 50.8 x 22.9
Weight (g)94.5
Downloads:
Datasheet_AZBH20A8.pdf
HWManual_AxCent_PCB.pdf
Product-Identification.pdf
Instructional Videos:
Manual commutation
Axcent Current Loop tuning
Tips for Proper Wiring and Reducing EMI (Noise)

Share your knowledge of this product. Be the first to write a review »
