AMC: Analog AxCent™ PWM Servo Drive AZBH6A8
AMC: Analog PWM DC Brush/Brushless Servo Drive AZBH6A8
AZBH6A8

Analog AxCent™ PCB Mount Servo Drive AZBH6A8 (03A rated current, 06A peak current,20 - 80 VDC)

Price: (Members Only)


Availability: Lead time 10 - 12 weeks
Order #: AZBH6A8
Qty:

Description Ordering Information Specifications and Drawings


Analog AxCent™ PWM Servo Drive AZBH6A8

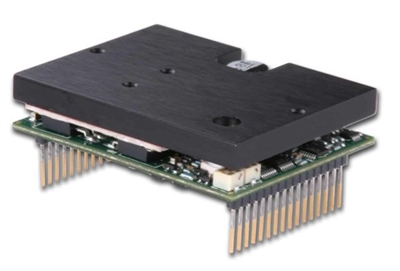

The AZBH6A8 PWM servo drive is designed to drive brushless and brushed DC motors at a high switching frequency. To increase system reliability and to reduce cabling costs, the drive is designed for direct integration into your PCB. The AZBH6A8 is fully protected against over-voltage, over-current, overheating, invalid commutation, and short-circuits. A single digital output indicates operating status. The drive interfaces with digital controllers that have analog ±10V output. The AZBH6A8 can utilize Hall Sensor feedback for velocity control. This servo drive requires only a single unregulated isolated DC power supply, and is fully RoHS II (Reduction of Hazardous Substances) compliant.

The AZBE6A8 AxCent™ pcb mount servo motor drive is targeted for centralized control and offers high bandwidth and quick response times.

Specifications:

Current Continuous (A)3
Current Peak (A)6
DC Supply Voltage (VDC)20 - 80
Network CommunicationNone
Size (mm)63.5 x 50.8 x 16.8
Weight (g)86.0

Downloads:

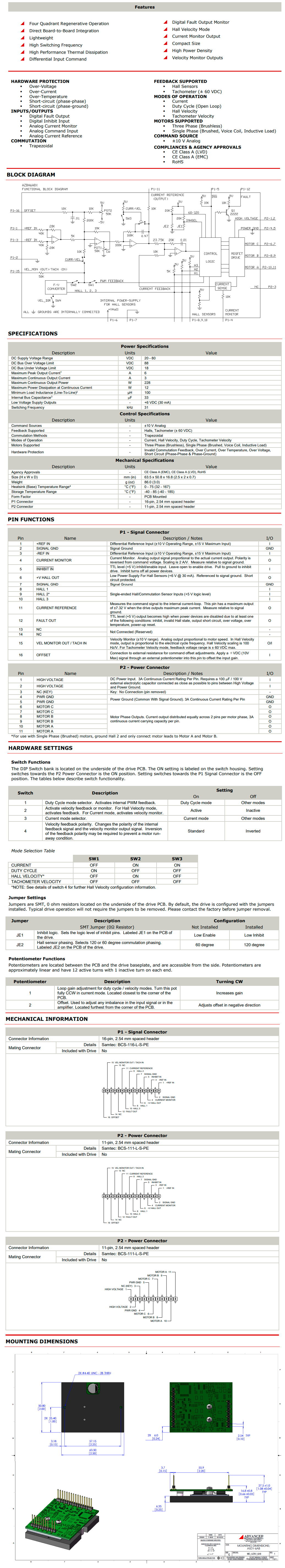

Datasheet_AZBH6A8.pdf
HWManual_AxCent_PCB.pdf

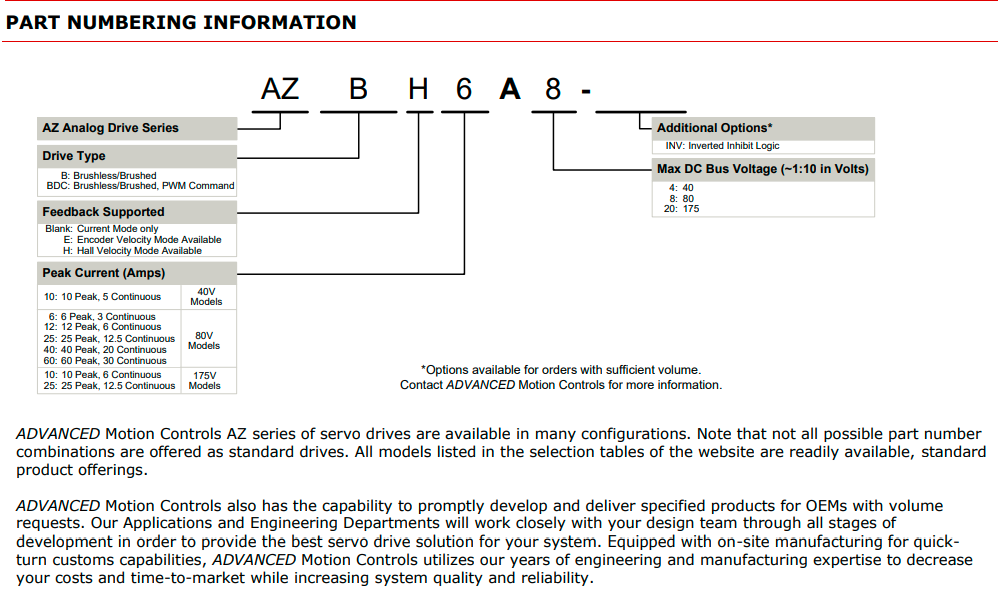

Product-Identification.pdf
