Analog PWM AxCent™ Servo Drive AZXBDC15A8

The AZXBDC15A8 PWM servo drive is designed to drive brushless and brushed DC motors at a high switching frequency. To increase system reliability and to reduce cabling costs, the drive is designed for direct integration into your PCB. The AZXBDC15A8 is fully protected against over-voltage, under-voltage, over-current, over-heating and short-circuits. A single digital output indicates operating status. The drive interfaces with digital controllers that have digital PWM output. The PWM IN duty cycle determines the output current and DIR input determines the direction of rotation. This servo drive requires only a single unregulated isolated DC power supply, and is fully RoHS II (Reduction of Hazardous Substances) compliant.

The AZXBDC15A8 AxCent™ extended environment pcb mount servo motor driver is targeted for centralized control in harsh temperatures or rugged environments, and offers high bandwidth and quick response times.

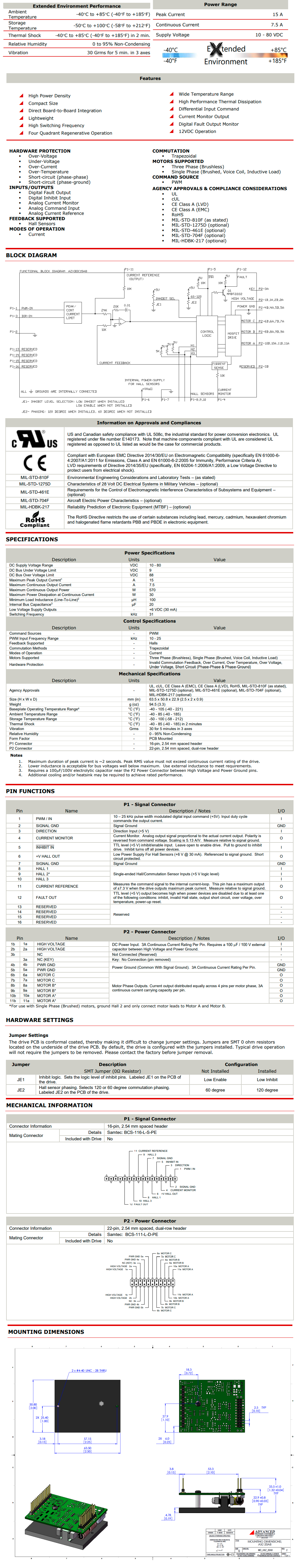

Specifications:

Downloads:
Datasheet_AZXBDC15A8.pdf
Installation of Extended Environment AxCent™ PCB mount servo
Product-Identification.pdf
Instructional Videos:
Manual commutation
Axcent Current Loop tuning
Tips for Proper Wiring and Reducing EMI (Noise)
