Analog PWM AxCent™ Servo Drive AZXBE15A8

The AZXBE15A8 PWM servo drive is designed to drive brushless and brushed DC motors at a high switching frequency. To increase system reliability and to reduce cabling costs, the drive is designed for direct integration into your PCB. The AZXBE15A8 is fully protected against over-voltage, under-voltage, over-current, overheating, invalid commutation, and short-circuits. A single digital output indicates operating status. The drive interfaces with digital controllers that have analog ±10V output. This servo drive requires only a single unregulated isolated DC power supply, and is fully RoHS II (Reduction of Hazardous Substances) compliant. The AZXBE15A8 conforms to the following specifications and is designed to the Environmental Engineering Considerations as defined in MIL-STD-810F.

The AZXBE15A8 AxCent™ extended environment pcb mount servo motor driver is targeted for centralized control in harsh temperatures or rugged environments, and offers high bandwidth and quick response times.

Specifications:

Downloads:

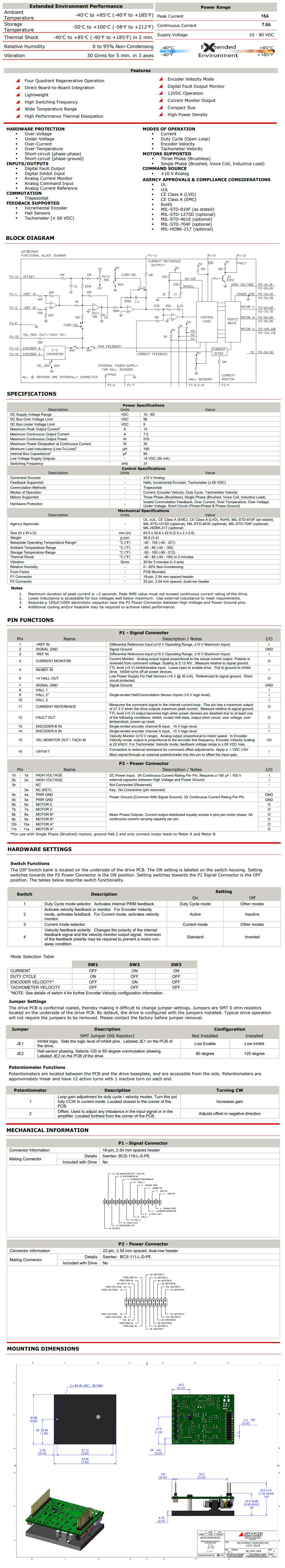

Datasheet_AZXBE15A8.pdf
Installation of Extended Environment AxCent™ PCB mount servo

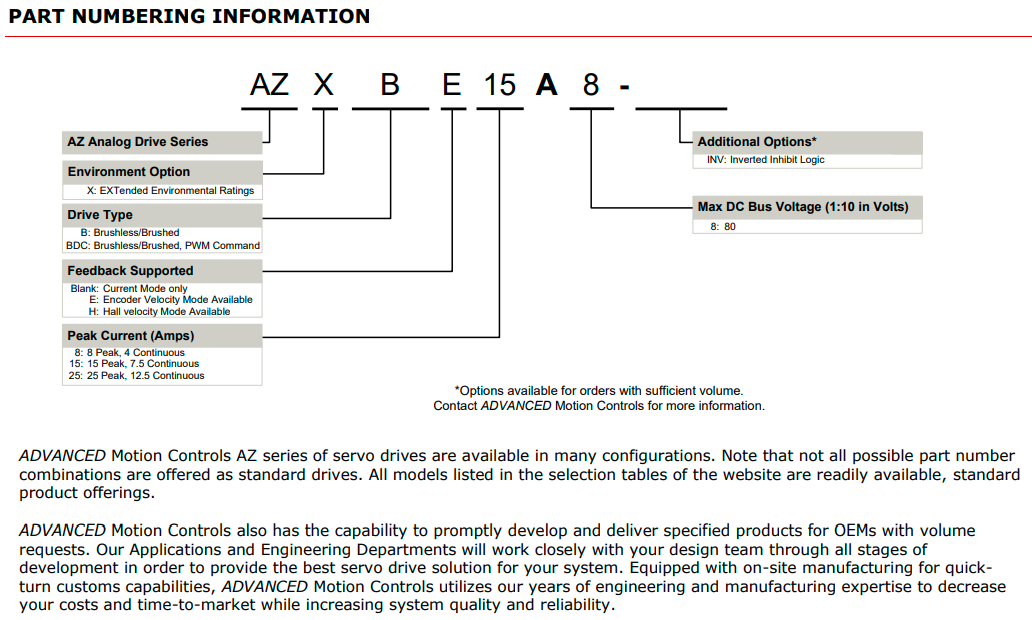

Product-Identification.pdf
Instructional Videos:
Manual commutation
Axcent Current Loop tuning
Tips for Proper Wiring and Reducing EMI (Noise)
