AMC: Analog AxCent™ extended environment Servo Drive AZXBH8A8
AMC: Analog PWM DC Brush/Brushless Servo Drive AZXBH8A8
AZXBH8A8

Analog AxCent™ PCB Mount PWM Servo Drive AZXBH8A8 (4A rated current, 8A peak current,10 - 80 VDC)

Price: (Members Only)


Availability: Lead time 10 - 12 weeks
Order #: AZXBH8A8
Qty:

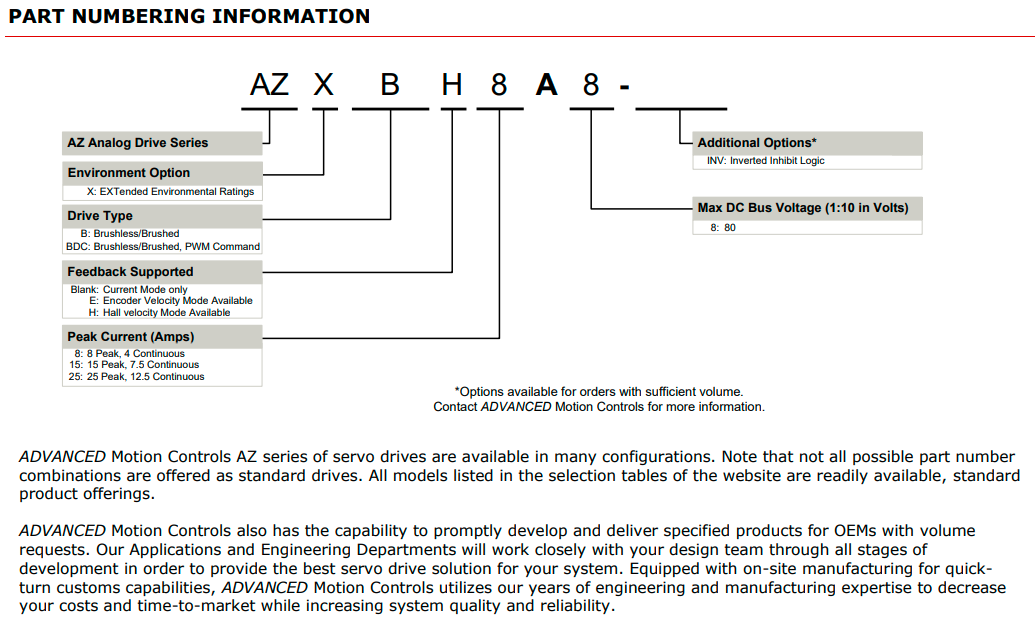

Description Ordering Information Specifications and Drawings


Analog PWM AxCent™ Servo Drive AZXBH8A8

The AZXBH8A8 PWM servo drive is designed to drive brushless and brushed DC motors at a high switching frequency. To increase system reliability and to reduce cabling costs, the drive is designed for direct integration into your PCB. The AZXBH8A8 is fully protected against over-voltage, under-voltage, over-current, overheating, invalid commutation, and short-circuits. A single digital output indicates operating status. The drive interfaces with digital controllers that have analog ±10V output. The AZXBH8A8 can utilize either Hall Sensor or Tachometer feedback for velocity control. This servo drive requires only a single unregulated isolated DC power supply, and is fully RoHS II (Reduction of Hazardous Substances) compliant.

The AZXBH15A8 AxCent™ extended environment pcb mount servo motor driver is targeted for centralized control in harsh temperatures or rugged environments, and offers high bandwidth and quick response times.

Specifications:

Current Continuous (A)4
Current Peak (A)8
DC Supply Voltage (VDC)10 - 80
Network CommunicationNone
Size (mm)63.5 x 50.8 x 22.9
Weight (g)94.5
Downloads:
Datasheet_AZXBH8A8.pdf
Installation of Extended Environment AxCent™ PCB mount servo
Product-Identification.pdf
Instructional Videos:
Manual commutation
Axcent Current Loop tuning
Tips for Proper Wiring and Reducing EMI (Noise)
