AMC: Analog AxCent™ PWM DC Brushless Servo Drive B30A40AC
AMC: Analog AxCentâ„¢ Panel Mount Servo Drive B30A40AC
B30A40AC

Analog AxCent™ Panel Mount Servo Drive B30A40AC (15A rated current, 30A peak current, 45 - 265 VAC)

Price: (Members Only)

Quantity in Stock:6

Availability: Usually Ships in 3 to 5 Business Days
Order #: B30A40AC
Qty:

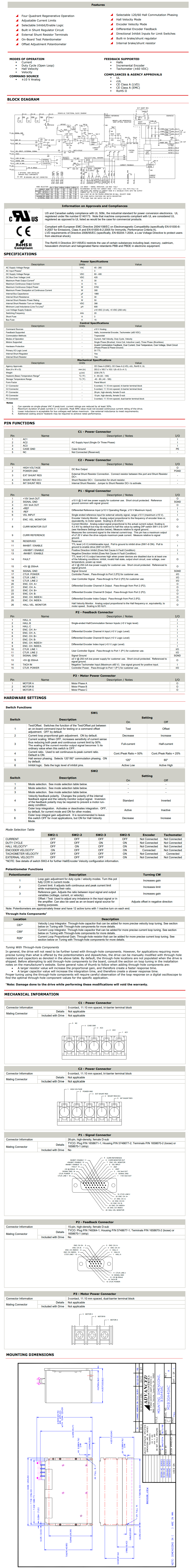

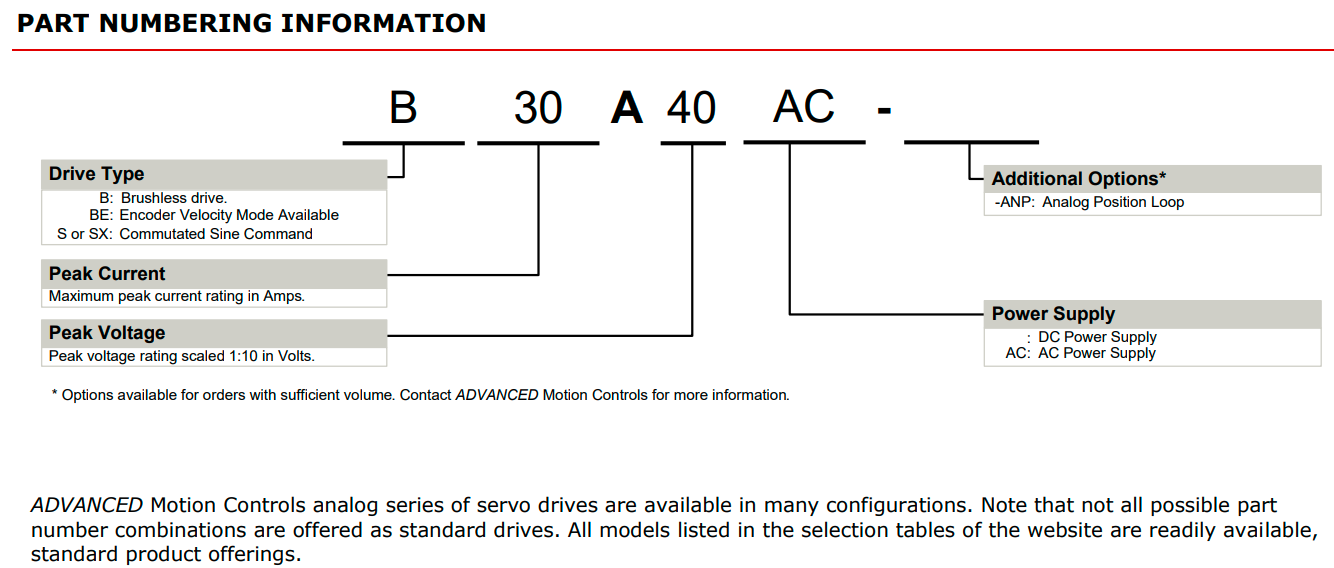

Description Ordering Information Specifications and Drawings

Analog PWM DC Brushless Servo Drive B30A40AC

The B30A40AC PWM servo drive is designed to drive brushless DC motors at a high switching frequency. A single red/green LED indicates operating status. The drive is fully protected against over-voltage, under voltage, over-current, over-heating and short-circuits across motor, ground and power leads. Furthermore, the drive can interface with digital controllers or be used stand-alone and requires only a single unregulated AC power supply. Loop gain, current limit, input gain and offset can be adjusted using 14-turn potentiometers. The offset adjusting potentiometer can also be used as an on-board input signal for testing purposes.

The B30A40AC AxCent™ panel mount servo drive is targeted for centralized control and offers high bandwidth and quick response times.

Specifications:
Rated current (A)15
Peak current (A)30
DC supply voltage (VDC)60 - 400
AC supply voltage (VAC)

45 - 265

Telecommunicationnone
Dimensions (mm)

203.2 x 165.7 x 103.1

Weight (g)2230
Downloads:
Datasheet_B30A40AC.pdf
HWManual_AxCent_Panel.pdf
Axcent-Retrofit-Small.pdf
AxCent Retrofit - Large Size
Product-Identification.pdf
Instructional Videos:
Manual commutation
Axcent Current Loop tuning
Tips for Proper Wiring and Reducing EMI (Noise)
