AMC China: Harsh Environment CANopen Servo Drive CPCANTE-008B080X
AMC China:Harsh Environment CANopen Servo Drive,CPCANTE-008B080X

Alternate View


Contact us for quantity price

Price: (Members Only)


Availability: Usually Ships in 2 to 3 Weeks

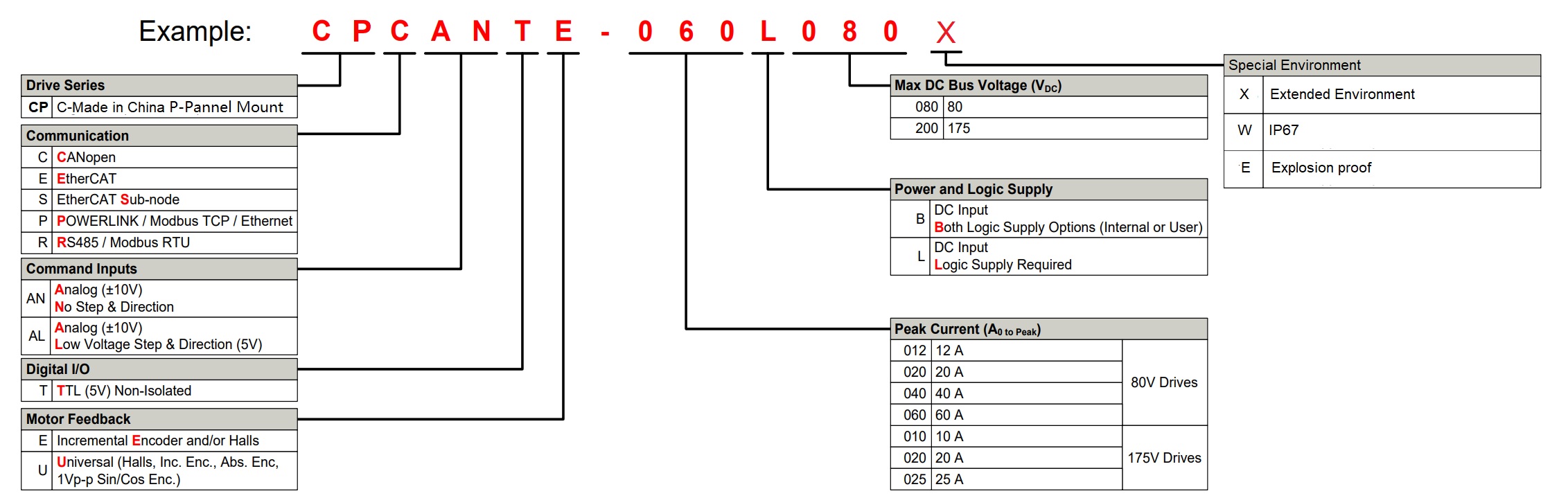

Order #: CPCANTE-008B080X
Qty:

Description Ordering Information Specifications and Drawings

Description
The CPCANTE-008B080X DigiFlex® Performance™ panel mount servo drive offers full tuning control of all servo loops and is designed for distributed or centralized servo systems. This servo drive utilizes CANopen® communication and is commissioned with DriveWare® via an RS-232 interface.

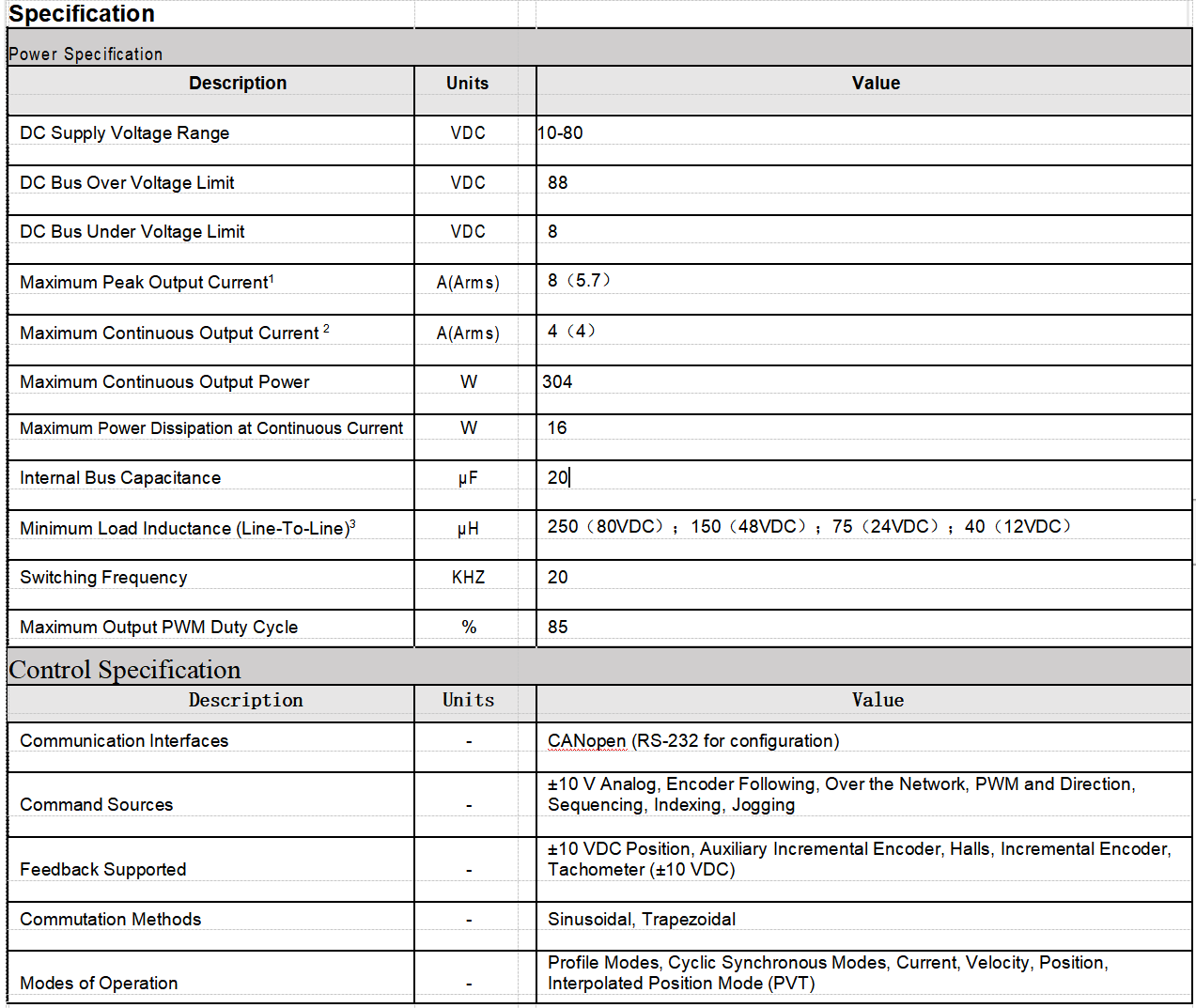

SPECIFICATIONS

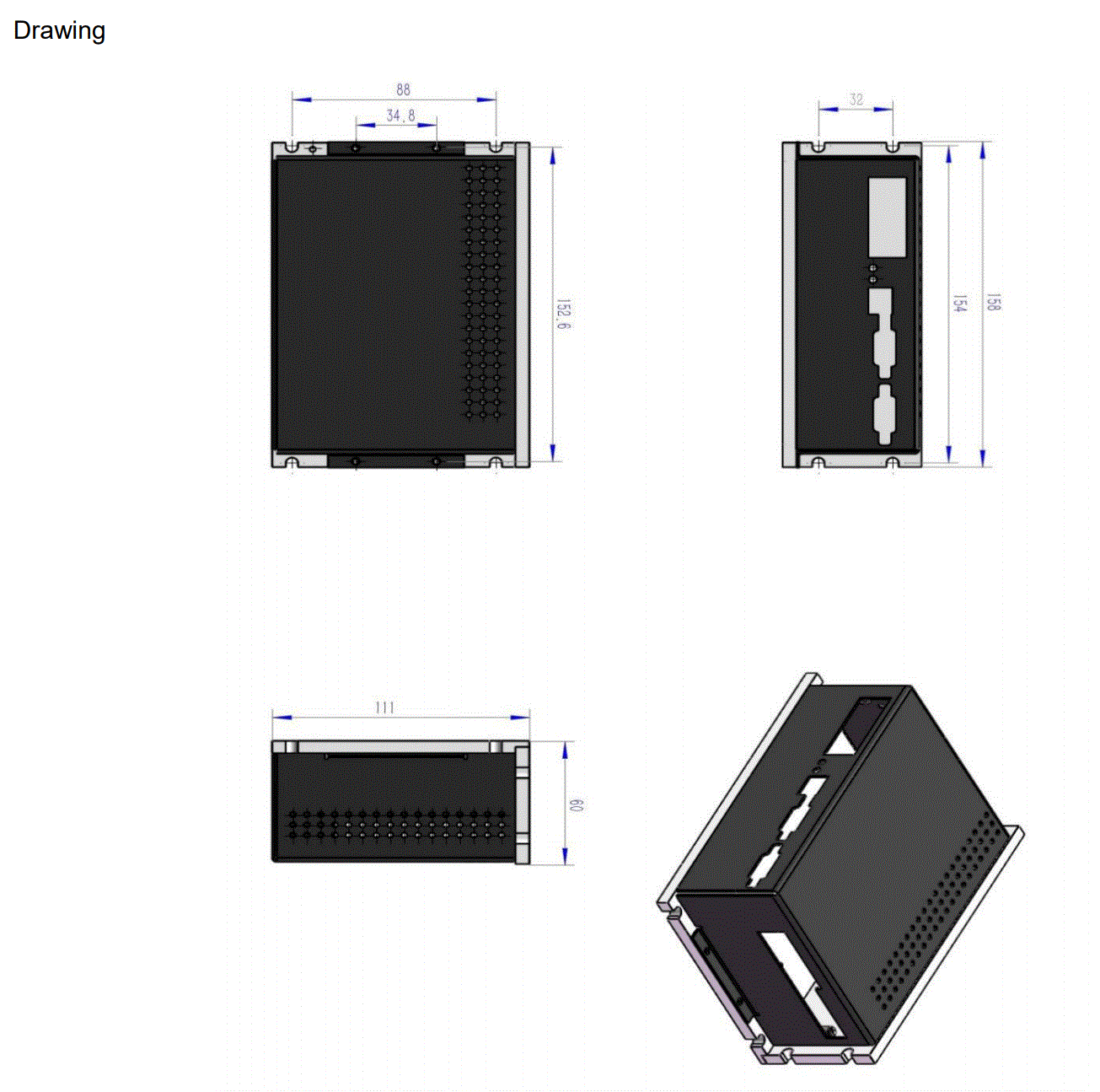

Size (mm)158 x 111 x 60
Weight (g)900
Rated Power Continuous (kW)0.32
Rated Power Peak (kW)0.64
Current Continuous (A)4.0
Current Peak (A)8.0
DC Supply Voltage (VDC)10 - 80
Network CommunicationCANopen

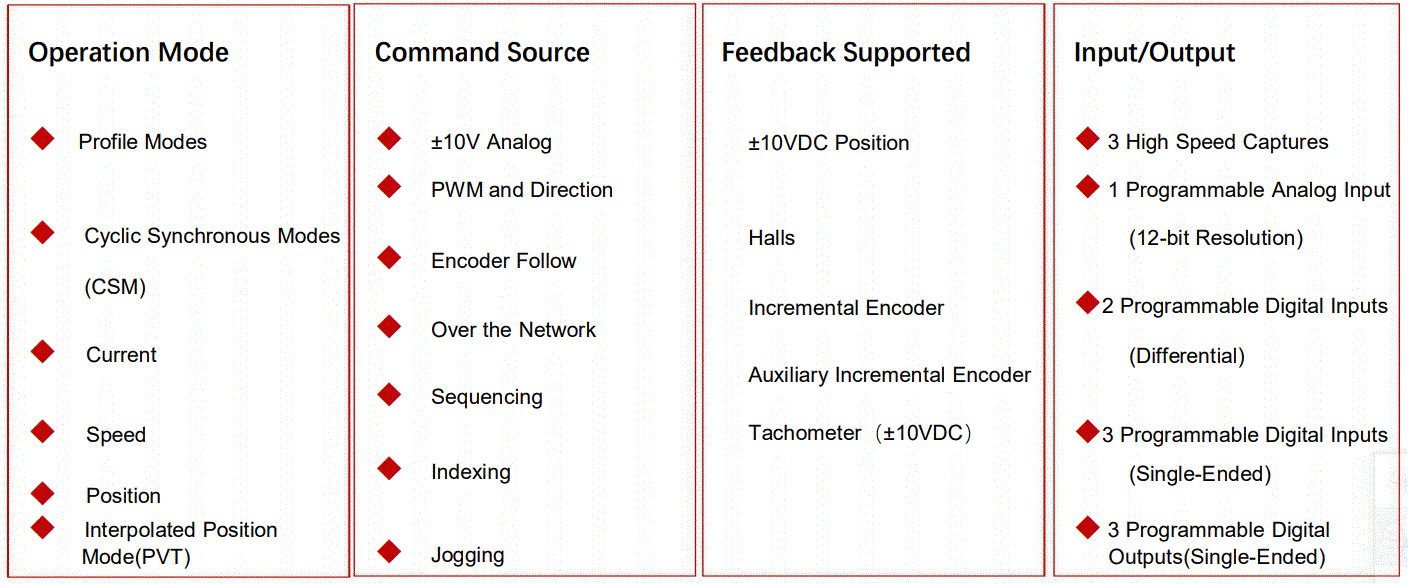

CONTROL/COMMAND

  • ±10 V Analog
  • Encoder Following
  • Indexing
  • Jogging
  • Over the Network
  • PWM and Direction
  • Sequencing

PRIMARY FEEDBACK

  • ±10 VDC Position
  • Halls
  • Incremental Encoder
  • Tachometer (±10 VDC)

OPERATING MODE

  • Interpolated Position Mode (PVT)
  • Profile Modes
  • Cyclic Synchronous Modes
  • Current
  • Position
  • Velocity

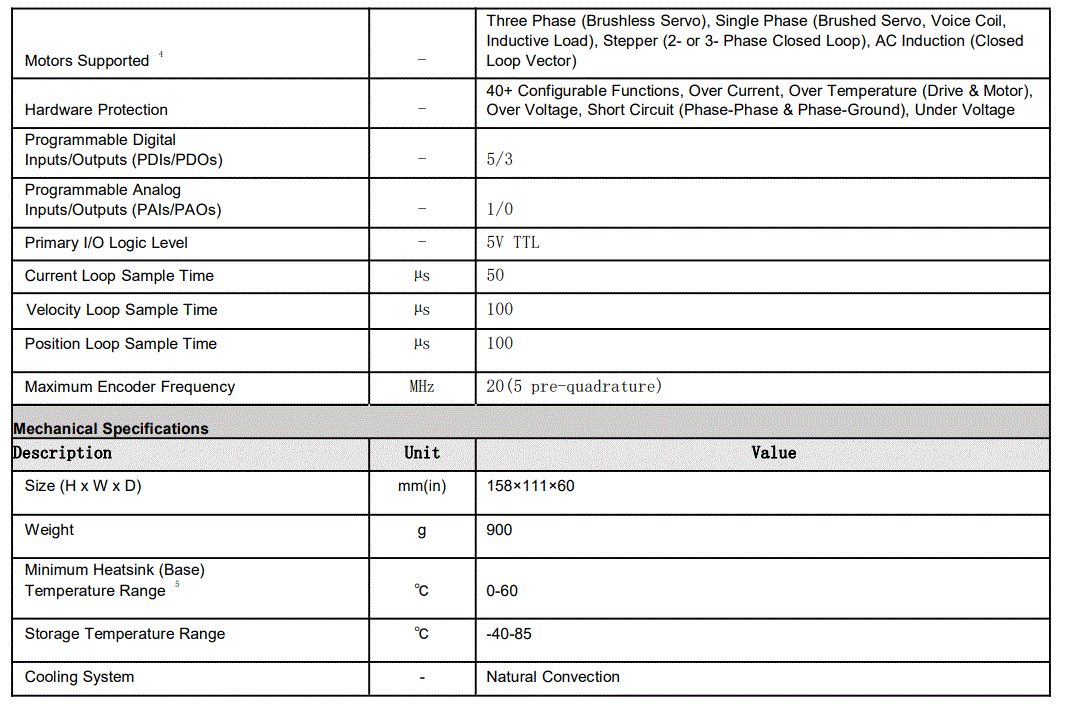

MOTOR TYPE

  • Three Phase (Brushless)
  • Single Phase (Brushed)
  • AC Induction
  • Stepper



Support Links

Communication Manual
CANopen Communication and Object Dictionary for DigiFlex® Performance™ servo drives
Device Description File
CANopen EDS device description file
Hardware Manual
Installation of DigiFlex® Performance™ CANopen servo drive
