AMC: DigiFlex® Performance™ CANopen Servo Drive Supports Absolute Feedback DPCANIA-C060A400

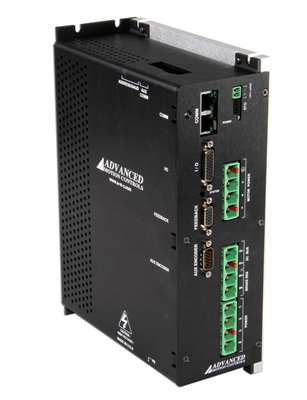

AMC: DigiFlex® Performance™ CANopen Servo Drive DPCANIA-C060A400
DPCANIA-C060A400

DigiFlex® Performance™ CANopen Servo Drive, Absolute Encoder, 30A rated current,60A peak current, 200-240 VAC

Price: (Members Only)


Availability: Leadtime 26-28 weeks
Order #: DPCANIA-C060A400
Qty:

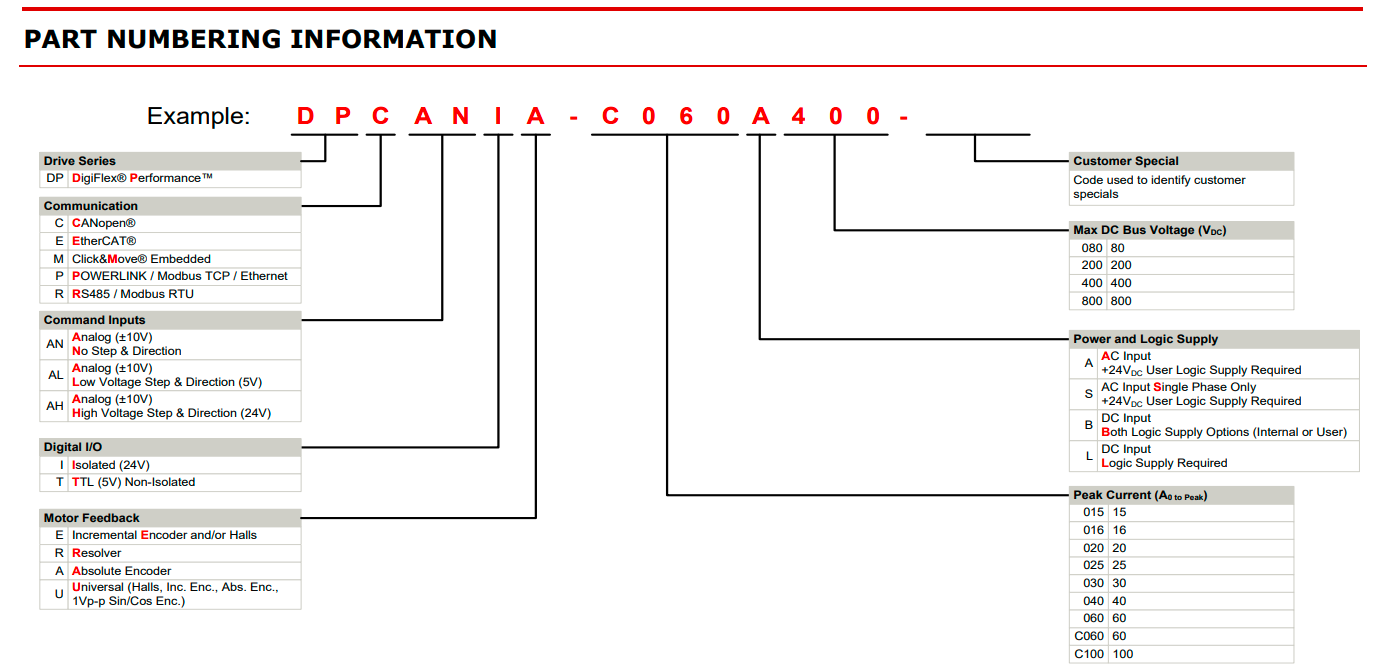

Description Ordering Information Specifications and Drawings


AMC: DigiFlex® Performance™ CANopen Servo Drive DPCANIA-C060A400

The DigiFlex® Performance™ (DP) Series digital servo drives are designed to drive brushed and brushless servomotors, stepper motors, and AC induction motors. These fully digital drives operate in torque, velocity, or position mode and employ Space Vector Modulation (SVM), which results in higher bus voltage utilization and reduced heat dissipation compared to traditional PWM. The drive can be configured for a variety of external command signals. Commands can also be configured using the drive’s built-in Motion Engine, an internal motion controller used with distributed motion applications. In addition to motor control, these drives feature dedicated and programmable digital and analog inputs and outputs to enhance interfacing with external controllers and devices.

This DP Series drive features a CANopen interface for networking and a RS-232 interface for drive configuration and setup. Drive commissioning is accomplished using DriveWare® 7, available for download at www.a-m-c.com.

All drive and motor parameters are stored in nonvolatile memory. The DPC Series Hardware Installation Manual is available for download at www.a-m-c.com.

The DPCANIA-C060A400 DigiFlex® Performance™ panel mount servo drive offers full tuning control of all servo loops and is designed for distributed or centralized servo systems. This servo drive utilizes CANopen® communication and is commissioned with DriveWare® via an RS-232 interface.

Specifications:


Current Continuous (A)30
Current Peak (A)60
DC Supply Voltage (VDC)255 - 373
AC Supply Voltage (VAC)200 - 240
Network CommunicationCANopen
Functional SafetySafe Torque Off (STO)
Size (mm)256.5 x 182.6 x 83.7
Weight (g)2812


Product Downloads
Datasheet_DPCANIA-C060A400.pdf
CAD files_DPCANIA-C060A400.zip
Product-Identification.pdf
HWManual_DigiFlex_Panel_CANopen.pdf

Instructional Videos

Commutate a brushless motor using the DriveWare® 7 Autocommutation feature
Tune the current loop on DigiFlex® Performance™ servo drives
Basic overview of DriveWare® 7 configuration software

Support Links
DigiFlex® Performance™ Servo Drive DPCANIA-C060A400 (30A rated current,60A peak current, 200-240 VAC)
