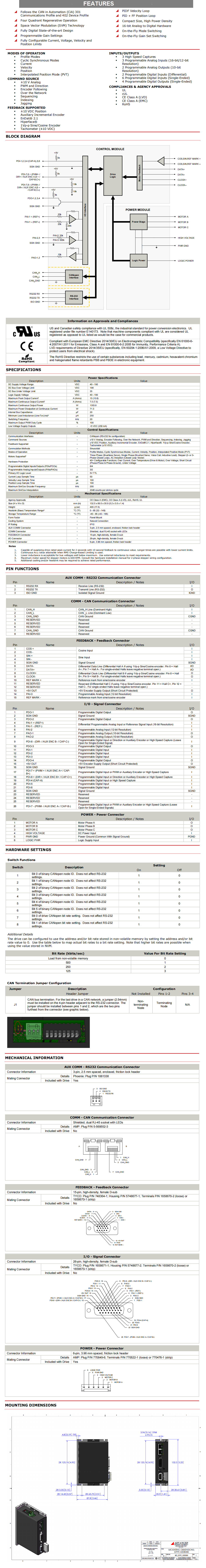

AMC China: DigiFlex® Performance™ CANopen Servo Drive DPCANTA-015B200

The DigiFlex® Performance™ (DP) Series digital servo drives are designed to drive brushed and brushless servomotors, stepper motors, and AC induction motors. These fully digital drives operate in torque, velocity, or position mode and employ Space Vector Modulation (SVM), which results in higher bus voltage utilization and reduced heat dissipation compared to traditional PWM. The drive can be configured for a variety of external command signals. Commands can also be configured using the drive’s built-in Motion Engine, an internal motion controller used with distributed motion applications. In addition to motor control, these drives feature dedicated and programmable digital and analog inputs and outputs to enhance interfacing with external controllers and devices.

This DP Series drive features a CANopen interface for networking and a RS-232 interface for drive configuration and setup. Drive commissioning is accomplished using DriveWare® 7, available for download at www.a-m-c.com.

All drive and motor parameters are stored in nonvolatile memory. The DPC Series Hardware Installation Manual is available for download at www.a-m-c.com.

The DPCANTA-015B200 DigiFlex® Performance™ panel mount servo drive offers full tuning control of all servo loops and is designed for distributed or centralized servo systems. This servo drive utilizes CANopen® communication and is commissioned with DriveWare® via an RS-232 interface.
