AMC: DigiFlex® Performance™ CANopen Servo Drive Supports Resolver Feedback DPCANTR-040B080
AMC: DigiFlex® Performance™ CANopen Servo Drive DPCANTR-040B080
DPCANTR-040B080

DigiFlex® Performance™ CANopen Servo Drive, Resolver Feedback,20A rated current,40A peak current,20 - 80VDC

Price: (Members Only)


Availability: Leadtime 26-28 weeks
Order #: DPCANTR-040B080
Qty:

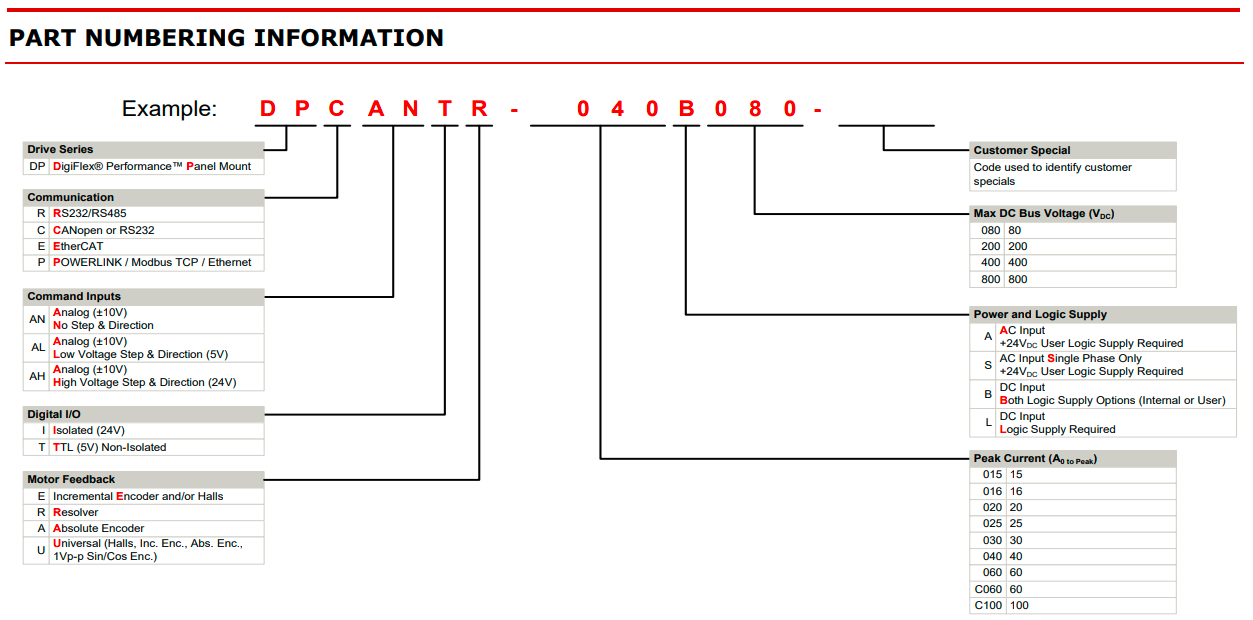

Description Ordering Information Specifications and Drawings

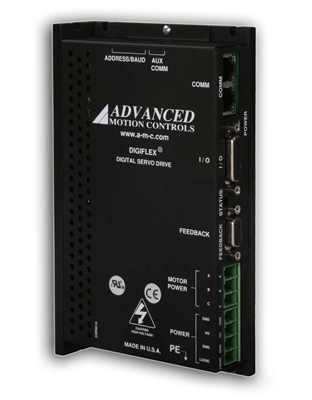

AMC: DigiFlex® Performance™ CANopen Servo Drive DPCANTR-040B080

The DigiFlex® Performance™ (DP) Series digital servo drives are designed to drive brushed and brushless servomotors, stepper motors, and AC induction motors. These fully digital drives operate in torque, velocity, or position mode and employ Space Vector Modulation (SVM), which results in higher bus voltage utilization and reduced heat dissipation compared to traditional PWM. The drive can be configured for a variety of external command signals. Commands can also be configured using the drive’s built-in Motion Engine, an internal motion controller used with distributed motion applications. In addition to motor control, these drives feature dedicated and programmable digital and analog inputs and outputs to enhance interfacing with external controllers and devices.

This DP Series drive features a CANopen interface for networking and a RS-232 interface for drive configuration and setup. Drive commissioning is accomplished using DriveWare® 7, available for download at www.a-m-c.com.

All drive and motor parameters are stored in nonvolatile memory. The DPC Series Hardware Installation Manual is available for download at www.a-m-c.com.

The DPCANTR-040B080 DigiFlex® Performance™ panel mount servo drive offers full tuning control of all servo loops and is designed for distributed or centralized servo systems. This servo drive utilizes CANopen® communication and is commissioned with DriveWare® via an RS-232 interface.

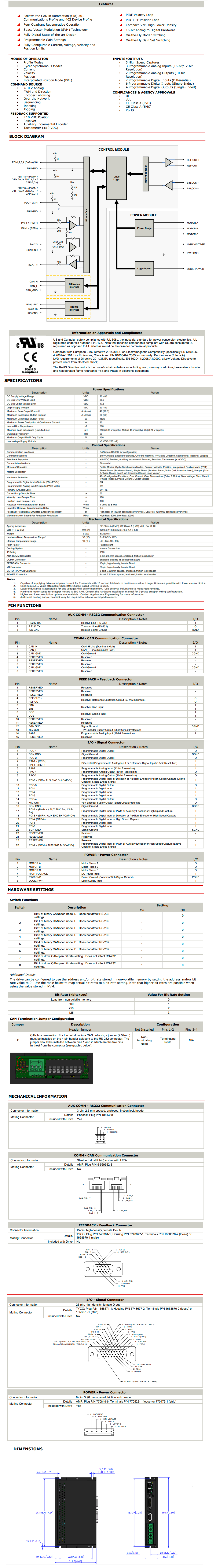

Specifications
Current Continuous (A)20
Current Peak (A)40
DC Supply Voltage (VDC)20 - 80
Network CommunicationCANopen
Size (mm)190.5 x 111.8 x 35.9
Weight (g)872
Downloads
Datasheet_DPCANTR-040B080.pdf
CAD Files_DPCANTR-040B080.zip
Product-Identification.pdf
Instructional Videos
Commutate a brushless motor using the DriveWare® 7 Autocommutation feature
Tune the current loop on DigiFlex® Performance™ servo drives
Basic overview of DriveWare® 7 configuration software

Support Links
DigiFlex® Performance™ Servo Drive DPCANTR-040B080 (20A rated current,40A peak current,20 - 80VDC)

Share your knowledge of this product. Be the first to write a review »
