AMC: DigiFlex® Performance™ RS-485/232 or Modbus RTU Servo Drive Supports Resolver Feedback DPRANIR-C100A400
AMC: DigiFlex® Performance™ RS-485/232 or Modbus RTU Servo Drive DPRANIR-C100A400
DPRANIR-C100A400

DigiFlex® Performance™ RS-485/232 or Modbus RTU Servo Drive, Resolver Feedback, 50A rated current,100A peak current,200-240VAC

Price: (Members Only)


Availability: Leadtime 26-28 weeks
Order #: DPRANIR-C100A400
Qty:

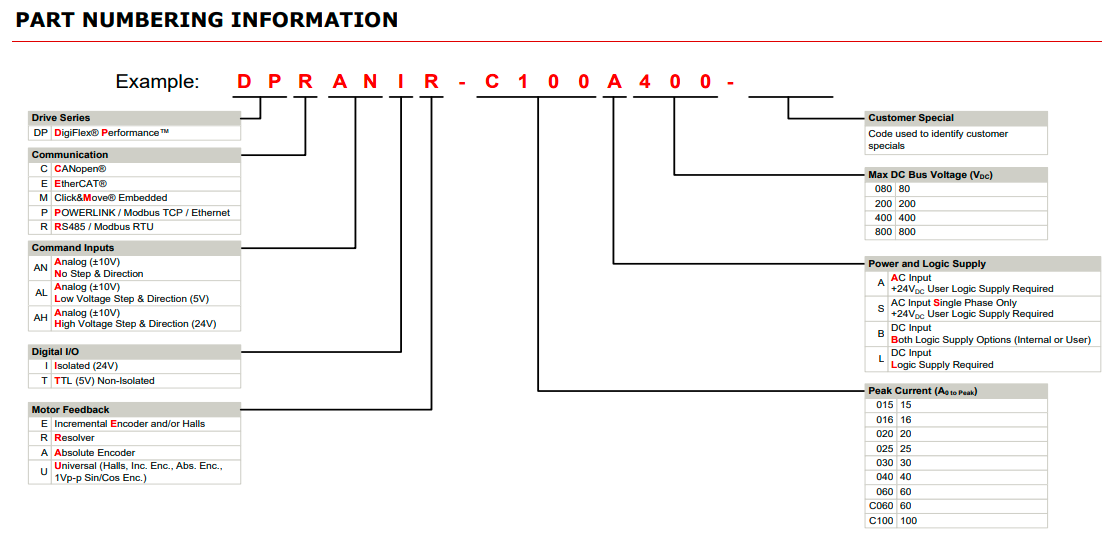

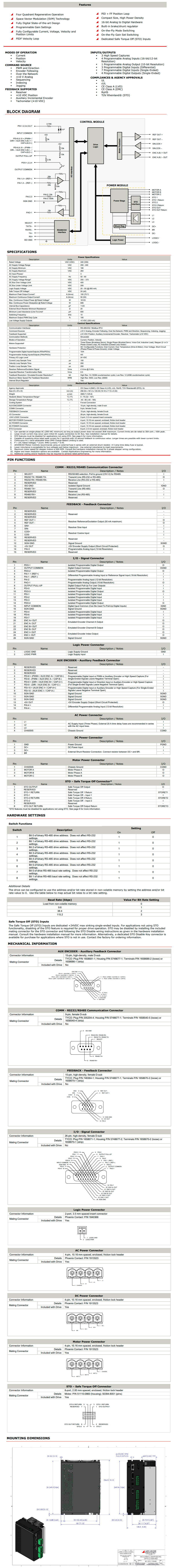

Description Ordering Information Specifications and Drawings


AMC: DigiFlex® Performance™ RS-485/232 or Modbus RTU Servo Drive DPRANIR-C100A400

The DigiFlex® Performance™ (DP) Series digital servo drives are designed to drive brushed and brushless servomotors, stepper motors, and AC induction motors. These fully digital drives operate in torque, velocity, or position mode and employ Space Vector Modulation (SVM), which results in higher bus voltage utilization and reduced heat dissipation compared to traditional PWM. The drive can be configured for a variety of external command signals. Commands can also be configured using the drive’s built-in Motion Engine, an internal motion controller used with distributed motion applications. In addition to motor control, these drives feature dedicated and programmable digital and analog inputs and outputs to enhance interfacing with external controllers and devices.

Network communication is accomplished using either RS-485/232 or Modbus RTU. This DP Series drive features a single serial interface used for drive commissioning via DriveWare® 7, available for download at www.a-m-c.com.

The DPR Hardware Installation Manual is available for download from www.a-m-c.com. All drive and motor parameters are stored in non-volatile memory.
Specifications:

Current Continuous (A)50
Current Peak (A)100
DC Supply Voltage (VDC)255 - 373
AC Supply Voltage (VAC)200 - 240
Network CommunicationModbus RTU, RS-485/232
Functional SafetySafe Torque Off (STO)
Size (mm)272.8 x 230.4 x 149.4
Weight (g)3560

The DPRANIR-C100A400 DigiFlex® Performance™ panel mount servo drive offers full tuning control of all servo loops and is designed for distributed or centralized servo systems. This servo drive utilizes RS485 or Modbus RTU communication and is commissioned with DriveWare® via an RS-232 interface.

Downloads:

Datasheet_DPRANIR-C100A400.pdf
CAD Files_DPRANIR-C100A400.zip
Product-Identification.pdf

Instructional Videos:

Commutate a brushless motor using the DriveWare® 7 Autocommutation feature
Tune the current loop on DigiFlex® Performance™ servo drives
Basic overview of DriveWare® 7 configuration software
