AMC: DigiFlex® Performance™ PCB Mount Modbus RTU, RS-485/232 Servo Drive Supports Incremental Feedback DZRALTE-020L080
AMC: DigiFlex® Performance™ RS-485/232 or Modbus RTU Servo Drive DZRALTE-020L080
DZRALTE-020L080

DigiFlex® Performance™ PCB Mount Modbus RTU, RS-485/232 Servo Drive, Incremental Encoder,12A rated current,20A peak current,10-80VDC

Price: (Members Only)

Quantity in Stock:200

Availability: Usually Ships in 1 to 2 Weeks
Order #: DZRALTE-020L080


Accessory - Mounting Card*:

The MC1XDZR03-QD mounting card is designed to hold a DZRALTE or DZXRALTE DigiFlex® Performance™ family pcb mount servo drive to simplify connection to the controller, motor, and feedback. The motor and power connectors utilize quick-disconnect style connections. The MC1XDZR03-QD utilizes vertical-entry quick disconnect screw terminals for the Motor and Power connectors (mating connectors included). For side entry right angle Motor and Power connections use the MC1XDZR03 mounting card.

Qty:

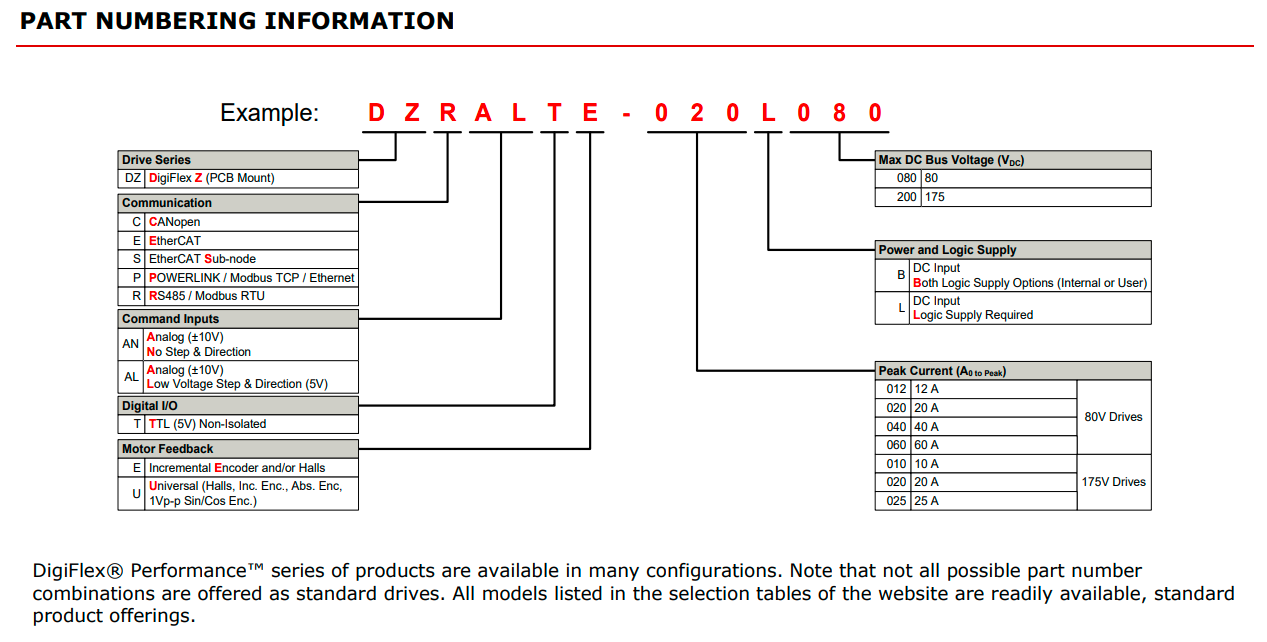

Description Ordering Information Specifications and Drawings


DigiFlex® Performance™ PCB Mount Modbus RTU, RS-485/232 Servo Drive Supports Incremental Feedback DZRALTE-020L080

The DZRALTE-020L080 digital servo drive is designed to drive brushed and brushless servomotors, stepper motors, and AC induction motors from a compact form factor ideal for embedded applications. This fully digital drive operates in torque, velocity, or position mode and employs Space Vector Modulation (SVM), which results in higher bus voltage utilization and reduced heat dissipation compared to traditional PWM. The drive can be configured for a variety of external command signals. Commands can also be configured using the drive’s built-in Motion Engine, an internal motion controller used with distributed motion applications. In addition to motor control, this drive features dedicated and programmable digital and analog inputs and outputs to enhance interfacing with external controllers and devices

Network communication is accomplished using either RS-485/232 or Modbus RTU. This DZR Series drive features a single serial interface used for drive commissioning via DriveWare® 7, available for download at www.a-m-c.com.

The DZRALTE-020L080 DigiFlex® Performance™ pcb mount servo drive offers full tuning control of all servo loops and is designed for distributed or centralized servo systems. This servo driver utilizes RS485 or Modbus RTU communication and is commissioned with DriveWare® via an RS-232 interface.

Specifications:

Current Continuous (A)12
Current Peak (A)20
DC Supply Voltage (VDC)10 - 80
Network CommunicationModbus RTU, RS-485/232
Size (mm)63.5 x 50.8 x 22.9
Weight (g)105

Downloads:

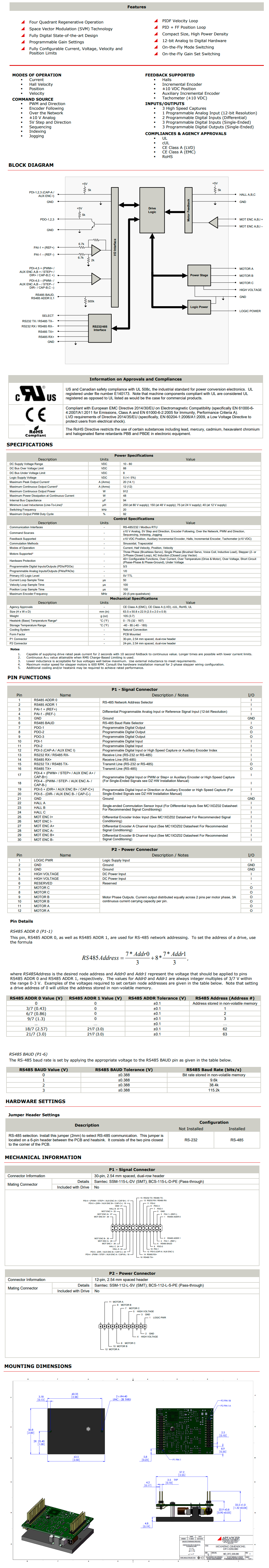

Datasheet_DZRALTE-020L080.pdf
Modbus Communication Manual (DP)
HWManual_DigiFlex_PCB_RS485-ModbusRTU.pdf
Product-Identification.pdf
Software Downloads:
SW_QuickReference_ACE.pdf
SW_Manual_ACE.pdf
