DigiFlex® Performance™ PCB Mount Modbus RTU, RS-485/232 Servo Drive Supports Incremental Feedback DZRALTE-025L200

The DZRALTE-025L200 digital servo drive is designed to drive brushed and brushless servomotors, stepper motors, and AC induction motors from a compact form factor ideal for embedded applications. This fully digital drive operates in torque, velocity, or position mode and employs Space Vector Modulation (SVM), which results in higher bus voltage utilization and reduced heat dissipation compared to traditional PWM. The drive can be configured for a variety of external command signals. Commands can also be configured using the drive’s built-in Motion Engine, an internal motion controller used with distributed motion applications. In addition to motor control, this drive features dedicated and programmable digital and analog inputs and outputs to enhance interfacing with external controllers and devices

Network communication is accomplished using either RS-485/232 or Modbus RTU. This DZR Series drive features a single serial interface used for drive commissioning via DriveWare® 7, available for download at www.a-m-c.com.

The DZRALTE-025L200 DigiFlex® Performance™ pcb mount servo drive offers full tuning control of all servo loops and is designed for distributed or centralized servo systems. This servo driver utilizes RS485 or Modbus RTU communication and is commissioned with DriveWare® via an RS-232 interface.

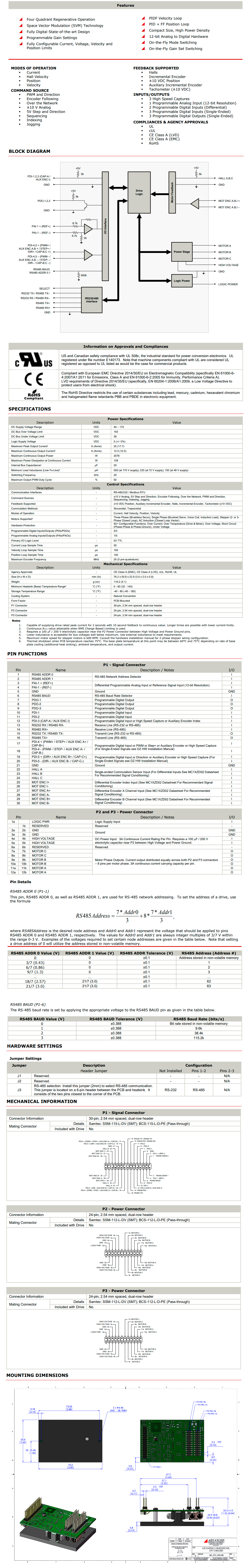

Specifications:

Downloads:
Datasheet_DZRALTE-025L200.pdf
HWManual_DigiFlex_PCB_RS485-ModbusRTU.pdf

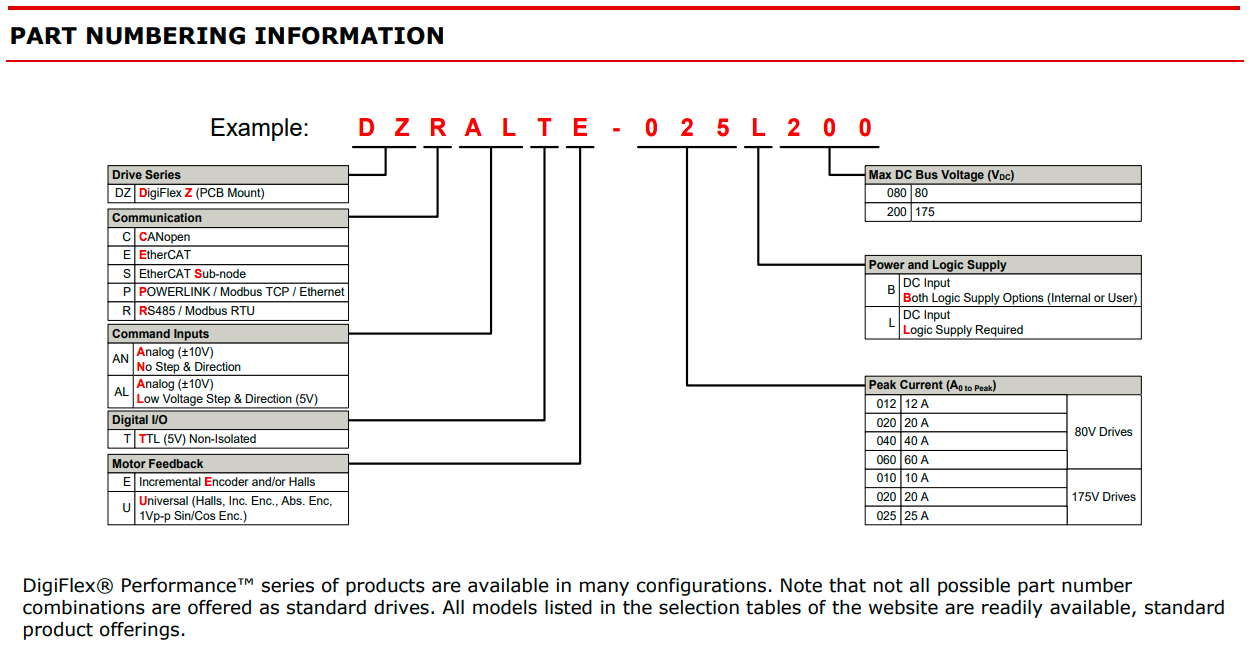

Product-Identification.pdf
Software Downloads:
SW_Manual_DriveWare.pdf
SW_QuickRef_DriveWare.pdf
Instructional Videos:
DriveWare® 7 Overview
DriveWare® 7 AutoCommutation
