AMC: DigiFlex® Performance™ Extended Environment PCB mount Modbus RTU, RS-485/232 Servo Drive Supports Incremental Feedback DZXRALTE-008L080
AMC: DigiFlex® Performance™ RS-485/232 or Modbus RTU Servo Drive DZXRALTE-008L080
DZXRALTE-008L080

DigiFlex® Performance™ extended environment PCB mount, modbus RTU, RS-485/232 servo drive, Incremental Encoder, 04A rated current,08A peak current,10-80VDC

Price: (Members Only)


Availability: Lead time 10 - 12 weeks

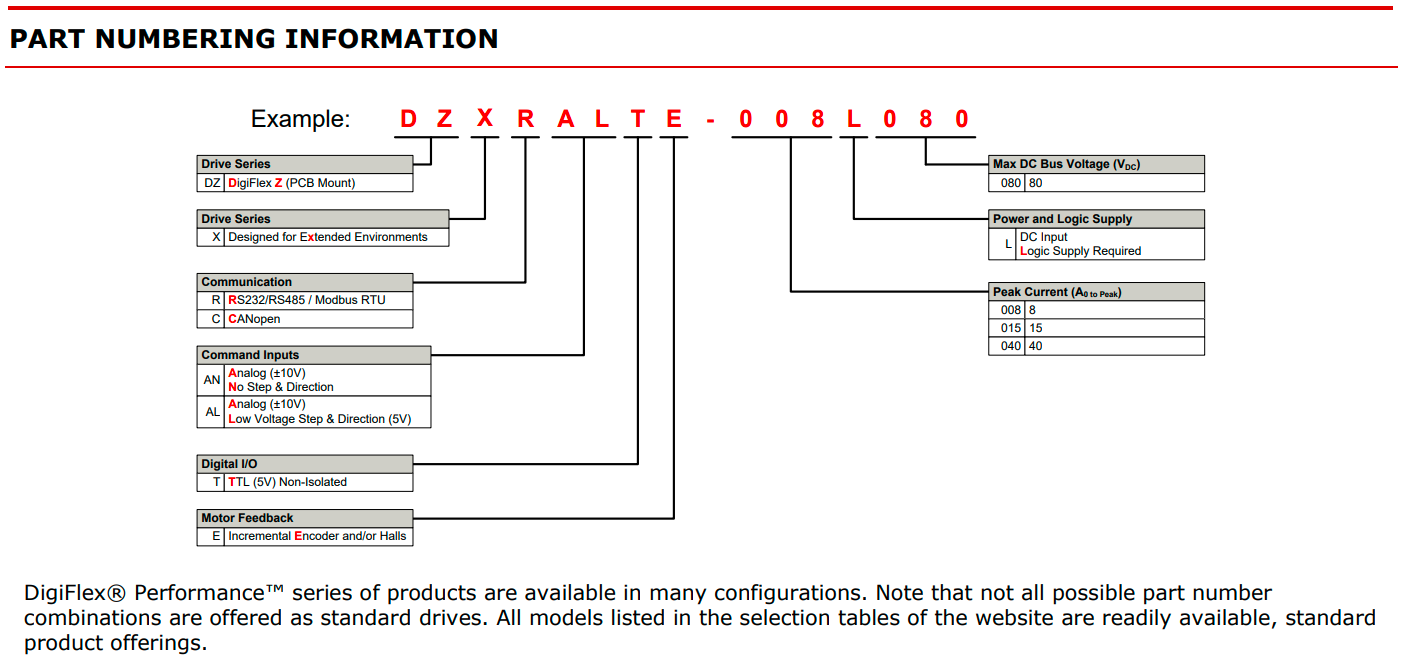

Order #: DZXRALTE-008L080


Accessory - Mounting Card*:

The MC1XDZR03-QD mounting card is designed to hold a DZRALTE or DZXRALTE DigiFlex® Performance™ family pcb mount servo drive to simplify connection to the controller, motor, and feedback. The motor and power connectors utilize quick-disconnect style connections. The MC1XDZR03-QD utilizes vertical-entry quick disconnect screw terminals for the Motor and Power connectors (mating connectors included). For side entry right angle Motor and Power connections use the MC1XDZR03 mounting card.

Qty:
Description Ordering Information Specifications and Drawings


AMC: DigiFlex® Performance™ Extended Environment PCB mount Modbus RTU, RS-485/232 Servo Drive Supports Incremental Feedback DZXRALTE-008L080

The DZXRALTE-008L080 digital servo drive is designed to drive brushed and brushless servomotors, stepper motors, and AC induction motors from a compact form factor ideal for embedded applications. This fully digital drive operates in torque, velocity, or position mode and employs Space Vector Modulation (SVM), which results in higher bus voltage utilization and reduced heat dissipation compared to traditional PWM. The drive can be configured for a variety of external command signals. Commands can also be configured using the drive’s built-in Motion Engine, an internal motion controller used with distributed motion applications. In addition to motor control, this drive features dedicated and programmable digital and analog inputs and outputs to enhance interfacing with external controllers and devices.

Network communication is accomplished using either RS-485/232 or Modbus RTU. This DZR Series drive features a single serial interface used for drive commissioning via DriveWare® 7, available for download at www.a-m-c.com. The DZX Hardware Installation Manual is available for download from www.a-m-c.com. All drive and motor parameters are stored in non-volatile memory.

The DZXRALTE-008L080 conforms to the following specifications and is designed to the Environmental Engineering Considerations as defined in MIL-STD-810F.

Specifications:

Current Continuous (A)4
Current Peak (A)8
DC Supply Voltage (VDC)10 - 80
Network CommunicationModbus RTU, RS-485/232
Size (mm)63.5 x 50.8 x 22.9
Weight (g)105

Downloads:

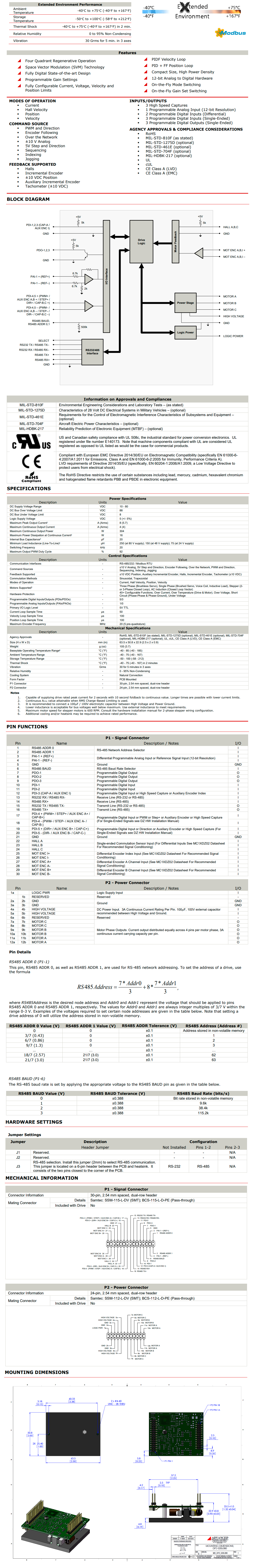

Datasheet_DZXRALTE-008L080.pdf
