AMC: DigiFlex® Performance™ Extended Environment PCB mount Modbus RTU, RS-485/232 Servo Drive Supports Incremental Feedback DZXRALTE-015L080

The DZXRALTE-015L080 digital servo drive is designed to drive brushed and brushless servomotors, stepper motors, and AC induction motors from a compact form factor ideal for embedded applications. This fully digital drive operates in torque, velocity, or position mode and employs Space Vector Modulation (SVM), which results in higher bus voltage utilization and reduced heat dissipation compared to traditional PWM. The drive can be configured for a variety of external command signals. Commands can also be configured using the drive’s built-in Motion Engine, an internal motion controller used with distributed motion applications. In addition to motor control, this drive features dedicated and programmable digital and analog inputs and outputs to enhance interfacing with external controllers and devices.

Network communication is accomplished using either RS-485/232 or Modbus RTU. This DZR Series drive features a single serial interface used for drive commissioning via DriveWare® 7, available for download at www.a-m-c.com. The DZX Hardware Installation Manual is available for download from www.a-m-c.com. All drive and motor parameters are stored in non-volatile memory.

The DZXRALTE-015L080 conforms to the following specifications and is designed to the Environmental Engineering Considerations as defined in MIL-STD-810F.

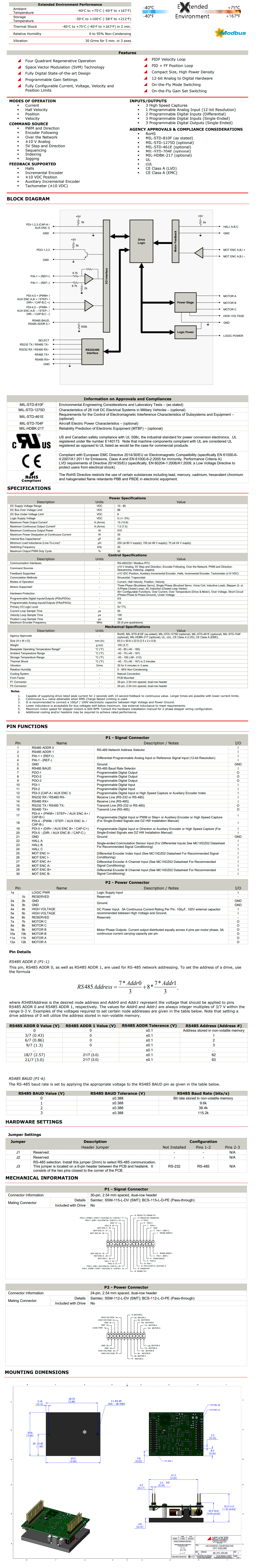

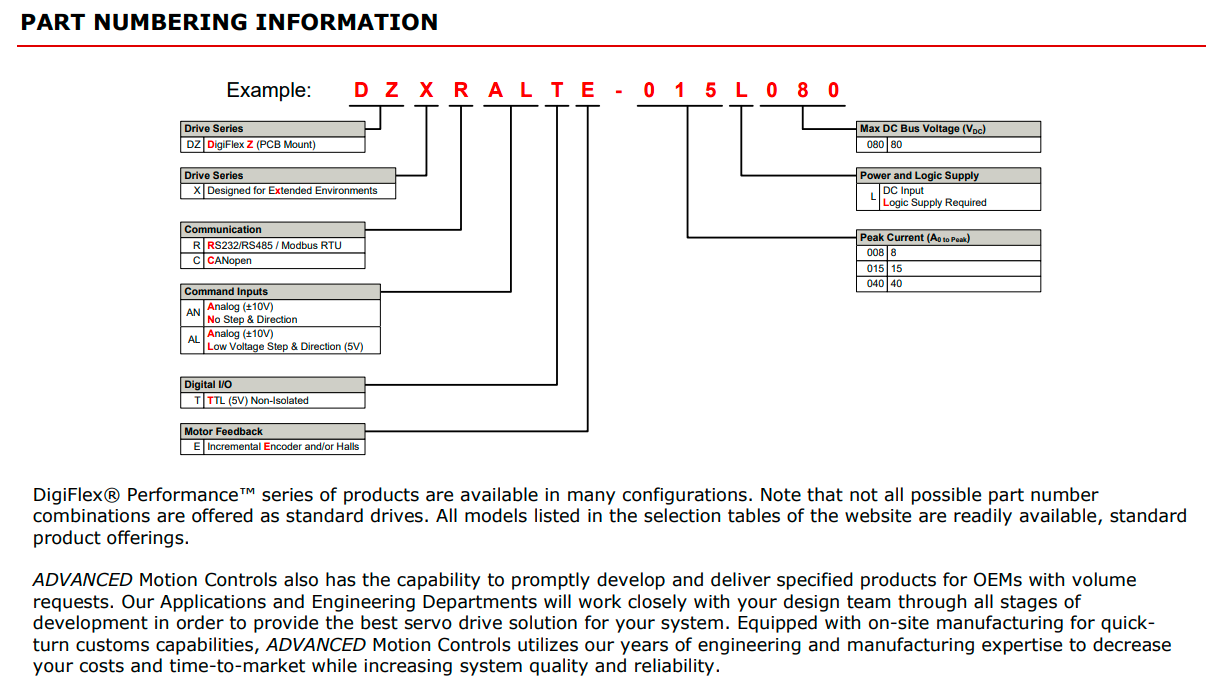

Specifications:

Downloads:
Datasheet_DZXRALTE-015L080.pdf
CommManual_RS485.pdf
Modbus Communication Manual (DP)
DP PCB Mount Ext. Environment HW Installation Manual
Software Downloads:
SW_Manual_DriveWare.pdf
SW_QuickRef_DriveWare.pdf
Instructional Videos:
DriveWare® 7 AutoCommutation
DriveWare® 7 Overview
