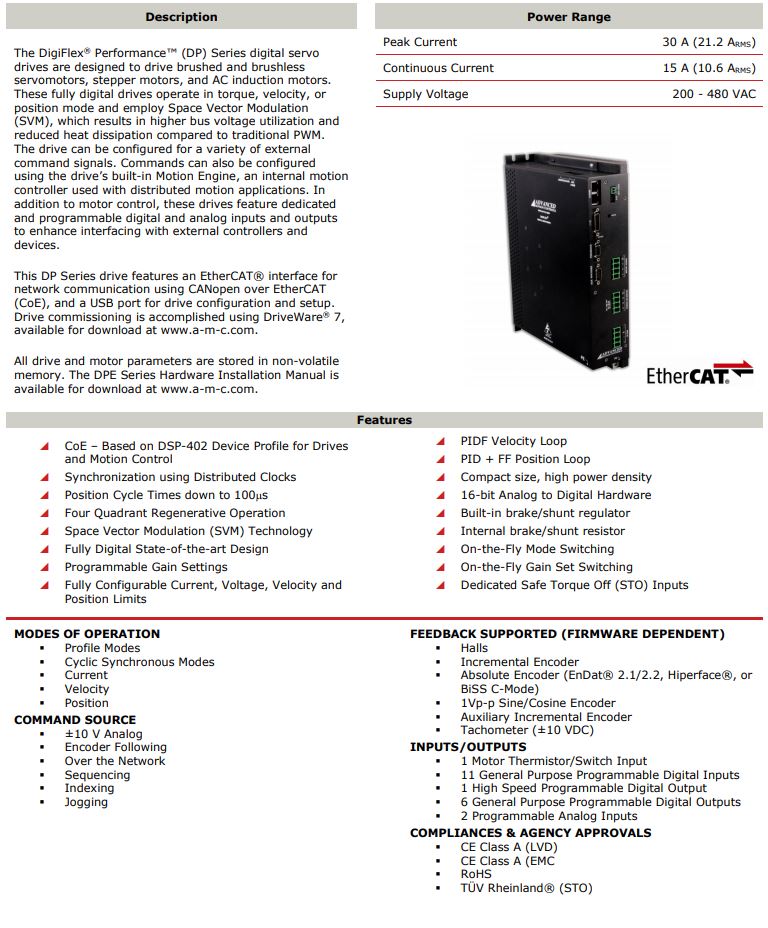

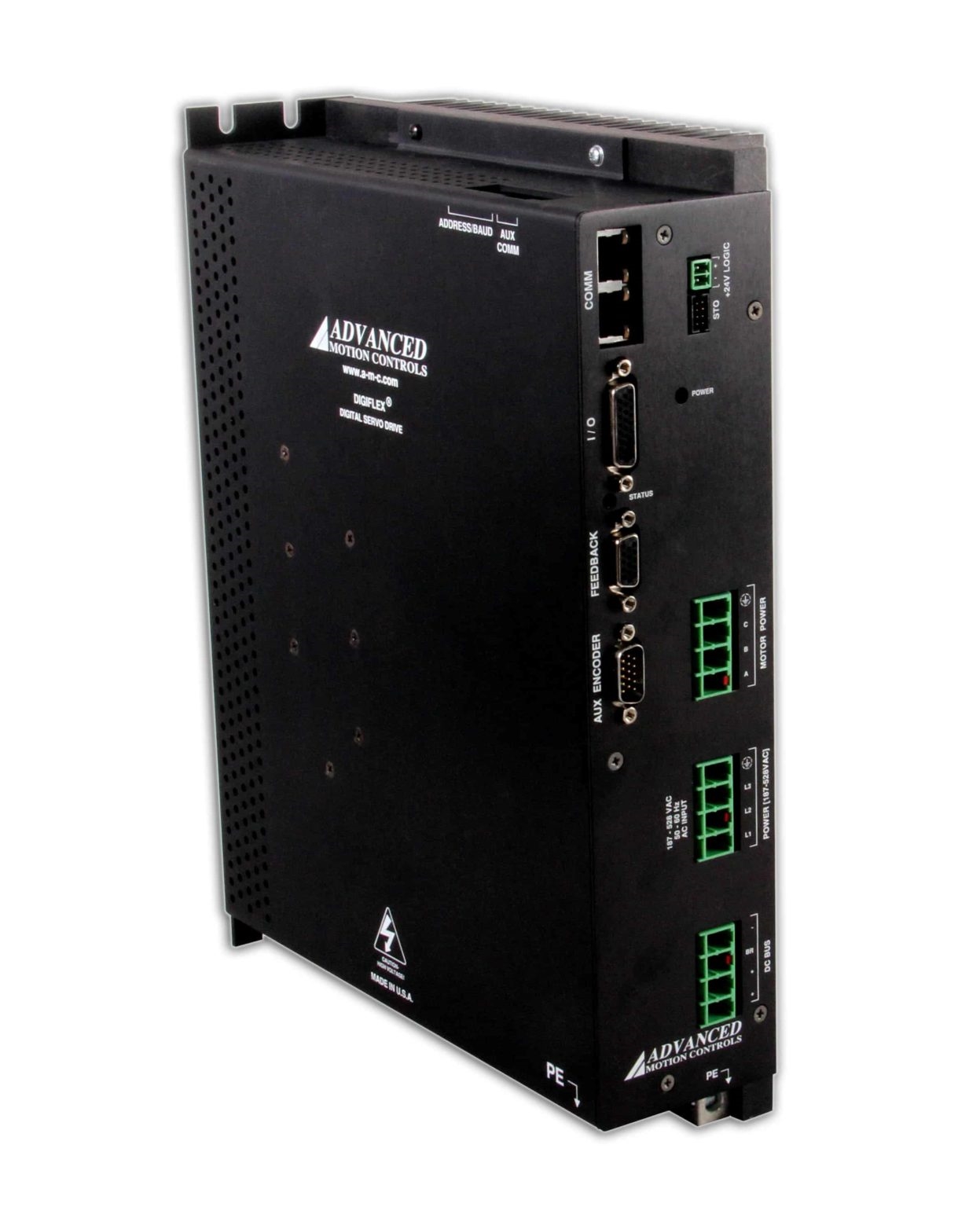

The DPEANIU-030A800 DigiFlex® Performance™ panel mount servo drive offers full tuning control of all servo loops and is designed for distributed or centralized servo systems. This servo drive utilizes EtherCAT® communication and is commissioned with DriveWare® via a USB interface.
CONTROL/COMMAND
- ±10 V Analog
- Encoder Following
- Indexing
- Jogging
- Over the Network
- Sequencing
PRIMARY FEEDBACK
- ±10 VDC Position
- 1Vp-p Sine/Cosine Encoder
- BiSS C-Mode
- EnDat® 2.1
- EnDat® 2.2
- Halls
- Hiperface®
- Incremental Encoder
- Tachometer (±10 VDC)
OPERATING MODE
- Profile Modes
- Cyclic Synchronous Modes
- Current
- Position
- Velocity
MOTOR TYPE
- Three Phase (Brushless)
- Single Phase (Brushed)
- AC Induction
- Stepper
