AMC: DigiFlex® Performance™ extended environment PCB mount CANopen digital servo drive Supports Incremental Feedback DZXCANTE-040L080
AMC: DigiFlex® Performance™ extended environment PCB mount servo drive DZXCANTE-040L080
DZXCANTE-040L080

DigiFlex® Performance™ extended environment PCB mount servo drive,Incremental Encoder, 20A rated current,40A peak current,10 - 80VDC

Price: (Members Only)


Availability: Lead time 10 - 12 weeks
Order #: DZXCANTE-040L080


Accessory - Mounting Card:

The mounting card is designed to host a DZC or DZXC series DigiFlex® Performance digital servo drive. The drive plugs into the bottom side of the mounting card, providing a compact assembly with connectors and switches readily accessible. The MC1XDZC03-QD/HP1 is ideal for prototyping and integrating a DZC or DZXC series digital servo drive in your machine.

Qty:

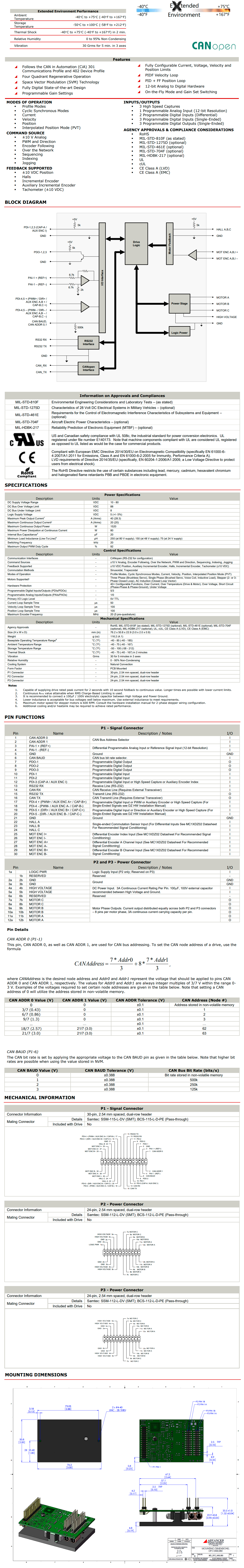

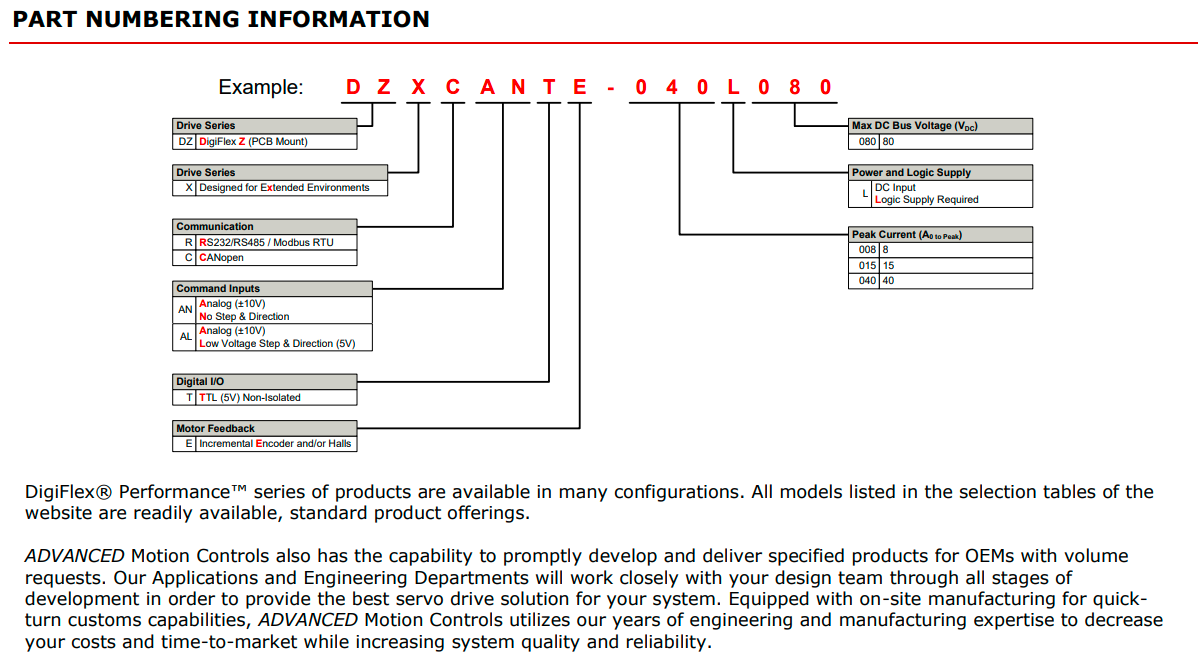

Description Ordering Information Specifications and Drawings


DigiFlex® Performance™ extended environment PCB mount CANopen digital servo drive Supports Incremental Feedback DZXCANTE-040L080

The DZXCANTE-040L080 digital servo drive is designed to drive brushed and brushless servomotors, stepper motors, and AC induction motors from a compact form factor ideal for embedded applications. This fully digital drive operates in torque, velocity, or position mode and employs Space Vector Modulation (SVM), which results in higher bus voltage utilization and reduced heat dissipation compared to traditional PWM. The drive can be configured for a variety of external command signals. Commands can also be configured using the drive’s built-in Motion Engine, an internal motion controller used with distributed motion applications. In addition to motor control, this drive features dedicated and programmable digital and analog inputs and outputs to enhance interfacing with external controllers and devices.

The DZXCANTE-040L080 features a single RS232 interface used for drive configuration and setup. The CANopen interface can be used for online operation in networked applications. Drive commissioning is accomplished using DriveWare® 7, available for download at www.a-m-c.com. The DZX Hardware Installation Manual is available for download from www.a-m-c.com. All drive and motor parameters are stored in non-volatile memory.

The DZXCANTE-040L080 conforms to the following specifications and is designed to the Environmental Engineering Considerations as defined in MIL-STD-810F.

The DZXCANTE-040L080 DigiFlex® Performance™ extended environment PCB mount servo drive offers full tuning control of all servo loops and is designed for distributed or centralized servo systems in harsh temperatures or rugged environments. This servo motor drive utilizes CANopen® communication and is commissioned with DriveWare® via an RS-232 interface.

Specifications:

Current Continuous (A)20
Current Peak (A)40
DC Supply Voltage (VDC)10 - 80
Network CommunicationCANopen
Size (mm)76.2 x 50.8 x 22.9
Weight (g)123

Downloads:
Datasheet_DZXCANTE-040L080.pdf
CANopen Communication Manual (DP)
Modbus Communication Manual (DP)
DP PCB Mount Ext. Environment HW Installation Manual
Software Downloads
SW_Manual_DriveWare.pdf
SW_QuickRef_DriveWare.pdf
Instructional Videos
DriveWare® 7 AutoCommutation
DriveWare® 7 Overview

Support Links
DigiFlex® Performance™ extended environment PCB mount servo drive DZXCANTE-040L080 supports Incremental Feedback, 20A rated current,40A peak current,10 - 80VDC

Share your knowledge of this product. Be the first to write a review »
