AMC: FlexPro® Embedded PCB Mount CANopen Servo Drive Supports Multi Encoder FE060-10-CM
AMC: FlexPro®  Embedded CANopen Servo Drive FE060-10-CM
FE060-10-CM 10A

FlexPro® Embedded, PCB Mount, CANopen Servo Drive Supports Multi Encoder, FE060-10-CM, 10A rated current, 20A peak current,10-55 VDC

Price: (Members Only)

Quantity in Stock:10

Availability: Usually Ships in 1 to 2 Weeks
Order #: FE060-10-CM
Qty:

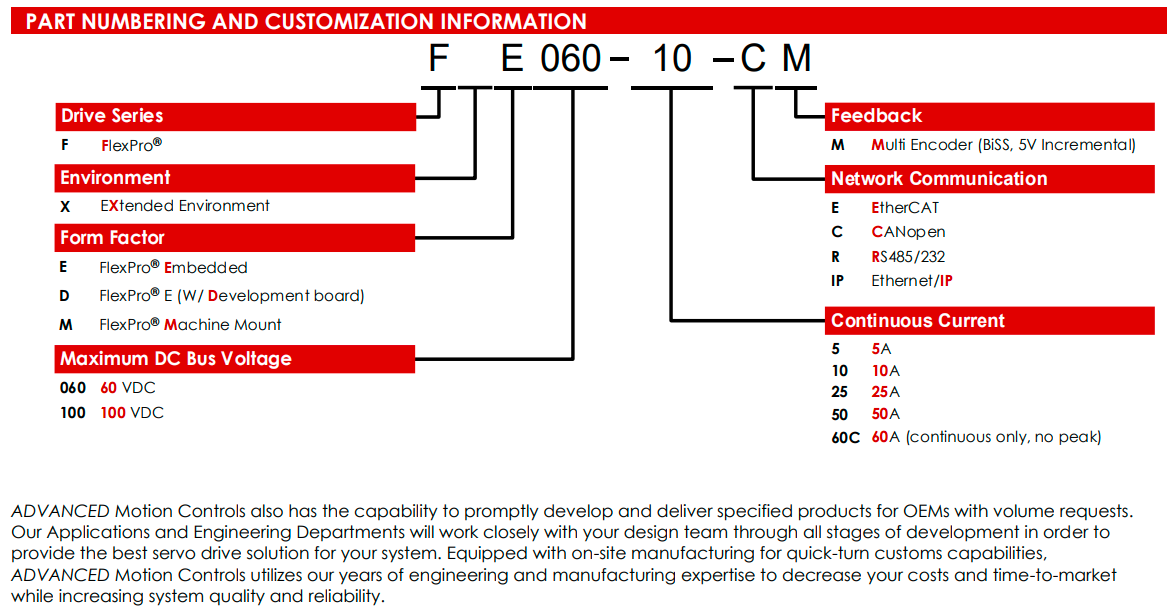

Description Ordering Information Specifications and Drawings


FlexPro® Embedded PCB Mount CANopen Servo Drive FE060-10-CM

The FE060-10-CM is a FlexPro® series servo drive with IMPACT™ architecture. The FE060-10-CM offers full tuning control of all servo loops and is designed to drive brushed and brushless servo motors, stepper motors, and AC induction motors. The drive accepts a variety of external command signals, or can use the built in Motion Engine, an internal motion controller used with Sequencing and Indexing commands. Programmable digital and analog I/O are included to enhance interfacing with external controllers and devices. The FE060-10-CM features a CANopen interface for network communication and USB connectivity for drive configuration and setup. All drive and motor parameters are stored in non-volatile memory. IMPACT™ (Integrated Motion Platform And Control Technology combines exceptional processing capability and high current components to create powerful, compact, feature-loaded servo solutions. IMPACT™ is used in all FlexPro® drives and is available in custom products as well.
The FE060-10-CM FlexPro® pcb mount servo drive with IMPACT™ architecture offers full tuning control of all servo loops and is designed for distributed or centralized servo systems. This servo drive utilizes CANopen communication and is commissioned via a USB interface.

Specifications:

Current Continuous (A)10
Current Peak (A)20
DC Supply Voltage (VDC)10 - 55
Network CommunicationCANopen
Functional SafetySafe Torque Off (STO)
Size (mm)38.1 x 25.4 x 11.5
Weight (g)19.8
Downloads:

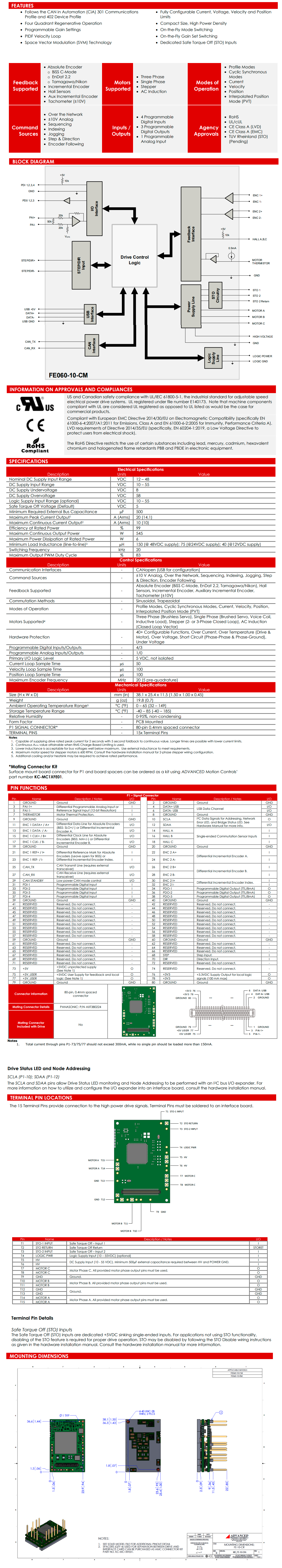

Datasheet_FE060-10-CM.pdf
HWManual_FlexPro_PCB.pdf
CommManual_FP_CANopen.pdf
Software Downloads:
SW_QuickRef_DriveWare.pdf
SW_Manual_DriveWare.pdf
Instructional Videos:
Tips for Proper Wiring and Reducing EMI (Noise)

Support Links
FlexPro® Embedded, PCB Mount, CANopen Servo Drive FE060-10-CM (10A rated current,20A peak current, 10-55 VDC)
CommManual_FP_CANopen.pdf
ACE_QuickReference.pdf
HWManual_FlexPro_PCB.pdf
