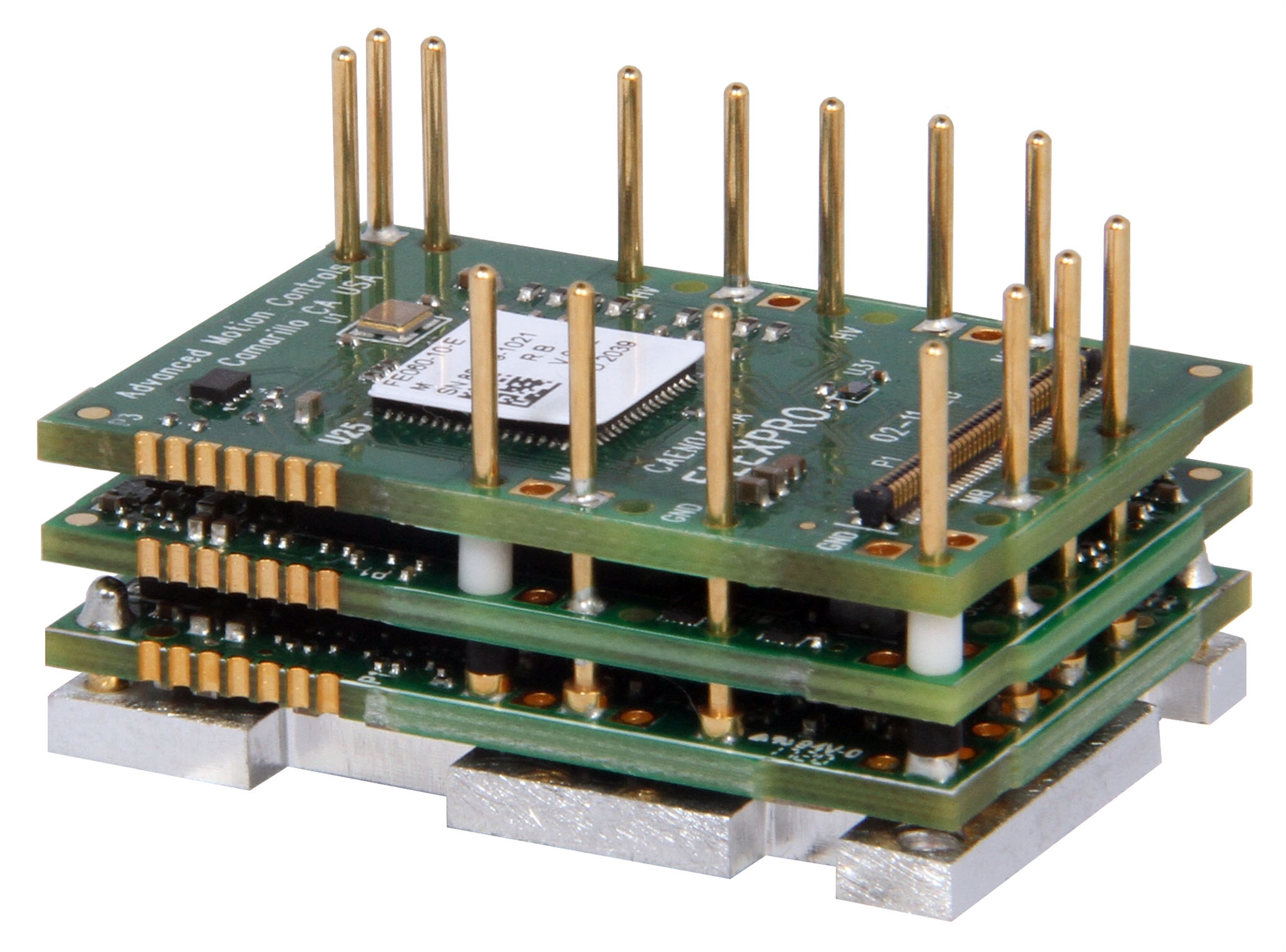

FlexPro® Embedded PCB Mount Ethernet/IP Servo Drive FE060-10-IPM

The FE060-10-IPM is a FlexPro® series servo drive with IMPACT™ architecture.

The FE060-10-IPM offers full tuning control of all servo loops and is designed to drive brushed and brushless servo motors, and closed loop stepper motors. The drive accepts a variety of external command signals, or can use the built-in Motion Engine, an internal motion controller used with Sequencing and Indexing commands. Programmable digital and analog I/O are included to enhance interfacing with external controllers and devices.

The FE060-10-IPM utilizes Ethernet/IP network communication and is configured via USB. All drives and motor parameters are stored in non-volatile memory. ADVANCED Motion Controls' Ethernet/IP protocol operates based on a control state machine as defined by CANopen standards. CIP Motion and CIP Sync are not currently supported.

IMPACT™ (Integrated Motion Platform And Control Technology combines exceptional processing capability and high current components to create powerful, compact, feature-loaded servo solutions. IMPACT™ is used in all FlexPro® drives and is available in custom products as well.

The FE060-10-IPM FlexPro® pcb mount servo drive with IMPACT™ architecture offers full tuning control of all servo loops and is designed for distributed or centralized servo systems. This servo drive utilizes Ethernet/IP communication and is commissioned via a USB interface.

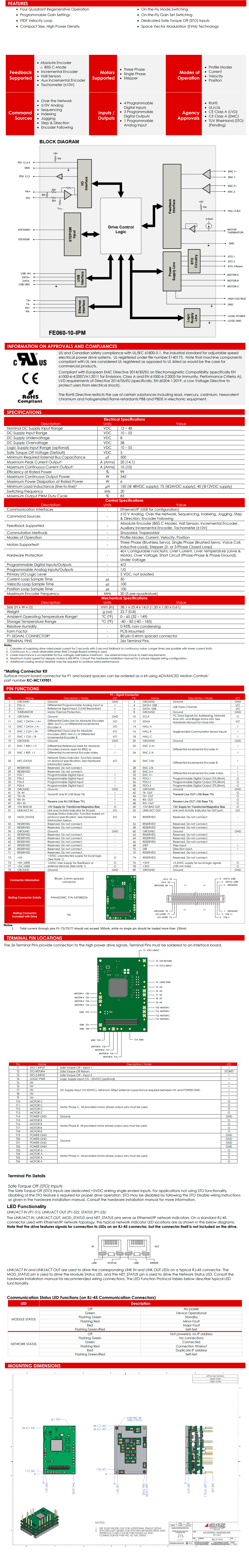

Specifications:

Downloads:

Datasheet_FE060-10-IPM.pdf
CommManual_FP_EtherCAT.pdf
HWManual_FlexPro_PCB.pdf
Product-Identification.pdf

Software Downloads:
SW_Manual_ACE.pdf
SW_QuickReference_ACE.pdf
