FlexPro® Embedded PCB Mount CANopen Servo Drive FE060-25-CM

The FE060-25-CM is a FlexPro® series servo drive with IMPACT™ architecture. The FE060-25-CM offers full tuning control of all servo loops and is designed to drive brushed and brushless servo motors, stepper motors, and AC induction motors. The drive accepts a variety of external command signals, or can use the built in Motion Engine, an internal motion controller used with Sequencing and Indexing commands. Programmable digital and analog I/O are included to enhance interfacing with external controllers and devices.
The FE060-25-CM features a CANopen interface for network communication and USB connectivity for drive configuration and setup. All drive and motor parameters are stored in non-volatile memory.
IMPACT™ (Integrated Motion Platform And Control Technology combines exceptional processing capability and high current components to create powerful, compact, feature-loaded servo solutions. IMPACT™ is used in all FlexPro® drives and is available in custom products as well.
The FE060-25-CM FlexPro® pcb mount servo drive with IMPACT™ architecture offers full tuning control of all servo loops and is designed for distributed or centralized servo systems. This servo drive utilizes CANopen communication and is commissioned via a USB interface.

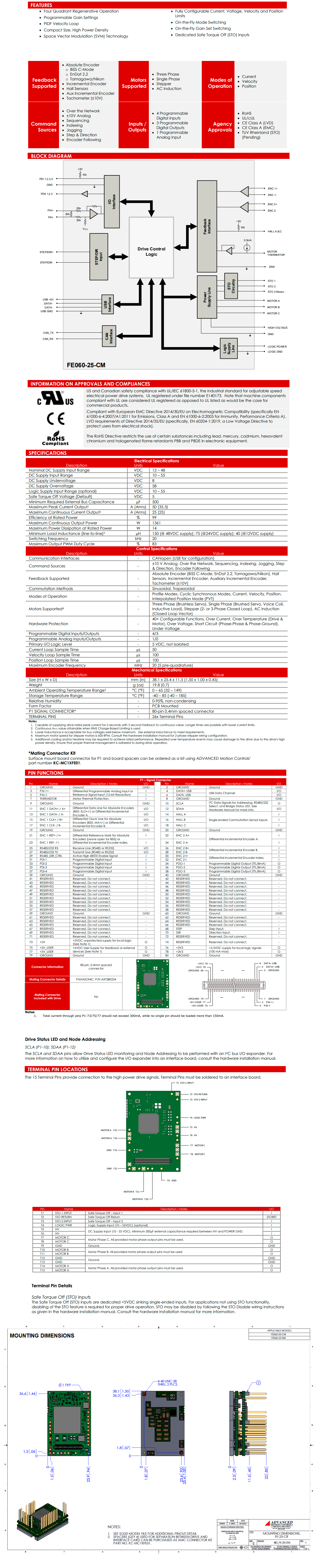

Specifications:

Software Downloads:
SW_QuickReference_ACE.pdf
SW_Manual_ACE.pdf
Instructional Videos:
Manual commutation
Axcent Current Loop tuning
Tips for Proper Wiring and Reducing EMI (Noise)
