AMC: FlexPro® Embedded PCB Mount EtherCAT Servo Drive Supports Multi Encoder FE100-25-EM

FE100-25-EM

FlexPro® Embedded, PCB Mount, EtherCAT Servo Drive Supports Multi Encoder, 25A rated current, 50A peak current,18-90 VDC

Price: (Members Only)

Quantity in Stock:20

Availability: Usually Ships in 1 to 2 Weeks
Order #: FE100-25-EM

Qty:

Description

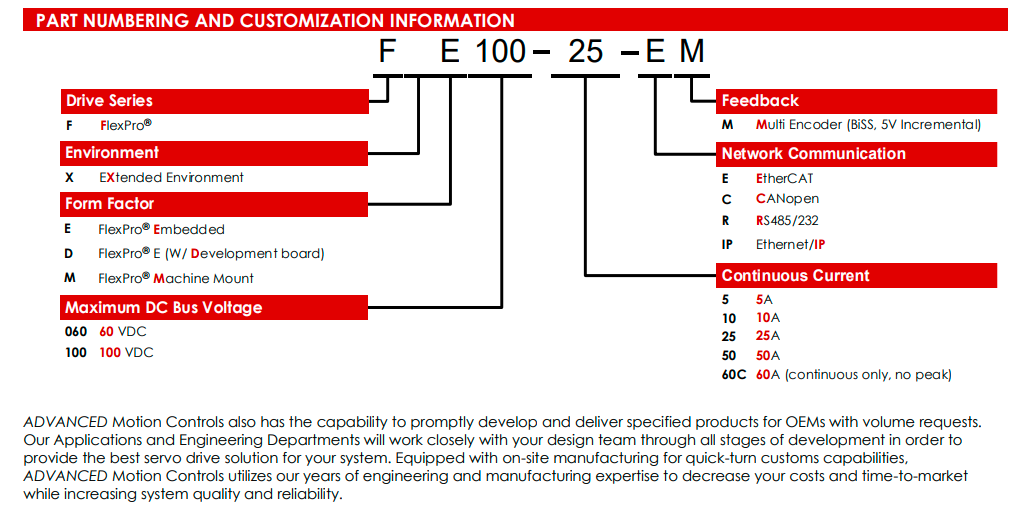

Ordering Information

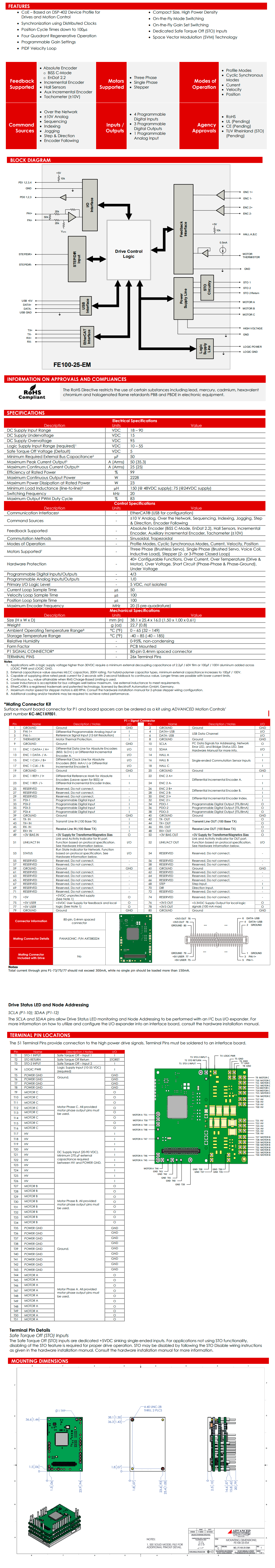

Specifications and Drawings

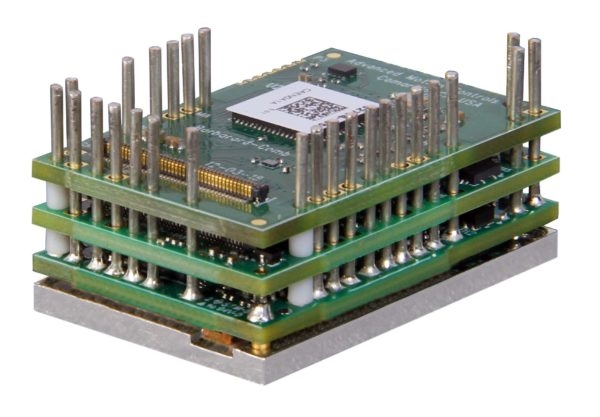

FlexPro® Embedded PCB Mount EtherCAT Servo Drive Supports Multi Encoder FE100-25-EM

The FE100-25-EM is a FlexPro® series servo drive with IMPACT™ architecture.

The FE100-25-EM offers full tuning control of all servo loops and is designed to drive brushed and brushless servo motors, and closed loop stepper motors. The drive accepts a variety of external command signals, or can use the built-in Motion Engine, an internal motion controller used with Sequencing and Indexing commands. Programmable digital and analog I/O are included to enhance interfacing with external controllers and devices.

The FE100-25-EM features an EtherCAT® interface for network communication using CANopen over EtherCAT (CoE) and USB connectivity for drive configuration and setup. All drive and motor parameters are stored in non-volatile memory.

IMPACT™ (Integrated Motion Platform And Control Technology combines exceptional processing capability and high current components to create powerful, compact, feature-loaded servo solutions. IMPACT™ is used in all FlexPro® drives and is available in custom products as well.

The FE100-25-EM FlexPro® pcb mount servo drive with IMPACT™ architecture offers full tuning control of all servo loops and is designed for distributed or centralized servo systems. This servo drive utilizes EtherCAT® communication and is commissioned via a USB interface.
