Overview
Description
GXA gearbox series has to be
associated with the powerful Parker ATEX servomotors ranges for use in
hazardous areas. The precision helical gearing design offers smooth and quiet
operation for the most demanding high performance applications. The solid
uncaged needle roller bearings provides maximum contact points to increase
stiffness and generates high output torque.
In addition the unique motor adapter
and bushing module system design allows to obtain a compact structure and a
quick and easy mounting of any ATEX certified Parker motor.
GXA gearboxes offer a compact
motor-gearbox solution optimised to provide the best dynamic performances in
hazardous areas. In combination with Parker ATEX servo motors, they are ideal
for applications requiring high torque and optimum motion quality.
Features:
• ATEX certify
• Low backlash
• High efficiency
• Easy mounting
• Low noise
• Compact structure
• Helical Gear Design
Markets:
Printing & Marking Equipment
Packaging Machinery
Coatings / Ink / Paint
Industrial Chemical Processing
Pharmaceutical Industries
Plastic Processing
Oil & Gas
Power Generation
Benefits:
Conformance: 2014/34/EU Directive
Classification: II 2 GD c T6
Frame Sizes: 60 - 220mm
Ratio Options: 3:1 - 100:1
Backlash: up to ≤ 3 arc-minutes
Efficiency: up to ≥ 97%
High Input Speeds: up to 10000 RPM
ATEX certification / Combine with the
powerful Parker ATEX servo motor ranges for use in hazardous areas
Easy mounting
Low noise
Compact structure
Helical Gear Design
Applications:
Printing machinery
Paint spray equipments
Plastics machinery
Chemical, petro-chemical
Waste processing plants

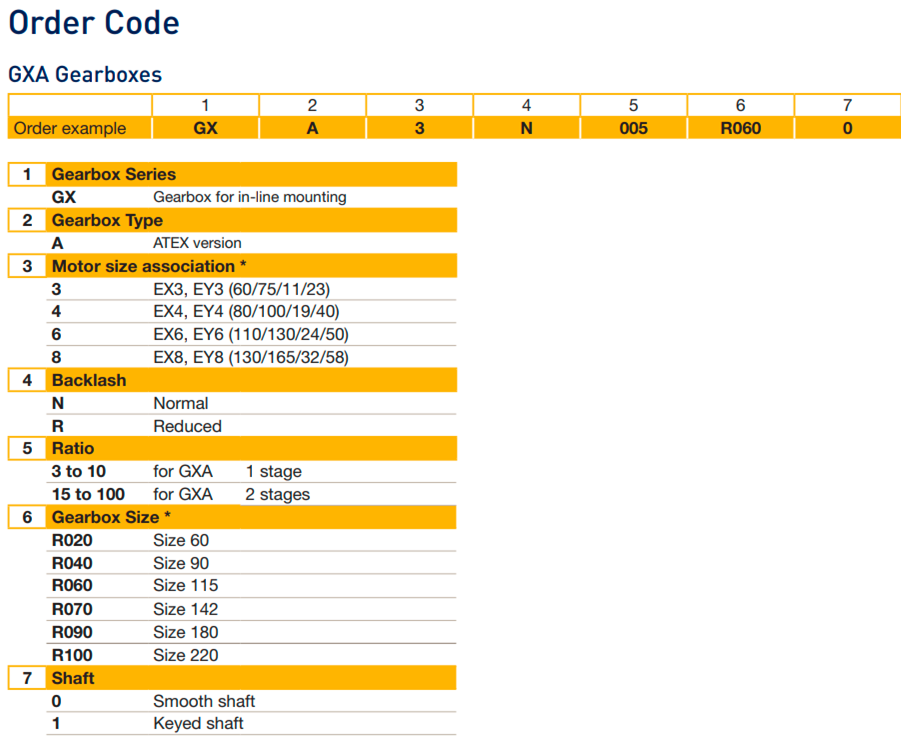

Model:GXA3N005R060, GXA4N005R060, GXA6N005R060, GXA8N005R060
