ATI: Low-Cost Force/Torque Sensor Axia80-M8 (9105-NET-Axia80-M8)

Description

The Axia80 is a high-performance, low-cost, six-axis sensor. It offers the highest resolution, accuracy, and stiffness available to provide a sense of touch to your application. With electronics packaged on-board, the sensor is extremely robust and has a minimal footprint. The Axia80 is available with Ethernet, EtherCAT, or Serial communication and features a high signal-to-noise ratio and high overload protection.

Product Features

• Outstanding Reliability: Provides precise and repeatable measurements in demanding applications.
• Overload Protection: Extremely rugged and durable, all transducer models can withstand high overload.
• High Signal-to-Noise Ratio: Provides high resolution with low noise.
• High Accuracy: Better than 2% full scale across all axes and calibrations.

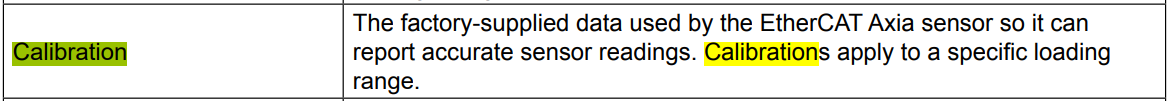

• Dual Calibrations: Comes with two programmed calibration ranges with the ability to switch dynamically.

Output Options

• Communication: Ethernet, EtherCAT, or Serial RS-485
• Supply Voltage: 12-30V DC
• System Resolution: 16 bit
• Sample Rate: Up to 8 kHz
• Operating Temperature: 0-65º C
• Ingress Rating: IP64 Protection from dust and splashing water



Axia80 Series

Product Advantages:

• A high-performance, low-cost sensor that offers the highest resolution, accuracy, and stiffness available to provide a sense of touch to your application.
• All of the electronics are built into the transducer body, which keeps the cost down and the footprint smaller. Like all of ATI's F/T products, the Axia80 features superior quality and robustness.
• Available with Ethernet, EtherCAT, and Serial communication.
• Extremely-High Strength: Precision-machined from high-strength aircraft aluminum. Maximum allowable single-axis overload values of 5.0 to 12.5 times rated capacities.
• High Signal-to-Noise Ratio: Strain gages provide exceptional resolution and accuracies better than 2% full scale across all axes and calibrations.
• IP64 Protection from dust and splashing water.

Typical Applications:

• Electronic assembly
• Polishing
• Real-time force control
• Product testing
• Pick and place
• Collaborative robotics
