ATI:MTA6 Power Module, Master Potted 9120-MTA6-M
ATI:MTA6 Power Module, Master Potted 9120-MTA6-M

7-pins. 45 Amp, 500VAC/700VDC. Safety ground contact provided to pass ground through Master to Tool. Module housings are grounded

Price: (Members Only)


Availability: Usually Ships in 6 to 8 Weeks
Order #: 9120-MTA6-M
Qty:

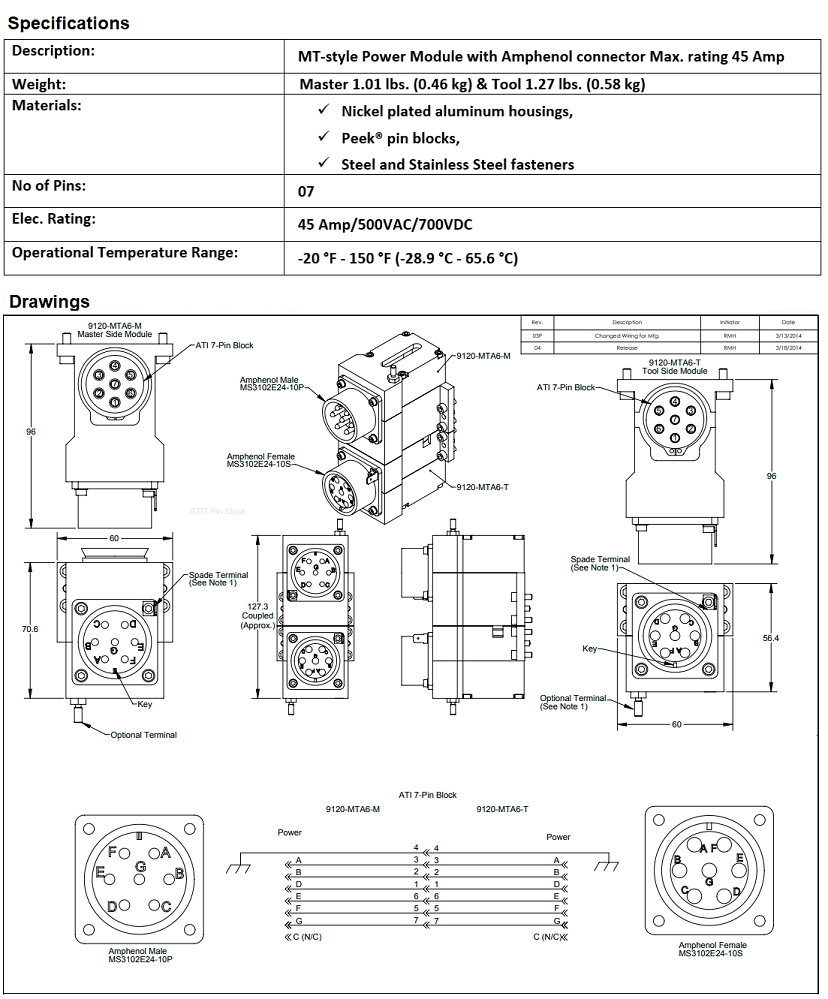

Description Specifications and Drawings


ATI:MTA6 Power Module, Master Potted 9120-MTA6-M
Product Advantages
7-pins.
45 Amp, 500VAC/700VDC.
Safety ground contact provided to pass ground through Master to Tool. Module housings are grounded.
Amphenol MS-style connectors for interfacing on the Master and Tool modules.
Fluid-resistant seal on contacts.
Module should be mounted to a Tool Changer, QC-100 or larger, to handle maximum rated current and 100% duty cycle without overheating.
Allowable maximum ambient temperature under conditions of maximum current is 100 degrees F.
Master module may extend high above Master plate. Adjust robot interface plate as needed to compensate.
Tool module may extend below Tool plate.
Available with Viton seals
Compatible QC Models

QC Model

Side

Notes

Adapter Plate Required

QC-110

Flats A, B

No

QC-160

Flats A, B

No

QC-510

Flats B, D

No
