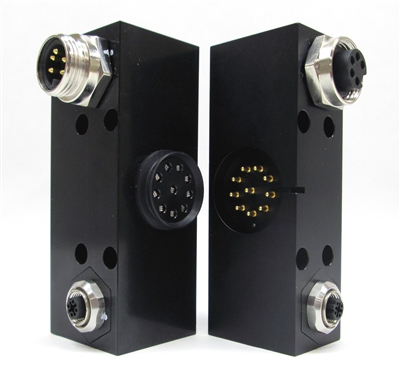

ATI: PROFINET Pass ThroughTP Tool Module 9120-TP-T
ATI:PROFINET Pass ThroughTP Tool Module 9120-TP-T

PROFINET Circuit - 2 Amp/60VAC max. Auxiliary Power Circuit - 5 Amp/600VAC max.Industry-standard M12, 4-pin D-coded connector for PROFINET interface.

Price: (Members Only)


Availability: Usually Ships in 6 to 8 Weeks
Order #: 9120-TP-T
Qty:

Description Specifications and Drawings


ATI: PROFINET Pass ThroughTP Tool Module 9120-TP-T
Product Advantages
· Electrical module to pass PROFINET signals along with Auxiliary Power connections.
· Industry-standard M12, 4-pin D-coded connector for PROFINET interface.
· 5-pin Mini connector for Auxiliary power.
· NOTE: TP module may extend past the Master/Tool body on some QCs. Please consult an ATI Account Manager for more information.
· NOTE: When used on the QC-110, there is a slight possibility that the air supply fittings will hit the edge of the TP module.

Compatible QC Models

QC Model

Side

Notes

Adapter Plate Required

QC-29

Flat B
Apps Approval for Flats A, C (blocks ports)

No

QC-46

Flats B, C2,D

No

QC-50

T

Flats A, B, C, D
Modules will overhang each flat and block (1) M5 air port, and interferes with adjacent module flat.

Use of JJ30 gives access to one more port.

Yes

QC-76

Flats A, B

No

QC-110

Flats A, B

No

QC-160

Flats A,B (On Flat B, Position 3, Port 5 is restricted). TE/TP modules cannot be mounted adjacent to other modules on same flat without special adapter.

No

MC-36R

Flats A, B

No

Support Links

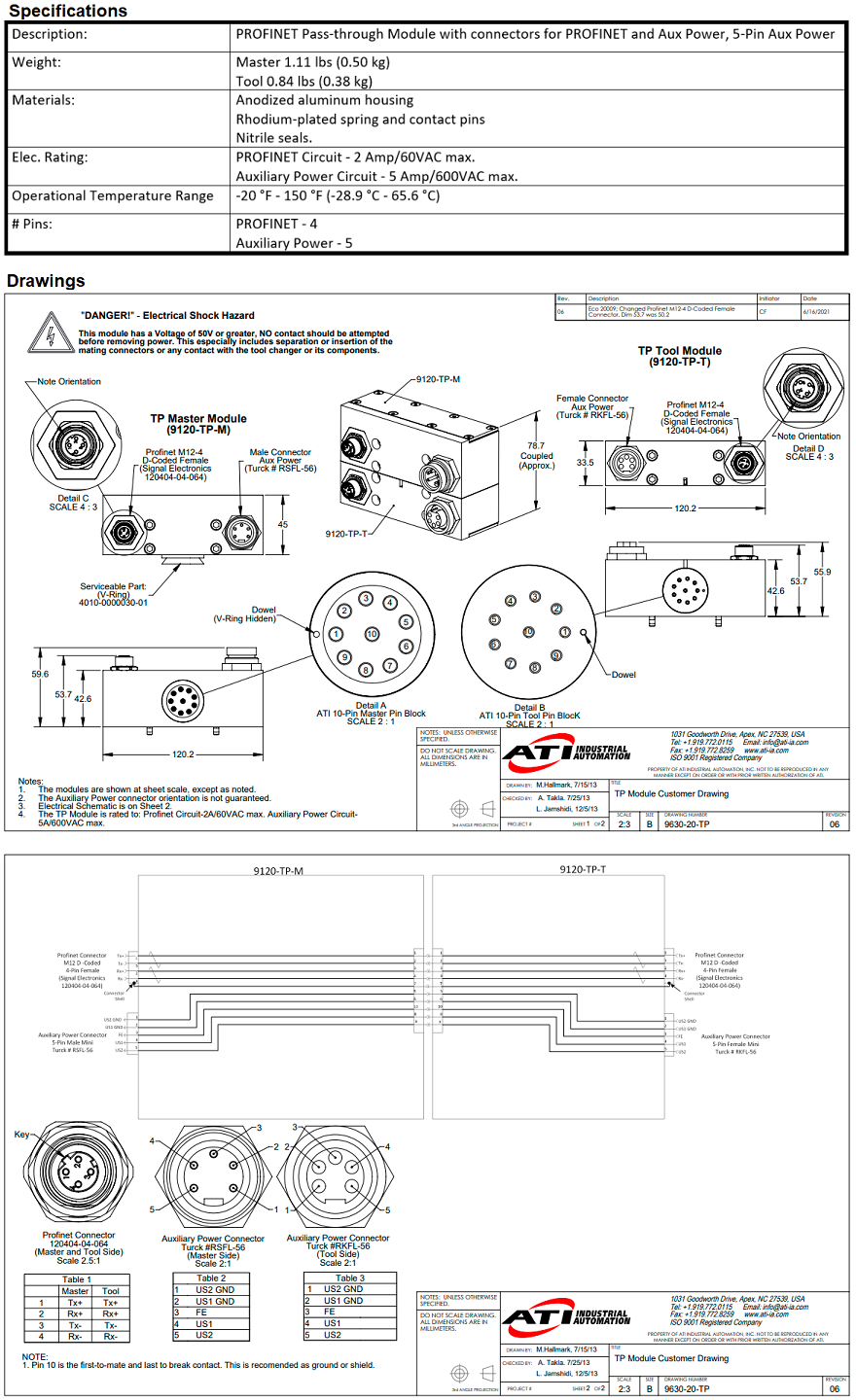

Drawings
