ATI: Pneumatic Master Module 9121-AM2-M

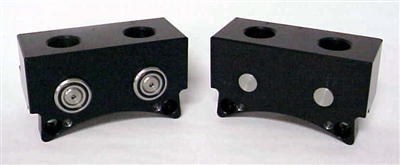

ATI: Pneumatic Master Module with (2) ½ G self-sealing 9121-AM2-M

Alternate View
Weight: Master 1.05 lbs (0.48 kg), Tool 0.85 lbs (0.39 kg) Operational Temperature Range:-20 °F - 150 °F (-28.9 °C - 65.6 °C)

Price: (Members Only)


Availability: Usually Ships in 6 to 8 Weeks
Order #: 9121-AM2-M
Qty:

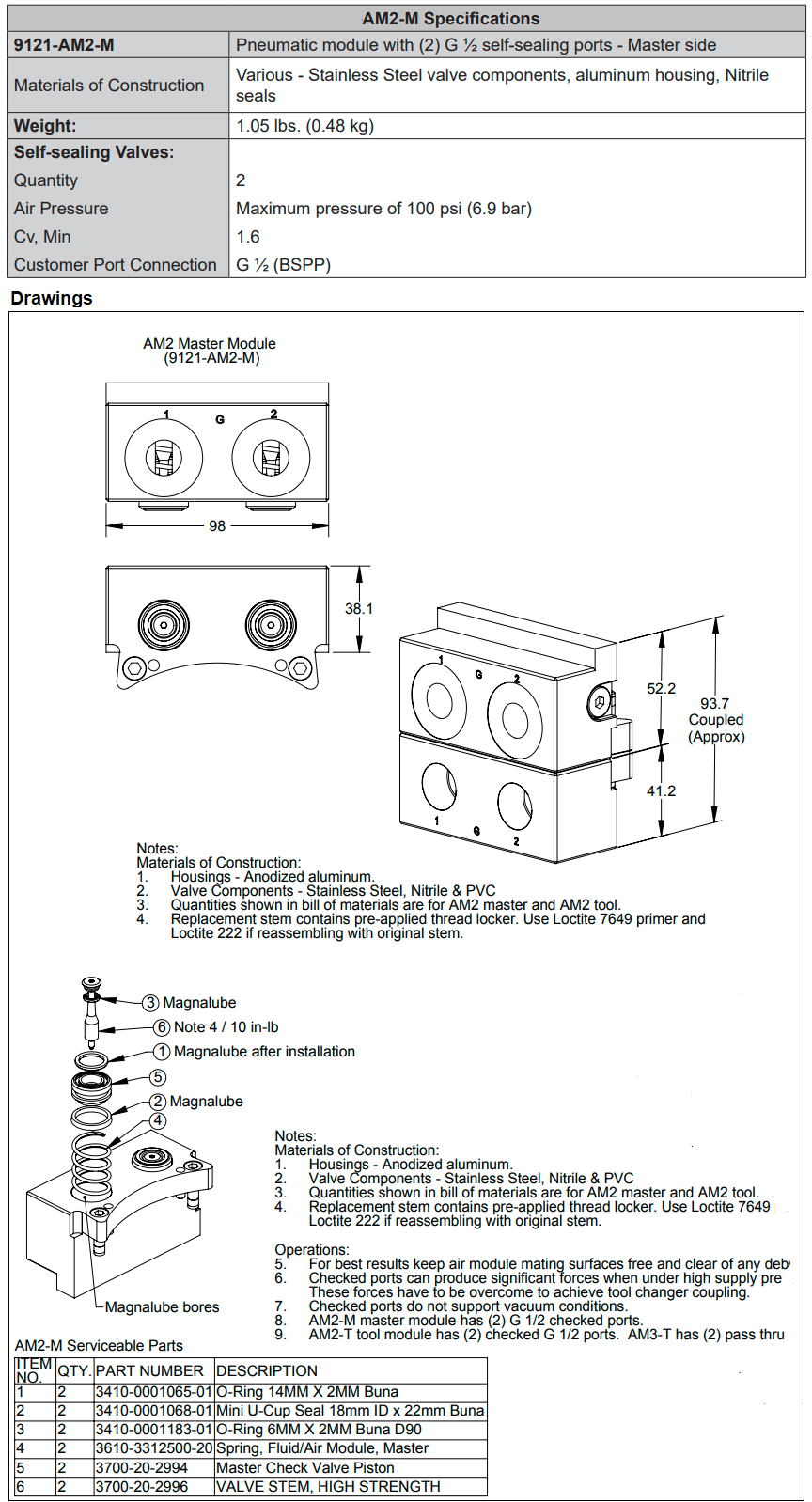

Description Specifications and Drawings


Pneumatic Master Module with (2) ½ G self-sealing 9121-AM2-M
Product Advantages
Provides air service from the Master to the Tool plates.
G 1/2 (BSPP) ports.
(2) Self-sealing ports (Master and Tool side).
100 psi (6.9 bar) maximum.
Not for vacuum service

Description:

(2) G 1/2 (BSPP) Ports, 2 Self-sealing Ports

Cv Rating:

1.6

Weight:

Master 1.05 lbs (0.48 kg)
Tool 0.85 lbs (0.39 kg)

Materials:

Anodized aluminum housing

Stainless steel valve components

Nitrile seals.

Operational Temperature Range

-20 °F - 150 °F (-28.9 °C - 65.6 °C)

Support Links
Manual AM2
Drawing AM2
